In the realm of manufacturing and metalworking, the term Broaching Machine Definition often comes up, referring to a specialized tool used for creating precise shapes and dimensions on metal parts. Broaching machines are essential in industries where high precision and efficiency are paramount, such as automotive, aerospace, and tool-making. This post delves into the intricacies of broaching machines, their types, applications, and the benefits they offer in modern manufacturing.
Understanding Broaching Machines
A broaching machine is a type of machine tool that uses a broach—a tool with a series of cutting edges—to remove material and create a specific shape or profile on a workpiece. The broach is pushed or pulled through the workpiece, progressively removing material with each cutting edge. This process is highly efficient and can achieve very tight tolerances, making it ideal for applications requiring high precision.
Types of Broaching Machines
Broaching machines come in various types, each designed for specific applications. The main types include:
- Horizontal Broaching Machines: These machines operate with the broach moving horizontally. They are commonly used for broaching internal and external shapes on cylindrical workpieces.
- Vertical Broaching Machines: In these machines, the broach moves vertically. They are often used for broaching flat surfaces and are ideal for applications where the workpiece needs to be held in a fixed position.
- Continuous Broaching Machines: These machines are designed for high-volume production and can continuously feed workpieces through the broaching process. They are often used in automated manufacturing lines.
- Push Broaching Machines: These machines push the broach through the workpiece. They are suitable for broaching internal shapes and are often used in tool and die making.

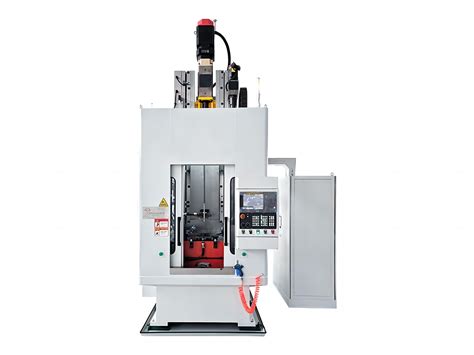

- Pull Broaching Machines: In these machines, the broach is pulled through the workpiece. They are commonly used for broaching external shapes and are ideal for applications requiring high precision.
Applications of Broaching Machines
Broaching machines are used in a wide range of industries due to their ability to create precise shapes and dimensions. Some of the key applications include:
- Automotive Industry: Broaching machines are used to create precise shapes on engine components, transmission parts, and other critical components.
- Aerospace Industry: In aerospace, broaching machines are used to create precise shapes on aircraft components, such as landing gear, engine parts, and structural components.
- Tool and Die Making: Broaching machines are essential in the tool and die industry for creating precise shapes on molds, dies, and other tooling components.
- Medical Industry: Broaching machines are used to create precise shapes on medical devices and implants, ensuring they meet strict quality and precision requirements.
Benefits of Using Broaching Machines
Broaching machines offer several benefits that make them a preferred choice in many manufacturing applications. Some of the key benefits include:
- High Precision: Broaching machines can achieve very tight tolerances, making them ideal for applications requiring high precision.
- Efficiency: The broaching process is highly efficient, allowing for quick and accurate material removal.
- Versatility: Broaching machines can be used to create a wide range of shapes and profiles, making them versatile tools in manufacturing.
- Cost-Effective: Broaching machines can reduce the need for multiple machining operations, lowering production costs.
- Consistency: Broaching machines can produce consistent results, ensuring that each workpiece meets the required specifications.
Key Components of a Broaching Machine
A broaching machine consists of several key components that work together to achieve precise and efficient material removal. These components include:

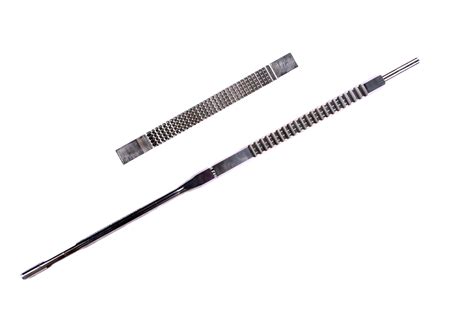

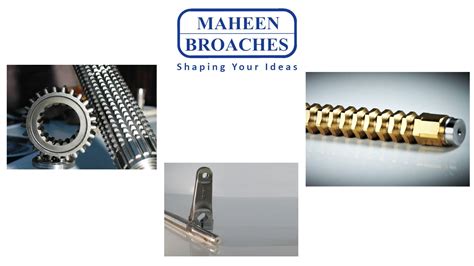

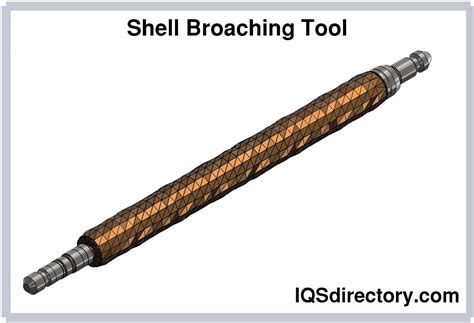

- Broach: The cutting tool with a series of cutting edges that progressively remove material from the workpiece.
- Workholding Device: A device that holds the workpiece in place during the broaching process. This can include fixtures, chucks, or other holding mechanisms.
- Drive System: The mechanism that moves the broach through the workpiece. This can include hydraulic, pneumatic, or mechanical drive systems.
- Control System: The system that controls the movement and operation of the broaching machine. This can include manual controls, CNC controls, or other automated systems.
🔍 Note: The choice of broach and workholding device will depend on the specific application and the material being machined. It is important to select the appropriate components to ensure optimal performance and precision.
Broaching Machine Definition and Process
The Broaching Machine Definition encompasses the entire process of using a broach to create precise shapes and dimensions on a workpiece. The process involves several steps, including:
- Setup: The workpiece is secured in the workholding device, and the broach is positioned correctly.

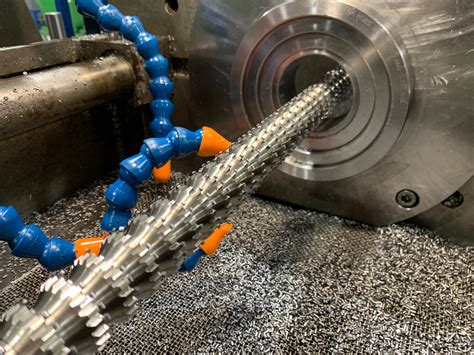

- Broaching: The broach is moved through the workpiece, progressively removing material with each cutting edge.
- Finishing: The workpiece is inspected to ensure it meets the required specifications. Any necessary finishing operations, such as deburring or polishing, are performed.
Broaching machines can be operated manually or automatically, depending on the specific application and production requirements. Manual broaching machines require an operator to control the movement of the broach, while automated broaching machines use CNC controls or other automated systems to control the broaching process.
Broaching Machine Maintenance
Regular maintenance is essential to ensure the optimal performance and longevity of a broaching machine. Some key maintenance tasks include:
- Lubrication: Regularly lubricate moving parts to reduce friction and wear.
- Cleaning: Keep the machine clean to prevent the buildup of debris and contaminants.
- Inspection: Regularly inspect the machine for signs of wear or damage, and replace worn components as needed.
- Calibration: Periodically calibrate the machine to ensure it maintains the required precision and accuracy.
🛠️ Note: Proper maintenance can extend the lifespan of a broaching machine and ensure it continues to produce high-quality parts. Regular inspections and timely repairs are crucial for maintaining optimal performance.
Broaching Machine Safety
Safety is a critical consideration when operating a broaching machine. Some key safety measures include:
- Personal Protective Equipment (PPE): Operators should wear appropriate PPE, including safety glasses, gloves, and ear protection.
- Machine Guards: Ensure that all machine guards are in place and functioning properly to prevent accidents.
- Training: Operators should be properly trained on the safe operation of the broaching machine.
- Emergency Stop: Ensure that an emergency stop button is readily accessible in case of an emergency.
By following these safety measures, operators can minimize the risk of accidents and ensure a safe working environment.
Broaching Machine Selection
Selecting the right broaching machine for a specific application involves considering several factors. These factors include:
- Material: The type of material being machined will affect the choice of broaching machine and broach.
- Shape and Size: The shape and size of the workpiece will determine the type of broaching machine and broach required.
- Precision Requirements: The required precision and tolerances will influence the choice of broaching machine and control system.
- Production Volume: The production volume will affect the choice of broaching machine, with automated machines being more suitable for high-volume production.
By carefully considering these factors, manufacturers can select the most appropriate broaching machine for their specific application.
📏 Note: It is important to consult with a broaching machine expert or manufacturer to ensure the selected machine meets the specific requirements of the application.
Broaching Machine Cost Considerations
The cost of a broaching machine can vary significantly depending on several factors. These factors include:
- Type of Machine: Different types of broaching machines, such as horizontal, vertical, or continuous, have different cost structures.
- Size and Capacity: Larger machines with higher capacity will generally cost more than smaller machines.
- Control System: Machines with advanced control systems, such as CNC controls, will be more expensive than manually operated machines.
- Additional Features: Additional features, such as automated loading and unloading systems, will increase the cost of the machine.
When considering the cost of a broaching machine, it is important to factor in not only the initial purchase price but also the ongoing costs of maintenance, operation, and potential downtime. Investing in a high-quality machine can result in long-term savings and improved productivity.
Broaching Machine Trends and Innovations
The field of broaching machines is continually evolving, with new trends and innovations emerging to enhance performance and efficiency. Some of the key trends and innovations include:
- Automation: The integration of automation and robotics in broaching machines is increasing, allowing for higher production volumes and improved consistency.
- Advanced Materials: The development of new materials for broaches and workholding devices is improving the durability and performance of broaching machines.
- Smart Manufacturing: The use of IoT and data analytics in broaching machines is enabling real-time monitoring and optimization of the broaching process.
- Sustainability: There is a growing focus on sustainability in manufacturing, with broaching machines being designed to reduce energy consumption and waste.
These trends and innovations are driving the evolution of broaching machines, making them more efficient, precise, and sustainable.
🌱 Note: Embracing these trends and innovations can help manufacturers stay competitive and meet the evolving demands of the market.
Broaching Machine Case Studies
To illustrate the practical applications of broaching machines, let's examine a few case studies:
- Automotive Component Manufacturing: A leading automotive manufacturer used a horizontal broaching machine to create precise shapes on engine components. The machine's high precision and efficiency allowed the manufacturer to meet strict quality standards and reduce production costs.
- Aerospace Structural Components: An aerospace company utilized a vertical broaching machine to create precise shapes on structural components. The machine's ability to handle large workpieces and maintain tight tolerances ensured the components met the required specifications.
- Medical Device Production: A medical device manufacturer employed a continuous broaching machine to produce high-volume medical implants. The machine's automated operation and consistent results enabled the manufacturer to meet production demands and ensure product quality.
These case studies demonstrate the versatility and effectiveness of broaching machines in various industries.
Broaching Machine Training and Certification
Proper training and certification are essential for operators to ensure the safe and efficient use of broaching machines. Training programs typically cover:
- Machine Operation: Understanding the basic principles of broaching machine operation, including setup, broaching, and finishing.
- Safety Procedures: Learning the safety measures and procedures to prevent accidents and ensure a safe working environment.
- Maintenance and Troubleshooting: Gaining knowledge of routine maintenance tasks and troubleshooting common issues.
- Quality Control: Understanding the importance of quality control and how to inspect workpieces for precision and accuracy.
Certification programs provide operators with the necessary skills and knowledge to operate broaching machines effectively and safely. Many manufacturers offer training and certification programs to ensure their operators are well-prepared.
📚 Note: Continuous training and certification are crucial for operators to stay updated with the latest technologies and best practices in broaching machine operation.
Broaching Machine Future Outlook
The future of broaching machines looks promising, with advancements in technology and increasing demand for high-precision manufacturing. Some key areas of focus include:
- Advanced Automation: The integration of advanced automation and robotics will continue to enhance the efficiency and precision of broaching machines.
- Smart Manufacturing: The use of IoT and data analytics will enable real-time monitoring and optimization of the broaching process, leading to improved productivity and quality.
- Sustainable Practices: There will be a growing emphasis on sustainable manufacturing practices, with broaching machines designed to reduce energy consumption and waste.
- Customization: The demand for customized broaching solutions will increase, allowing manufacturers to tailor machines to specific applications and requirements.
As these trends continue to evolve, broaching machines will play an even more critical role in modern manufacturing, enabling higher precision, efficiency, and sustainability.
Broaching machines are indispensable tools in modern manufacturing, offering high precision, efficiency, and versatility. From automotive and aerospace to tool and die making and medical device production, broaching machines are used across various industries to create precise shapes and dimensions on metal parts. By understanding the types, applications, benefits, and maintenance requirements of broaching machines, manufacturers can leverage these tools to enhance their production processes and achieve superior results.
