Creating a Box Graph Excel is a powerful way to visualize data distribution and identify outliers. This type of graph, also known as a box plot, provides a comprehensive summary of a dataset, including the median, quartiles, and potential outliers. Whether you are a data analyst, a student, or a professional, understanding how to create and interpret a Box Graph Excel can significantly enhance your data analysis skills.

Table of Contents

Understanding the Box Graph Excel

A Box Graph Excel, or box plot, is a standardized way of displaying the distribution of data based on a five-number summary: the minimum, first quartile (Q1), median, third quartile (Q3), and maximum. The box plot is particularly useful for comparing distributions across different datasets or groups.

Components of a Box Graph Excel

The key components of a box plot include:

Minimum: The smallest value in the dataset.
First Quartile (Q1): The median of the lower half of the data.
Median: The middle value of the dataset.
Third Quartile (Q3): The median of the upper half of the data.
Maximum: The largest value in the dataset.
Whiskers: Lines extending from the box to the minimum and maximum values, excluding outliers.
Outliers: Data points that fall outside the whiskers, typically defined as values that are 1.5 times the interquartile range (IQR) below Q1 or above Q3.

Creating a Box Graph Excel

Creating a Box Graph Excel in Microsoft Excel is straightforward. Follow these steps to generate a box plot:

Step 1: Prepare Your Data

Ensure your data is organized in a single column or row. For example, if you have a dataset of test scores, list them in a single column.

Step 2: Select Your Data

Highlight the range of cells containing your data. For instance, if your data is in cells A1 to A10, select this range.

Step 3: Insert a Box Graph Excel

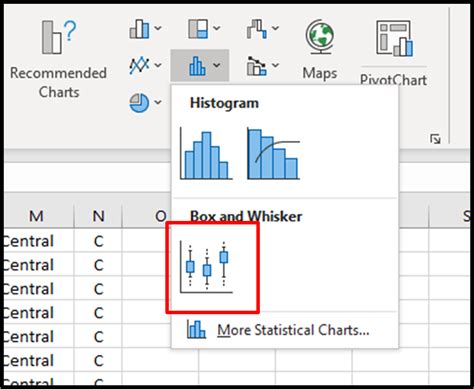

Go to the Insert tab on the ribbon. In the Charts group, click on the Insert Statistic Chart icon. From the dropdown menu, select Box and Whisker.

Step 4: Customize Your Box Graph Excel

Once the box plot is inserted, you can customize it to better suit your needs. Right-click on the chart and select Format Data Series to adjust the colors, line styles, and other visual elements. You can also add chart titles, axis labels, and legends to make your box plot more informative.

Interpreting a Box Graph Excel

Interpreting a Box Graph Excel involves understanding the distribution of your data and identifying any outliers. Here are some key points to consider:

Median: The line inside the box represents the median, which is the middle value of your dataset.
Interquartile Range (IQR): The box itself represents the IQR, which is the range between Q1 and Q3. This range contains the middle 50% of your data.
Whiskers: The lines extending from the box represent the whiskers, which show the range of the data excluding outliers.
Outliers: Individual data points that fall outside the whiskers are considered outliers and are typically plotted as separate points.

Comparing Multiple Datasets with Box Graph Excel

One of the strengths of a Box Graph Excel is its ability to compare multiple datasets side by side. This is particularly useful in statistical analysis and quality control. To compare multiple datasets:

Organize your data in columns, with each column representing a different dataset.
Select the entire range of data, including all columns.
Follow the steps to insert a Box Graph Excel as described earlier.

Excel will generate a box plot for each dataset, allowing you to visually compare their distributions, medians, and outliers.

Example of a Box Graph Excel

Let’s consider an example where we have test scores from three different classes. We want to compare the performance of these classes using a Box Graph Excel.

Class A	Class B	Class C
85	78	92
90	82	88
78	85	90
88	79	85
92	88	95

By following the steps to create a Box Graph Excel, you can visualize the distribution of test scores for each class. This will help you identify which class has the highest median score, the most consistent performance, and any potential outliers.

📝 Note: Ensure that your data is clean and free of errors before creating a box plot. Incorrect data can lead to misleading interpretations.

Box Graph Excel is a versatile tool that can be used in various fields, including education, healthcare, finance, and more. By mastering the creation and interpretation of box plots, you can gain valuable insights into your data and make informed decisions.

In summary, a Box Graph Excel is an essential tool for data visualization and analysis. It provides a clear and concise summary of a dataset, making it easier to identify trends, outliers, and compare different groups. By following the steps outlined in this post, you can create and interpret box plots with confidence, enhancing your data analysis skills and gaining deeper insights into your data.
