Boolean Logic Rules

Boolean logic is a fundamental concept in computer science and mathematics, serving as the backbone for digital circuits, programming, and data analysis. Understanding Boolean Logic Rules is crucial for anyone working in these fields, as it provides the framework for making decisions and controlling the flow of information. This post will delve into the intricacies of Boolean logic, exploring its rules, applications, and practical examples.

Understanding Boolean Logic

Boolean logic, named after the mathematician George Boole, deals with binary variables—true or false, 1 or 0. These variables are manipulated using logical operators to produce outcomes. The primary operators in Boolean logic are AND, OR, NOT, XOR, and NAND. Each of these operators follows specific Boolean Logic Rules that dictate how they interact with binary values.

Basic Boolean Operators

Let’s start by examining the basic Boolean operators and their corresponding Boolean Logic Rules.

AND Operator

The AND operator returns true only if both operands are true. In other words, the output is true if and only if all inputs are true. The truth table for the AND operator is as follows:

A	B	A AND B
0	0	0
0	1	0
1	0	0
1	1	1

For example, if A is true and B is true, A AND B will be true. If either A or B is false, the result will be false.

OR Operator

The OR operator returns true if at least one of the operands is true. The output is false only if both inputs are false. The truth table for the OR operator is as follows:

A	B	A OR B
0	0	0
0	1	1
1	0	1
1	1	1

For instance, if A is true or B is true, A OR B will be true. Only if both A and B are false will the result be false.

NOT Operator

The NOT operator inverts the value of a single operand. If the operand is true, the output is false, and vice versa. The truth table for the NOT operator is as follows:

A	NOT A
0	1
1	0

For example, if A is true, NOT A will be false. If A is false, NOT A will be true.

XOR Operator

The XOR (exclusive OR) operator returns true if the operands are different. If both operands are the same, the output is false. The truth table for the XOR operator is as follows:

A	B	A XOR B
0	0	0
0	1	1
1	0	1
1	1	0

For instance, if A is true and B is false, A XOR B will be true. If both A and B are true or both are false, the result will be false.

NAND Operator

The NAND operator is the negation of the AND operator. It returns false only if both operands are true. The truth table for the NAND operator is as follows:

A	B	A NAND B
0	0	1
0	1	1
1	0	1
1	1	0

For example, if A is true and B is true, A NAND B will be false. If either A or B is false, the result will be true.

Applications of Boolean Logic

Boolean logic is not just a theoretical concept; it has numerous practical applications in various fields. Some of the key areas where Boolean Logic Rules are applied include:

Digital Circuits

In digital circuits, Boolean logic is used to design and implement logic gates, which are the building blocks of digital systems. Logic gates perform basic operations such as AND, OR, NOT, XOR, and NAND, following the Boolean Logic Rules. These gates are combined to create more complex circuits that perform specific functions, such as arithmetic operations, data storage, and signal processing.

Programming

In programming, Boolean logic is essential for controlling the flow of a program. Conditional statements, loops, and decision-making processes all rely on Boolean logic to determine the execution path. For example, an if-else statement uses Boolean expressions to evaluate conditions and execute corresponding blocks of code. Similarly, loops use Boolean conditions to determine whether to continue iterating.

Data Analysis

In data analysis, Boolean logic is used to filter and manipulate data. Boolean expressions are employed to create queries that retrieve specific data from databases. For instance, a SQL query might use Boolean logic to filter records based on certain criteria, such as selecting all records where a particular field is true or false. Additionally, Boolean logic is used in data visualization to create conditional formatting and dynamic charts.

Artificial Intelligence

In artificial intelligence, Boolean logic plays a crucial role in decision-making algorithms and rule-based systems. AI models often use Boolean logic to evaluate conditions and make decisions based on input data. For example, a rule-based expert system might use Boolean logic to determine the next action based on a set of predefined rules. Similarly, machine learning algorithms use Boolean logic to evaluate hypotheses and make predictions.

Practical Examples of Boolean Logic

To better understand how Boolean Logic Rules are applied in practice, let’s consider a few examples.

Example 1: Traffic Light Control

Consider a simple traffic light control system that uses Boolean logic to manage the sequence of lights. The system has three states: red, yellow, and green. The transitions between these states can be controlled using Boolean logic. For instance, the system might use the following rules:

If the current light is red, the next light should be green.
If the current light is green, the next light should be yellow.
If the current light is yellow, the next light should be red.

These rules can be implemented using Boolean logic to control the sequence of lights. For example, the system might use a variable to represent the current light and update it based on the Boolean conditions.

Example 2: Password Validation

In software development, Boolean logic is often used to validate user input, such as passwords. A common requirement is that a password must meet certain criteria, such as containing at least one uppercase letter, one lowercase letter, one digit, and one special character. These criteria can be checked using Boolean logic. For instance, the following Boolean expressions might be used:

Contains uppercase letter: password.contains(uppercase)
Contains lowercase letter: password.contains(lowercase)
Contains digit: password.contains(digit)
Contains special character: password.contains(special)

These expressions can be combined using Boolean operators to ensure that the password meets all the criteria. For example, the following expression checks if the password contains at least one of each required character type:

password.contains(uppercase) AND password.contains(lowercase) AND password.contains(digit) AND password.contains(special)

If this expression evaluates to true, the password is valid; otherwise, it is invalid.

Example 3: Data Filtering

In data analysis, Boolean logic is used to filter data based on specific criteria. For example, consider a dataset of customer records that includes fields such as age, gender, and purchase history. A data analyst might want to filter the records to find customers who are over 30 years old, female, and have made at least one purchase in the last year. This can be achieved using Boolean logic. For instance, the following Boolean expression might be used:

age > 30 AND gender = 'female' AND purchase_history.contains(last_year)

This expression filters the dataset to include only the records that meet all the specified criteria. The resulting dataset can then be used for further analysis or reporting.

💡 Note: Boolean logic is a powerful tool for data filtering, but it is important to ensure that the criteria are correctly defined to avoid excluding relevant data or including irrelevant data.

Advanced Boolean Logic

While the basic Boolean operators are sufficient for many applications, there are more advanced concepts and operators that can be used to handle complex logic. Some of these advanced topics include:

De Morgan’s Laws

De Morgan’s laws are a set of rules that describe how logical operators can be distributed over each other. These laws are named after the mathematician Augustus De Morgan and are fundamental in Boolean algebra. The two main laws are:

NOT (A AND B) = (NOT A) OR (NOT B)
NOT (A OR B) = (NOT A) AND (NOT B)

These laws allow for the simplification of complex Boolean expressions and are often used in digital circuit design and programming.

Karnaugh Maps

A Karnaugh map (K-map) is a graphical tool used to simplify Boolean expressions. It is particularly useful for minimizing the number of logic gates required to implement a given Boolean function. A K-map consists of a grid of cells, each representing a possible combination of input variables. The cells are filled with the corresponding output values, and the map is used to identify patterns and simplify the expression.

For example, consider the Boolean expression A AND B OR C. The K-map for this expression would look like this:

	A	B
C	1	1
NOT C	0	0

By analyzing the K-map, it is possible to simplify the expression to a more efficient form.

Boolean Algebra

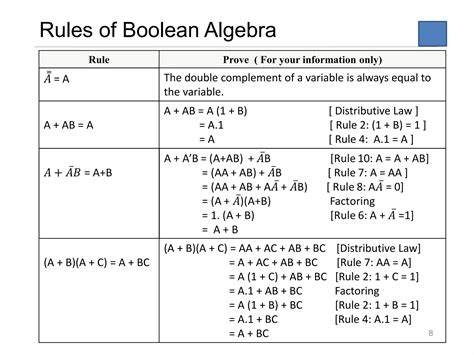

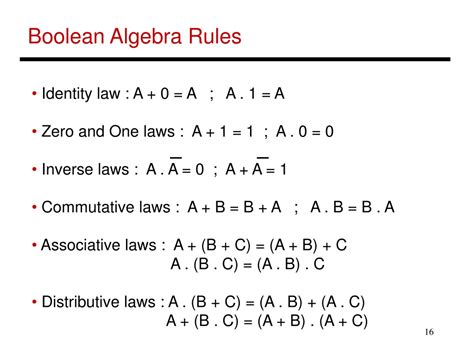

Boolean algebra is a branch of algebra that deals with Boolean values and logical operations. It provides a formal framework for manipulating Boolean expressions and proving their equivalence. Boolean algebra includes axioms and theorems that describe the properties of Boolean operators and their interactions. Some of the key properties include:

Commutativity: A AND B = B AND A, A OR B = B OR A
Associativity: (A AND B) AND C = A AND (B AND C), (A OR B) OR C = A OR (B OR C)
Distributivity: A AND (B OR C) = (A AND B) OR (A AND C), A OR (B AND C) = (A OR B) AND (A OR C)
Idempotence: A AND A = A, A OR A = A
Absorption: A AND (A OR B) = A, A OR (A AND B) = A

These properties can be used to simplify and optimize Boolean expressions, making them more efficient and easier to implement.

Conclusion

Boolean logic is a fundamental concept that underpins many areas of computer science and mathematics. Understanding Boolean Logic Rules is essential for designing digital circuits, writing efficient code, analyzing data, and developing intelligent systems. By mastering the basic and advanced concepts of Boolean logic, individuals can enhance their problem-solving skills and create more effective solutions. Whether you are a student, a programmer, or a data analyst, a solid grasp of Boolean logic will serve you well in your endeavors.
