In the world of electronics and electrical engineering, the term "Bobinas" is often encountered, particularly when dealing with transformers, inductors, and other components that involve coils of wire. Understanding Bobinas in English is crucial for anyone working in these fields, as it helps in designing, manufacturing, and troubleshooting various electrical devices. This post will delve into the intricacies of Bobinas, their applications, and the principles behind their operation.
What are Bobinas?
Bobinas, or coils in English, are essential components in many electrical and electronic devices. They consist of a conductor, usually a wire, wound into a spiral or helical shape. The primary function of a Bobina is to store energy in the form of a magnetic field when an electric current passes through it. This stored energy can then be released back into the circuit, making Bobinas indispensable in various applications.
Types of Bobinas
Bobinas come in different types, each designed for specific purposes. The most common types include:
- Air-Core Bobinas: These Bobinas do not have a magnetic core and are used in applications where a high-frequency response is required.
- Iron-Core Bobinas: These Bobinas have a core made of iron or other ferromagnetic materials, which increases their inductance and efficiency.
- Ferrite-Core Bobinas: These Bobinas use a ferrite core, which is a ceramic material with high magnetic permeability. They are commonly used in high-frequency applications.

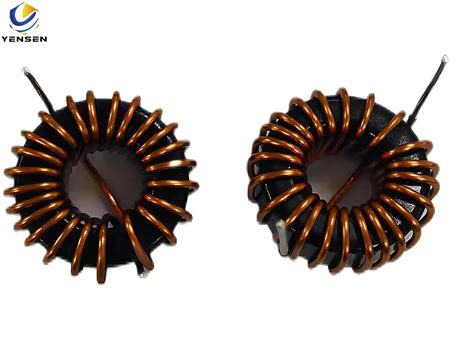

- Toroidal Bobinas: These Bobinas have a doughnut-shaped core, which provides a more uniform magnetic field and reduces losses.
Applications of Bobinas
Bobinas are used in a wide range of applications, from simple electronic circuits to complex industrial systems. Some of the most common applications include:
- Transformers: Bobinas are the core components of transformers, which are used to step up or step down voltage levels in electrical circuits.
- Inductors: Bobinas act as inductors in filters and oscillators, where they help in controlling the flow of current and voltage.
- Motors and Generators: Bobinas are used in the windings of electric motors and generators, where they convert electrical energy into mechanical energy and vice versa.
- Sensors and Relays: Bobinas are used in various sensors and relays to detect changes in magnetic fields or to control electrical circuits.
Principles of Operation
The operation of Bobinas is based on the principles of electromagnetism. When an electric current flows through a conductor, it creates a magnetic field around it. By winding the conductor into a coil, the magnetic field is intensified, and the inductance of the coil increases. The inductance (L) of a Bobina is given by the formula:
L = (N^2 * μ * A) / l
Where:
- N is the number of turns in the coil
- μ is the magnetic permeability of the core material
- A is the cross-sectional area of the core
- l is the length of the core
When the current through the Bobina changes, the magnetic field also changes, inducing a voltage across the coil. This induced voltage (V) is given by the formula:
V = L * (dI/dt)
Where dI/dt is the rate of change of current.
Design Considerations
Designing Bobinas involves several considerations to ensure optimal performance. Some of the key factors to consider include:
- Core Material: The choice of core material affects the inductance and efficiency of the Bobina. Ferromagnetic materials like iron and ferrite are commonly used for their high magnetic permeability.
- Number of Turns: The number of turns in the coil determines the inductance. More turns result in higher inductance but also increase the resistance and losses.
- Wire Gauge: The gauge of the wire affects the resistance and current-carrying capacity of the Bobina. Thicker wires have lower resistance but require more space.
- Coil Shape: The shape of the coil, whether it is cylindrical, toroidal, or planar, affects the magnetic field distribution and losses.
Manufacturing Process
The manufacturing process of Bobinas involves several steps, including:
- Core Preparation: The core material is prepared by cutting it to the desired shape and size. For toroidal Bobinas, the core is typically made from a continuous ring of ferrite or other magnetic material.
- Winding: The wire is wound around the core using a winding machine. The number of turns and the tension of the wire are carefully controlled to ensure consistent performance.
- Insulation: The wound coil is insulated to prevent short circuits and electrical breakdown. Common insulation materials include enamel, varnish, and tape.
- Termination: The ends of the wire are terminated with connectors or leads, allowing the Bobina to be connected to the circuit.
🔧 Note: The manufacturing process may vary depending on the type and application of the Bobina. Some Bobinas may require additional steps, such as impregnation with resin to improve mechanical strength and thermal conductivity.
Testing and Quality Control
Testing and quality control are crucial steps in the production of Bobinas to ensure they meet the required specifications. Common tests include:
- Inductance Measurement: The inductance of the Bobina is measured using an LCR meter to ensure it falls within the specified range.
- Resistance Measurement: The resistance of the wire is measured to ensure it does not exceed the maximum allowable value.
- Insulation Resistance: The insulation resistance is measured to ensure there are no short circuits or electrical breakdowns.
- Temperature Rise: The temperature rise of the Bobina is measured under load conditions to ensure it does not exceed the maximum allowable temperature.
Common Issues and Troubleshooting
Bobinas can encounter various issues during operation, which may require troubleshooting. Some common problems and their solutions include:
- Overheating: Overheating can be caused by excessive current, poor ventilation, or high ambient temperature. Solutions include reducing the current, improving ventilation, or using a Bobina with a higher current rating.
- Short Circuits: Short circuits can occur due to damaged insulation or improper wiring. Solutions include inspecting the insulation, repairing any damage, and ensuring proper wiring.
- Reduced Inductance: Reduced inductance can be caused by a broken wire or a damaged core. Solutions include inspecting the wire for breaks and checking the core for damage.
🛠️ Note: Regular maintenance and inspection of Bobinas can help prevent many of these issues and ensure reliable operation.
Future Trends in Bobinas Technology
The technology of Bobinas is continually evolving, driven by advancements in materials science and manufacturing techniques. Some of the future trends in Bobinas technology include:
- Advanced Materials: The development of new magnetic materials with higher permeability and lower losses will enable the creation of more efficient and compact Bobinas.
- 3D Printing: 3D printing technology can be used to manufacture complex Bobina shapes and geometries, allowing for greater design flexibility and customization.
- Smart Bobinas: The integration of sensors and microcontrollers into Bobinas will enable real-time monitoring and control, improving their performance and reliability.
In conclusion, Bobinas play a vital role in various electrical and electronic devices, from simple circuits to complex industrial systems. Understanding the principles, types, applications, and design considerations of Bobinas is essential for anyone working in these fields. By staying informed about the latest trends and advancements in Bobinas technology, engineers and technicians can continue to innovate and improve the performance of electrical devices.
