In the world of mechanical advantage, few tools are as versatile and effective as the block and tackle. This simple yet powerful system has been used for centuries to lift heavy objects, hoist sails, and perform a variety of tasks that would be impossible with human strength alone. Whether you're a sailor, a construction worker, or a DIY enthusiast, understanding the principles and applications of a block and tackle can greatly enhance your capabilities.
Understanding the Block and Tackle
A block and tackle is a system of pulleys and ropes used to lift or move heavy objects. The basic principle behind a block and tackle is to distribute the weight of the load over multiple segments of the rope, thereby reducing the amount of force required to lift it. This mechanical advantage is what makes the block and tackle such a valuable tool.
The system consists of two main components:
- Blocks: These are the pulleys that the rope runs through. They can be fixed or movable, depending on the configuration.
- Tackle: This refers to the rope or cable that runs through the pulleys. The tackle is what you pull on to lift the load.
Types of Block and Tackle Systems
There are several types of block and tackle systems, each designed for specific applications. The most common types include:
- Single Purchase: This is the simplest form of block and tackle, consisting of one fixed pulley and one movable pulley. It provides a mechanical advantage of 2:1.
- Double Purchase: This system includes two fixed pulleys and two movable pulleys, providing a mechanical advantage of 4:1.
- Triple Purchase: With three fixed pulleys and three movable pulleys, this system offers a mechanical advantage of 6:1.
- Gun Tackle: This is a specialized system used in sailing, featuring a single fixed pulley and a single movable pulley, providing a mechanical advantage of 2:1.
Calculating Mechanical Advantage

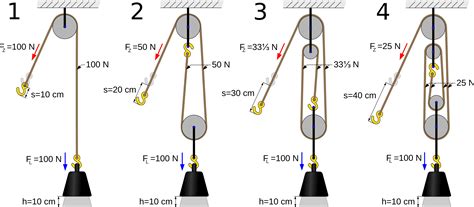

The mechanical advantage of a block and tackle system is determined by the number of rope segments supporting the load. The formula to calculate the mechanical advantage (MA) is:
MA = Number of Supporting Segments
For example, in a single purchase system, there are two supporting segments, so the mechanical advantage is 2:1. In a double purchase system, there are four supporting segments, so the mechanical advantage is 4:1.
Here is a table illustrating the mechanical advantage for different types of block and tackle systems:
| Type of Block and Tackle | Number of Supporting Segments | Mechanical Advantage |
|---|---|---|
| Single Purchase | 2 | 2:1 |
| Double Purchase | 4 | 4:1 |
| Triple Purchase | 6 | 6:1 |
| Gun Tackle | 2 | 2:1 |
Applications of Block and Tackle
The versatility of the block and tackle makes it suitable for a wide range of applications. Some of the most common uses include:
- Sailing: Block and tackle systems are essential for hoisting sails, adjusting rigging, and controlling various lines on a boat.
- Construction: In construction, block and tackle systems are used to lift heavy materials, such as beams, pipes, and machinery.
- Theater: In theater productions, block and tackle systems are used to raise and lower sets, curtains, and lighting equipment.
- DIY Projects: For home improvement projects, a block and tackle can be used to lift heavy objects, such as appliances or furniture.
Safety Considerations
While the block and tackle is a powerful tool, it is essential to use it safely to avoid injuries and accidents. Here are some important safety considerations:
- Inspect Equipment: Before using a block and tackle, inspect the pulleys and rope for any signs of wear or damage.
- Secure the Load: Ensure that the load is securely attached to the tackle to prevent it from slipping or falling.
- Use Proper Technique: Always pull the rope in a straight line and avoid sudden jerks or movements.
- Avoid Overloading: Do not exceed the weight limit of the block and tackle system to prevent equipment failure.
🛑 Note: Always wear appropriate safety gear, such as gloves and safety glasses, when operating a block and tackle.
Maintenance and Care
To ensure the longevity and reliability of your block and tackle system, regular maintenance and care are essential. Here are some tips for maintaining your equipment:
- Clean Regularly: Keep the pulleys and rope clean and free of debris to prevent wear and tear.
- Lubricate Pulleys: Apply a suitable lubricant to the pulleys to reduce friction and ensure smooth operation.
- Store Properly: When not in use, store the block and tackle in a dry, cool place to prevent rust and damage.
- Inspect Regularly: Regularly inspect the rope for signs of wear, such as fraying or kinks, and replace it if necessary.
🛑 Note: Always follow the manufacturer's guidelines for maintenance and care to ensure the safety and longevity of your block and tackle system.
In conclusion, the block and tackle is a versatile and powerful tool that can greatly enhance your ability to lift and move heavy objects. By understanding the principles behind this mechanical system, you can choose the right type of block and tackle for your needs and use it safely and effectively. Whether you’re a sailor, a construction worker, or a DIY enthusiast, the block and tackle is an invaluable tool that can help you tackle even the most challenging tasks.
