Bearing And Race

Understanding the intricacies of bearing and race is crucial for anyone involved in mechanical engineering, automotive maintenance, or industrial machinery. Bearings and races are fundamental components that facilitate smooth and efficient motion in various mechanical systems. This post delves into the types, functions, and maintenance of bearings and races, providing a comprehensive guide for both beginners and experienced professionals.

Understanding Bearings and Races

Bearings are mechanical components designed to reduce friction between moving parts, allowing for smooth rotation or linear motion. They are essential in a wide range of applications, from simple household appliances to complex industrial machinery. The bearing and race system consists of two main parts: the bearing itself and the race, which is the surface on which the bearing rolls or slides.

Types of Bearings

There are several types of bearings, each designed for specific applications and load conditions. The most common types include:

• Ball Bearings: These are the most common type, consisting of a set of balls held in a race. They are used in applications requiring high-speed rotation and low friction.
• Roller Bearings: These use cylindrical rollers instead of balls and are suitable for heavier loads and slower speeds.

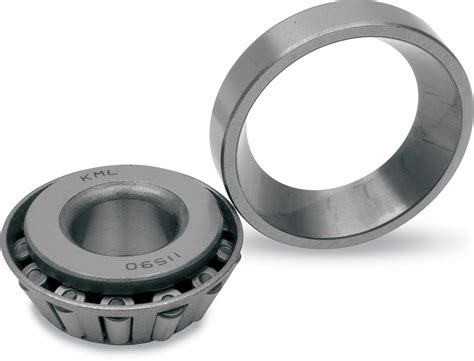

• Tapered Roller Bearings: These have conical rollers and races, making them ideal for applications with combined radial and axial loads.
• Thrust Bearings: These are designed to support axial loads and are commonly used in automotive and industrial applications.
• Needle Bearings: These have long, thin rollers and are used in applications with limited space and high load requirements.

Components of a Bearing

A typical bearing consists of several key components:

• Inner Race: The inner ring that fits onto the shaft and rotates with it.
• Outer Race: The outer ring that is stationary and provides a surface for the rolling elements.
• Rolling Elements: The balls or rollers that reduce friction between the inner and outer races.
• Cage or Retainer: A component that holds the rolling elements in place and ensures they are evenly spaced.
• Seals and Shields: These protect the bearing from contaminants and retain lubricant.

Functions of Bearings and Races

The primary function of a bearing and race system is to reduce friction and support loads. This is achieved through the following mechanisms:

• Load Support: Bearings distribute the load evenly across the rolling elements, preventing excessive wear and tear.
• Friction Reduction: The rolling motion of the bearing elements minimizes friction, allowing for smoother operation and reduced energy consumption.
• Alignment: Bearings help maintain the alignment of rotating shafts, ensuring precise and stable operation.
• Vibration Damping: Properly designed bearings can absorb and dampen vibrations, reducing noise and extending the lifespan of the machinery.

Maintenance of Bearings and Races

Regular maintenance is essential to ensure the longevity and performance of bearings and races. Key maintenance practices include:

• Lubrication: Proper lubrication is crucial for reducing friction and preventing wear. Use the recommended lubricant and follow the manufacturer's guidelines for lubrication intervals.
• Inspection: Regularly inspect bearings for signs of wear, damage, or contamination. Look for cracks, pitting, or excessive play.
• Cleaning: Keep bearings clean to prevent the buildup of dirt and debris, which can cause premature failure. Use appropriate cleaning methods and solvents.
• Alignment: Ensure that the shaft and housing are properly aligned to prevent uneven wear and excessive stress on the bearing.
• Replacement: Replace bearings that show signs of significant wear or damage. Always use high-quality replacement parts to maintain performance.

🔧 Note: Always follow the manufacturer's guidelines for maintenance and replacement to ensure optimal performance and safety.

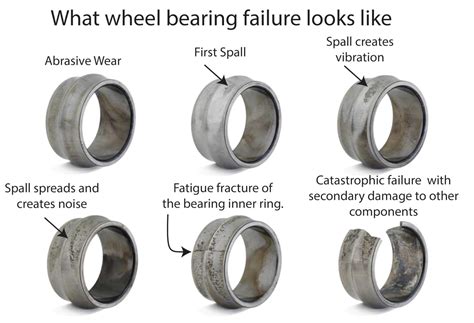

Common Issues with Bearings and Races

Despite proper maintenance, bearings and races can still encounter issues. Some common problems include:

• Excessive Wear: This can be caused by inadequate lubrication, misalignment, or overloading.
• Contamination: Dirt, dust, and other contaminants can enter the bearing, causing abrasion and wear.
• Corrosion: Exposure to moisture or corrosive environments can lead to rust and pitting.
• Fatigue: Repeated loading and unloading can cause fatigue cracks and eventual failure.
• Overheating: Excessive heat can degrade the lubricant and cause bearing failure.

Troubleshooting Bearings and Races

When issues arise, it's important to troubleshoot and address them promptly. Here are some steps to diagnose and resolve common problems:

• Identify Symptoms: Note any unusual noises, vibrations, or changes in performance.
• Inspect the Bearing: Remove the bearing and inspect it for signs of wear, damage, or contamination.
• Check Lubrication: Ensure that the bearing is properly lubricated and that the lubricant is in good condition.
• Verify Alignment: Check that the shaft and housing are properly aligned.
• Replace if Necessary: If the bearing is damaged beyond repair, replace it with a new one.

🛠️ Note: Always use appropriate safety measures when handling and inspecting bearings to avoid injury.

Applications of Bearings and Races

Bearings and races are used in a wide range of applications, including:

• Automotive Industry: Bearings are used in engines, transmissions, and wheel assemblies.
• Industrial Machinery: Bearings support rotating shafts in machinery such as pumps, compressors, and conveyors.
• Aerospace: High-precision bearings are used in aircraft engines, landing gear, and control systems.
• Consumer Electronics: Small bearings are used in devices like hard drives, fans, and motors.
• Medical Equipment: Bearings are used in medical devices such as MRI machines, surgical tools, and prosthetics.

Selection Criteria for Bearings and Races

Choosing the right bearing for a specific application involves considering several factors:

• Load Capacity: Ensure the bearing can handle the expected loads without failing.
• Speed: Select a bearing that can operate at the required speed without overheating or failing.
• Environment: Consider the operating environment, including temperature, humidity, and exposure to contaminants.
• Precision: For applications requiring high precision, choose bearings with tight tolerances.
• Lubrication: Select a bearing that is compatible with the available lubrication methods and materials.

Here is a table summarizing the key selection criteria for different types of bearings:

📊 Note: Always refer to the manufacturer's specifications for detailed information on bearing selection and compatibility.

Innovations in Bearing Technology

Advancements in materials science and manufacturing techniques have led to significant innovations in bearing technology. Some of the latest developments include:

• Ceramic Bearings: These use ceramic materials for the rolling elements, offering higher strength, lower weight, and better corrosion resistance compared to traditional steel bearings.
• Hybrid Bearings: These combine ceramic rolling elements with steel races, providing a balance of performance and cost-effectiveness.
• Self-Lubricating Bearings: These bearings have built-in lubrication systems that reduce the need for external lubrication, making them ideal for applications with limited access.
• Smart Bearings: Equipped with sensors and monitoring systems, these bearings can provide real-time data on performance, wear, and potential failures.
• Nanotechnology: The use of nanotechnology in bearing materials can enhance durability, reduce friction, and improve overall performance.

These innovations are driving the development of more efficient, durable, and reliable bearing and race systems, opening up new possibilities for various industries.

In conclusion, understanding the intricacies of bearing and race systems is essential for anyone involved in mechanical engineering or industrial maintenance. From selecting the right type of bearing to maintaining and troubleshooting common issues, a comprehensive knowledge of bearings and races can significantly enhance the performance and longevity of mechanical systems. By staying informed about the latest innovations and best practices, professionals can ensure that their machinery operates smoothly and efficiently, minimizing downtime and maximizing productivity.
