Installing a backup camera in your vehicle can significantly enhance safety and convenience, especially when reversing. One of the critical aspects of this installation is understanding the Backup Camera Wiring Diagram. This diagram serves as a roadmap, guiding you through the electrical connections necessary to power your backup camera and integrate it with your vehicle's display system. Whether you're a DIY enthusiast or a professional installer, having a clear understanding of the wiring diagram is essential for a successful installation.
Understanding the Backup Camera Wiring Diagram

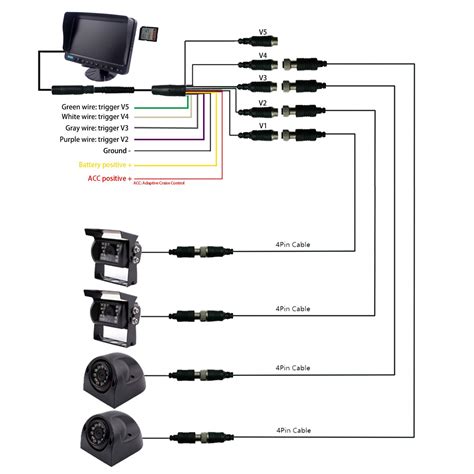

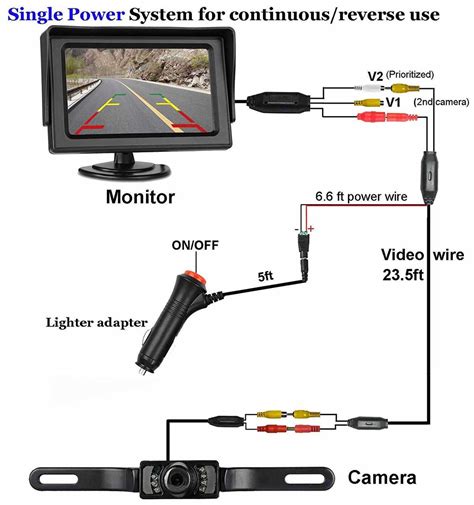

A Backup Camera Wiring Diagram is a visual representation of the electrical connections required to install a backup camera. It shows how the camera connects to the power source, the display unit, and any additional components like switches or relays. The diagram typically includes:
- Power supply connections (usually from the vehicle's battery or fuse box)
- Ground connections
- Video output connections to the display unit
- Trigger wire connections (to activate the camera when the vehicle is in reverse)
Before diving into the installation process, it's crucial to familiarize yourself with the symbols and labels used in the wiring diagram. Common symbols include:
- Lines representing wires
- Circles or rectangles representing connectors
- Arrows indicating the direction of current flow
Gathering the Necessary Tools and Components
To successfully install a backup camera using the Backup Camera Wiring Diagram, you'll need the following tools and components:
- Backup camera kit (including the camera, display unit, and wiring harness)
- Screwdriver set
- Wire strippers and crimpers
- Electrical tape
- Zip ties or cable clips
- Multimeter (for testing connections)
Ensure that all components are compatible with your vehicle's make and model. Some vehicles may require additional adapters or connectors.
Preparing for Installation
Before you begin the installation process, take the following preparatory steps:
- Read the manufacturer's instructions for both the backup camera and the display unit.
- Locate the ideal mounting position for the backup camera, usually on the rear bumper or license plate frame.
- Identify the power source and ground points in your vehicle. Common locations include the fuse box or under the dashboard.
- Plan the route for the wiring harness to minimize visibility and protect the wires from damage.
Step-by-Step Installation Guide
Follow these steps to install your backup camera using the Backup Camera Wiring Diagram:
Step 1: Mount the Backup Camera
Choose a suitable location for the backup camera, ensuring it provides a clear view of the rear area. Use the provided mounting hardware to secure the camera in place. Make sure the camera is aligned correctly to avoid distortion in the display.
Step 2: Connect the Power Supply
Locate the power source in your vehicle, typically a fuse box or a dedicated power outlet. Connect the red wire from the backup camera's wiring harness to the positive terminal of the power source. Connect the black wire to a suitable ground point.
🔧 Note: Ensure that the power supply is turned off before making any connections to avoid electrical hazards.
Step 3: Connect the Trigger Wire
The trigger wire activates the backup camera when the vehicle is in reverse. This wire is usually connected to the reverse light circuit. Locate the reverse light wires in your vehicle and splice the trigger wire into this circuit. Use a relay if necessary to ensure proper activation.
Step 4: Connect the Video Output
Connect the video output wire from the backup camera to the display unit. This connection is typically made using an RCA cable or a dedicated video input on the display unit. Ensure that the connection is secure and that the video signal is clear.
Step 5: Route the Wiring Harness
Carefully route the wiring harness from the backup camera to the display unit, following the planned route. Use zip ties or cable clips to secure the wires and prevent them from being damaged or becoming loose. Ensure that the wires are not visible from the exterior of the vehicle.
Step 6: Test the System
Once all connections are made, turn on the vehicle and shift it into reverse. The backup camera should activate, and the display unit should show the rear view. If the camera does not activate, check all connections and ensure that the trigger wire is properly connected to the reverse light circuit.
Troubleshooting Common Issues
Even with a clear Backup Camera Wiring Diagram, you may encounter issues during installation. Here are some common problems and their solutions:
| Issue | Solution |
|---|---|
| Camera does not activate | Check the trigger wire connection to the reverse light circuit. Ensure that the wire is properly spliced and that the relay (if used) is functioning correctly. |
| No video signal | Verify that the video output wire is securely connected to the display unit. Check for any loose or damaged connections. |
| Distorted image | Adjust the position and alignment of the backup camera. Ensure that the camera lens is clean and free of obstructions. |
If you continue to experience issues, consult the manufacturer's instructions or seek professional assistance.
Installing a backup camera using a Backup Camera Wiring Diagram can be a rewarding DIY project that enhances your vehicle's safety features. By following the steps outlined above and troubleshooting any issues that arise, you can successfully integrate a backup camera into your vehicle. The key to a successful installation is understanding the wiring diagram and ensuring that all connections are secure and properly made.
With the backup camera installed, you can enjoy improved visibility and safety when reversing, making your driving experience more confident and secure.
