In the realm of mechanical engineering and manufacturing, precision and reliability are paramount. One component that often plays a crucial role in ensuring these qualities is the axial locking pin. These pins are essential for securing various mechanical parts in place, preventing them from moving axially along a shaft or rod. This blog post delves into the intricacies of axial locking pins, their types, applications, and the importance of selecting the right pin for your specific needs.
Understanding Axial Locking Pins
Axial locking pins are mechanical fasteners designed to prevent axial movement of components along a shaft or rod. They are commonly used in machinery, automotive, aerospace, and various industrial applications where precise alignment and secure fastening are critical. These pins come in different shapes, sizes, and materials, each suited for specific applications.
Types of Axial Locking Pins
There are several types of axial locking pins, each with unique features and advantages. The most common types include:
- Spring Pins: These pins are made of spring steel and are designed to be pressed into a hole. They expand slightly to create a tight fit, preventing axial movement.

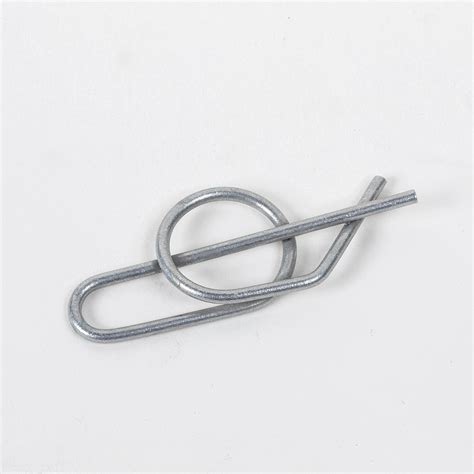

- Cotter Pins: Also known as split pins, these are U-shaped pins with a split end that can be bent to secure the pin in place.
- Roll Pins: These are cylindrical pins that are pressed into a hole. They are often used in applications where a permanent fit is required.
- Taper Pins: These pins have a tapered shape that allows them to be driven into a tapered hole, creating a secure fit.
- Groove Pins: These pins have a groove along their length, which allows them to be secured with a set screw or clip.
Applications of Axial Locking Pins
Axial locking pins are used in a wide range of applications across various industries. Some of the most common applications include:
- Automotive Industry: Axial locking pins are used in the assembly of engines, transmissions, and suspension systems to secure components in place.
- Aerospace Industry: In aerospace, these pins are used to secure critical components such as landing gear, control surfaces, and engine parts.
- Industrial Machinery: Axial locking pins are essential in the construction of industrial machinery, where they are used to secure shafts, gears, and other moving parts.
- Construction Equipment: These pins are used in the assembly of heavy machinery and equipment, ensuring that components remain securely fastened during operation.
Selecting the Right Axial Locking Pin
Choosing the right axial locking pin is crucial for the performance and reliability of your application. Several factors should be considered when selecting a pin:
- Material: The material of the pin should be compatible with the materials of the components it will secure. Common materials include stainless steel, carbon steel, and alloy steel.
- Size and Shape: The size and shape of the pin should match the dimensions of the hole it will be inserted into. This ensures a tight fit and prevents axial movement.
- Load Requirements: The pin should be able to withstand the loads and stresses it will be subjected to during operation. This includes both axial and radial loads.
- Environmental Conditions: The pin should be resistant to corrosion and other environmental factors that could affect its performance.
Here is a table summarizing the key features of different types of axial locking pins:
| Type of Pin | Material | Application | Advantages |
|---|---|---|---|
| Spring Pins | Spring Steel | General Machinery | Easy to install, provides a tight fit |
| Cotter Pins | Carbon Steel | Automotive, Industrial Machinery | Easy to secure, reusable |
| Roll Pins | Carbon Steel, Stainless Steel | Aerospace, Automotive | Permanent fit, high strength |
| Taper Pins | Carbon Steel, Alloy Steel | Industrial Machinery, Construction Equipment | Secure fit, easy to install |
| Groove Pins | Carbon Steel, Stainless Steel | General Machinery, Automotive | Secure fit, can be used with set screws or clips |
🔍 Note: Always refer to the manufacturer's specifications and guidelines when selecting and installing axial locking pins to ensure optimal performance and safety.
Installation and Maintenance of Axial Locking Pins
Proper installation and maintenance of axial locking pins are essential for their effective performance. Here are some steps to follow:
- Preparation: Ensure that the hole into which the pin will be inserted is clean and free of debris. The hole should also be the correct size and shape for the pin.
- Insertion: Insert the pin into the hole, ensuring that it is fully seated. For spring pins, use a press or hammer to drive the pin into place. For cotter pins, bend the ends to secure the pin.
- Securing: For pins that require additional securing, such as groove pins, use set screws or clips to prevent the pin from moving.
- Maintenance: Regularly inspect the pins for signs of wear or damage. Replace any pins that show signs of corrosion, cracking, or other forms of degradation.
Proper installation and maintenance ensure that axial locking pins perform their intended function effectively, preventing axial movement and ensuring the reliability of the mechanical system.
Axial locking pins are a critical component in many mechanical systems, providing the necessary security and precision required for optimal performance. By understanding the different types of pins, their applications, and the factors to consider when selecting a pin, you can ensure that your mechanical systems operate reliably and efficiently. Regular inspection and maintenance of these pins will further enhance their performance and longevity, making them an indispensable part of any mechanical assembly.
