Awg Wire Diameter

Understanding the intricacies of electrical wiring is crucial for anyone involved in electrical work, whether you're a professional electrician or a DIY enthusiast. One of the fundamental aspects of electrical wiring is the Awg Wire Diameter. The American Wire Gauge (AWG) system is a standardized way of denoting wire diameters, which directly affects the wire's current-carrying capacity and resistance. This blog post will delve into the details of AWG wire diameters, their significance, and how to choose the right wire for your projects.

What is AWG Wire Diameter?

The American Wire Gauge (AWG) system is a standardized way of denoting wire diameters. The gauge number indicates the diameter of the wire, with lower numbers corresponding to thicker wires. For example, a 10 AWG wire is thicker than a 12 AWG wire. The AWG system is widely used in North America and is essential for ensuring that electrical systems are safe and efficient.

Understanding the AWG System

The AWG system is based on a logarithmic scale, meaning that each gauge number represents a specific diameter, and the difference in diameter between consecutive gauges is not constant. This system was developed in the early 19th century and has since become the standard for measuring wire diameters in the United States.

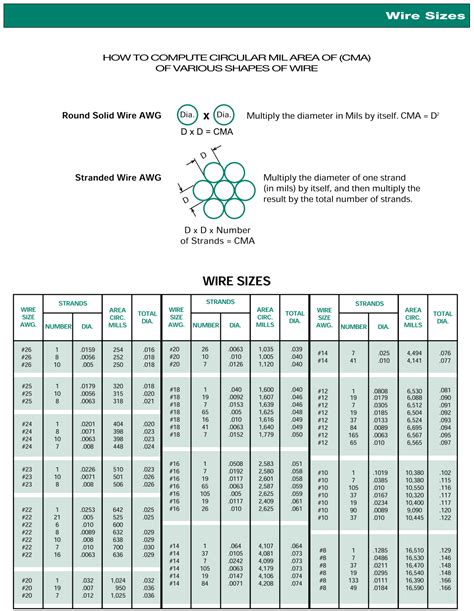

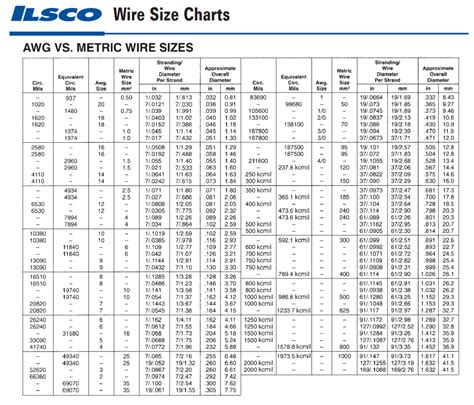

The AWG system ranges from 0000 (4/0) to 40, with 0000 being the thickest and 40 being the thinnest. The most commonly used gauges for electrical wiring are between 14 AWG and 2 AWG. Here is a breakdown of some common AWG sizes and their corresponding diameters:

Importance of Choosing the Right AWG Wire Diameter

Selecting the correct Awg Wire Diameter is crucial for several reasons:

• Current-Carrying Capacity: Thicker wires can carry more current without overheating. Using a wire that is too thin for the current it needs to carry can lead to overheating and potential fires.
• Voltage Drop: Longer wire runs require thicker wires to minimize voltage drop. A significant voltage drop can reduce the efficiency of electrical devices and appliances.
• Safety: Proper wire sizing ensures that the electrical system operates safely, reducing the risk of electrical hazards such as short circuits and fires.
• Efficiency: Using the correct wire diameter ensures that the electrical system operates efficiently, minimizing energy loss and reducing operating costs.

Factors to Consider When Choosing AWG Wire Diameter

When selecting the appropriate Awg Wire Diameter for your project, consider the following factors:

• Current Requirements: Determine the amount of current the wire will need to carry. This information is usually provided in the specifications of the electrical devices or appliances you are wiring.
• Wire Length: Longer wire runs require thicker wires to minimize voltage drop. Calculate the total length of the wire run to ensure proper sizing.
• Environmental Conditions: Consider the environmental conditions where the wire will be installed. For example, wires in high-temperature environments may require thicker insulation or special materials.
• Regulatory Standards: Ensure that the wire size complies with local electrical codes and standards. These regulations are in place to ensure safety and efficiency.

Common Applications of Different AWG Wire Sizes

Different AWG wire sizes are suitable for various applications. Here are some common uses for different wire gauges:

• 14 AWG: Suitable for lighting circuits and small appliances. It is commonly used in residential wiring for 15-amp circuits.
• 12 AWG: Used for general-purpose wiring in residential and commercial settings. It is suitable for 20-amp circuits and can handle higher current loads than 14 AWG.
• 10 AWG: Often used for heavier-duty applications such as electric ranges, dryers, and air conditioners. It is suitable for 30-amp circuits.
• 8 AWG: Used for high-current applications such as electric water heaters and large appliances. It is suitable for 40-amp circuits.
• 6 AWG: Commonly used for subpanels and large appliances. It is suitable for 55-amp circuits.
• 4 AWG: Used for heavy-duty applications such as electric vehicle charging stations and large industrial equipment. It is suitable for 70-amp circuits.
• 2 AWG: Used for very high-current applications such as large industrial machinery and data centers. It is suitable for 95-amp circuits.

💡 Note: Always consult local electrical codes and regulations to ensure compliance and safety.

Calculating Wire Size

To determine the correct Awg Wire Diameter for your project, you can use the following steps:

• Determine the Current Requirements: Identify the current requirements of the electrical devices or appliances you are wiring.
• Calculate the Wire Length: Measure the total length of the wire run from the power source to the load.
• Use a Wire Size Calculator: Use an online wire size calculator or consult a wire size chart to determine the appropriate AWG size based on the current requirements and wire length.
• Consider Voltage Drop: Ensure that the selected wire size minimizes voltage drop to an acceptable level. A voltage drop of more than 3% is generally considered unacceptable.

💡 Note: Always round up to the next larger wire size if your calculations fall between two standard sizes.

Safety Precautions When Working with Electrical Wires

Working with electrical wires can be dangerous if proper safety precautions are not followed. Here are some important safety tips:

• Turn Off Power: Always turn off the power at the circuit breaker or fuse box before working on electrical wiring.
• Use Proper Tools: Use insulated tools designed for electrical work to minimize the risk of electric shock.
• Wear Protective Gear: Wear appropriate personal protective equipment (PPE), including insulated gloves and safety glasses.
• Avoid Overloading Circuits: Ensure that the wire size and circuit breaker are appropriately matched to prevent overloading.
• Follow Local Codes: Always follow local electrical codes and regulations to ensure safety and compliance.

💡 Note: If you are unsure about any aspect of electrical wiring, consult a licensed electrician to ensure safety and compliance.

In conclusion, understanding the Awg Wire Diameter is essential for ensuring the safety and efficiency of electrical systems. By selecting the correct wire size based on current requirements, wire length, and environmental conditions, you can minimize the risk of electrical hazards and ensure optimal performance. Always follow local electrical codes and regulations, and consult a licensed electrician if you are unsure about any aspect of electrical wiring. Proper wire sizing is a critical component of any electrical project, and taking the time to choose the right wire can save you time, money, and potential hazards in the long run.
