Understanding the intricacies of electrical wiring and cable specifications is crucial for anyone involved in electrical work, whether you're a professional electrician or a DIY enthusiast. One of the most important tools in this field is the Awg Amp Chart. This chart provides a comprehensive guide to the current-carrying capacity of different American Wire Gauge (AWG) sizes, helping to ensure that electrical systems are safe and efficient.
What is the American Wire Gauge (AWG) System?
The American Wire Gauge (AWG) system is a standardized way of denoting wire diameters. The gauge number indicates the diameter of the wire, with lower numbers corresponding to thicker wires. For example, a 10 AWG wire is thicker than a 12 AWG wire. This system is widely used in North America and is essential for selecting the appropriate wire size for various electrical applications.
Understanding the Awg Amp Chart
The Awg Amp Chart is a critical reference tool that lists the maximum current (in amperes) that a wire of a given AWG size can safely carry. This chart is essential for ensuring that electrical circuits are designed to handle the required load without overheating or causing a fire hazard. The chart typically includes information on the wire material, insulation type, and ambient temperature, as these factors can affect the wire’s current-carrying capacity.
Key Factors Affecting Wire Size Selection
When selecting the appropriate wire size using the Awg Amp Chart, several factors must be considered:
- Current Load: The amount of current the wire will carry. This is typically determined by the electrical devices and appliances connected to the circuit.
- Voltage Drop: The reduction in voltage as current flows through the wire. Longer wire runs and higher current loads can result in significant voltage drops, affecting the performance of electrical devices.
- Insulation Type: The type of insulation used on the wire can affect its current-carrying capacity. Common insulation types include THHN, THWN, and XHHW, each with different temperature ratings.
- Ambient Temperature: The surrounding temperature can impact the wire’s ability to dissipate heat. Higher ambient temperatures can reduce the wire’s current-carrying capacity.
- Conductor Material: The material of the conductor (usually copper or aluminum) affects its conductivity and current-carrying capacity. Copper is generally preferred for its superior conductivity.
Reading the Awg Amp Chart

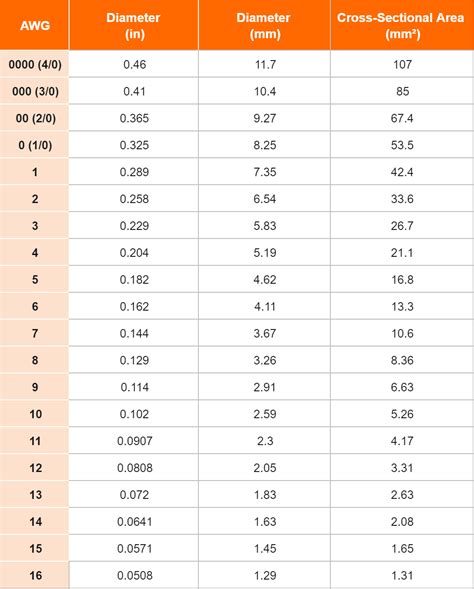

The Awg Amp Chart is typically organized in a tabular format, making it easy to reference. Here is an example of what the chart might look like:
| AWG Size | Copper Wire (Amps) | Aluminum Wire (Amps) |
|---|---|---|
| 14 | 15 | 15 |
| 12 | 20 | 20 |
| 10 | 30 | 25 |
| 8 | 40 | 35 |
| 6 | 55 | 45 |
| 4 | 70 | 60 |
| 2 | 95 | 85 |
| 1 | 110 | 100 |
| 1/0 | 130 | 120 |
| 2/0 | 155 | 140 |
| 3/0 | 180 | 165 |
| 4/0 | 215 | 200 |
This chart provides a quick reference for the maximum current that can be safely carried by wires of different AWG sizes. It is important to note that these values are based on standard conditions and may vary depending on the specific application and environmental factors.
🔍 Note: Always consult local electrical codes and regulations, as they may have specific requirements that differ from the standard Awg Amp Chart.
Importance of Proper Wire Sizing
Proper wire sizing is crucial for several reasons:
- Safety: Undersized wires can overheat and cause fires, while oversized wires can be unnecessarily expensive and difficult to work with.
- Efficiency: Correctly sized wires ensure that electrical systems operate efficiently, minimizing energy loss and voltage drops.
- Compliance: Adhering to electrical codes and standards ensures that installations are safe and compliant with local regulations.
Common Mistakes to Avoid
When using the Awg Amp Chart, it’s essential to avoid common mistakes that can lead to unsafe or inefficient electrical systems:
- Ignoring Ambient Temperature: Higher ambient temperatures can reduce the current-carrying capacity of wires. Always consider the environmental conditions when selecting wire sizes.
- Overlooking Voltage Drop: Long wire runs can result in significant voltage drops, affecting the performance of electrical devices. Ensure that wire sizes are adequate to minimize voltage drop.
- Using Incorrect Insulation Types: Different insulation types have different temperature ratings. Always select the appropriate insulation for the application.
- Not Accounting for Future Loads: Electrical systems should be designed to handle not only the current load but also potential future increases. Plan for future expansions to avoid costly rewiring.
🛑 Note: Always double-check your calculations and consult with a professional if you are unsure about any aspect of wire sizing.
Applications of the Awg Amp Chart
The Awg Amp Chart is used in a variety of applications, including:
- Residential Wiring: Ensuring that home electrical systems are safe and efficient.
- Commercial Wiring: Designing electrical systems for businesses, offices, and retail spaces.
- Industrial Wiring: Powering machinery and equipment in factories and industrial settings.
- Automotive Wiring: Ensuring that vehicle electrical systems are reliable and safe.
Conclusion
The Awg Amp Chart is an indispensable tool for anyone involved in electrical work. By understanding the current-carrying capacity of different AWG sizes, you can ensure that your electrical systems are safe, efficient, and compliant with local regulations. Always consider the key factors affecting wire size selection, such as current load, voltage drop, insulation type, ambient temperature, and conductor material. Avoid common mistakes and consult with professionals when necessary to ensure the best results. Proper wire sizing is not just about compliance; it’s about creating reliable and safe electrical systems that meet the needs of your application.
