The world of audio production is vast and intricate, with numerous tools and techniques designed to help creators achieve their sonic visions. Among these tools, the audio mixing console stands as a cornerstone, offering a central hub for managing and manipulating audio signals. Whether you're a seasoned professional or a budding enthusiast, understanding the intricacies of an audio mixing console can significantly enhance your audio production capabilities.
Understanding the Basics of an Audio Mixing Console

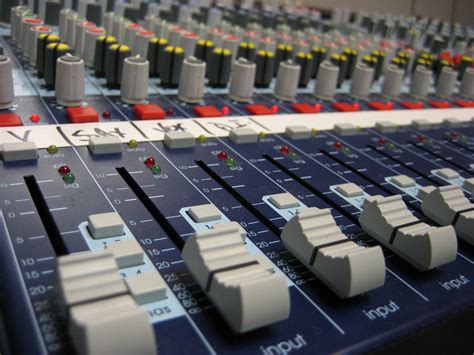

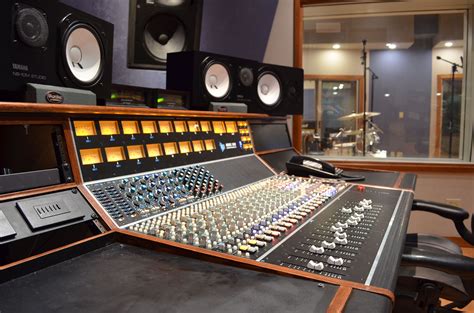

An audio mixing console, often simply referred to as a mixing board or mixer, is a device that allows you to combine, route, and manipulate multiple audio signals. These consoles are essential in studios, live performances, and broadcast settings. They come in various sizes and complexities, from small, portable units to large, fixed installations in professional studios.

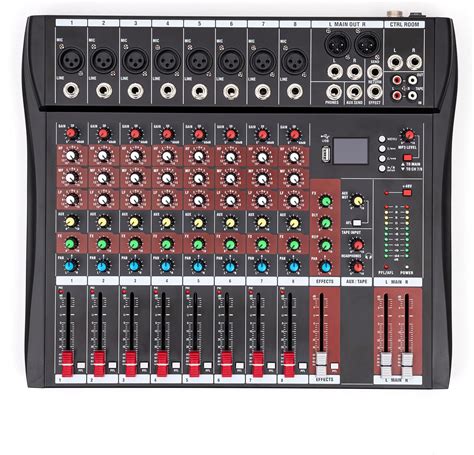

At its core, an audio mixing console consists of several key components:
- Channels: These are the individual inputs where you connect your microphones, instruments, or other audio sources.

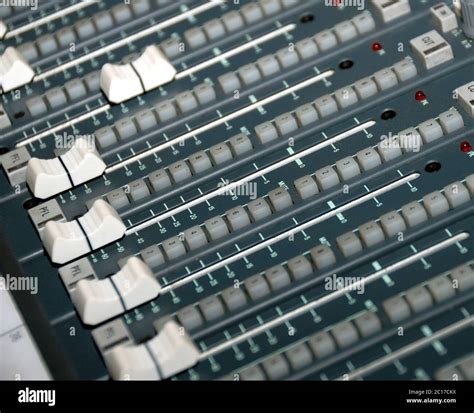

- Faders: Sliders that control the volume of each channel.
- EQ (Equalization): Controls that allow you to adjust the frequency response of each channel.
- Auxiliary Sends: Additional outputs that can be used for effects processing or monitoring.
- Panning: Controls that determine the stereo position of each channel.
- Master Section: The final output stage where all channels are combined and sent to the main speakers or recording device.
Types of Audio Mixing Consoles
Audio mixing consoles can be categorized into several types, each suited to different applications and environments. The main types include:
- Analog Mixing Consoles: These are the traditional mixing boards that use analog circuitry to process audio signals. They are known for their warm, natural sound and are often preferred in high-end studios.
- Digital Mixing Consoles: These consoles use digital signal processing (DSP) to handle audio signals. They offer advanced features like recallable settings, built-in effects, and integration with computer software.
- Hybrid Mixing Consoles: These combine the best of both worlds, offering analog preamps with digital processing capabilities. They provide the warmth of analog sound with the flexibility of digital technology.
- Portable Mixing Consoles: These are compact and lightweight, designed for live performances and small studios. They are easy to transport and set up, making them ideal for gigging musicians and mobile DJs.
Key Features of an Audio Mixing Console
When choosing an audio mixing console, it's essential to consider the key features that will best suit your needs. Here are some of the most important features to look for:
- Number of Channels: The number of input channels determines how many audio sources you can connect simultaneously. More channels mean greater flexibility but also a higher cost.
- Preamps: High-quality preamps are crucial for capturing clean and detailed audio signals. Look for consoles with preamps that offer low noise and high gain.
- EQ and Filters: Advanced EQ and filter options allow for precise control over the frequency response of each channel. Look for consoles with parametric EQ, high-pass filters, and low-pass filters.
- Effects Processing: Built-in effects like reverb, delay, and compression can enhance your audio signals without the need for external processors. Some consoles offer extensive effects libraries and real-time processing.
- Routing and Bussing: Flexible routing and bussing options allow you to send audio signals to multiple destinations, such as effects processors, recording devices, or monitoring systems.
- Connectivity: Modern consoles often include a variety of connectivity options, such as USB, FireWire, and Ethernet, for integrating with computers and other digital devices.
Setting Up an Audio Mixing Console
Setting up an audio mixing console involves several steps to ensure optimal performance and ease of use. Here’s a step-by-step guide to help you get started:
Step 1: Choose a Location
Select a stable, flat surface for your mixing console. Ensure it is easily accessible and has enough space for all your equipment and cables.
Step 2: Connect Power
Plug in the power cable and turn on the console. Allow it to warm up for a few minutes before making any adjustments.
Step 3: Connect Audio Sources
Connect your microphones, instruments, and other audio sources to the appropriate input channels on the console. Use XLR cables for microphones and 1/4-inch cables for instruments.
Step 4: Configure Input Settings
For each channel, set the input type (mic, line, or instrument) and adjust the gain to achieve a healthy signal level. Use the input meters to monitor the signal strength.
Step 5: Set Up Monitoring
Connect your headphones or studio monitors to the console’s output. Adjust the volume and balance to ensure clear and accurate monitoring.
Step 6: Apply Effects and EQ
Use the EQ and effects controls to shape the sound of each channel. Apply compression, reverb, and other effects as needed to enhance the audio quality.
Step 7: Route Signals
Use the auxiliary sends and busses to route signals to external effects processors, recording devices, or monitoring systems. Ensure that all signals are correctly routed and balanced.
🔧 Note: Always double-check your connections and settings before starting a recording or performance to avoid any unexpected issues.
Advanced Techniques for Audio Mixing
Once you’re comfortable with the basics of using an audio mixing console, you can explore advanced techniques to take your audio production to the next level. Here are some key techniques to consider:
Panning and Stereo Imaging
Panning allows you to position audio signals within the stereo field, creating a sense of space and depth. Use panning to place instruments and vocals in specific locations, enhancing the overall mix.
Compression and Dynamics Control
Compression is used to control the dynamic range of audio signals, making them more consistent and balanced. Apply compression to vocals, drums, and other instruments to achieve a polished and professional sound.
EQ and Frequency Shaping
Advanced EQ techniques involve precise frequency shaping to enhance the clarity and definition of each audio signal. Use parametric EQ to target specific frequencies and make subtle adjustments.
Effects Processing
Effects like reverb, delay, and modulation can add depth and interest to your audio signals. Experiment with different effects and settings to create unique and engaging sounds.
Automation and Recall
Many digital mixing consoles offer automation and recall features, allowing you to save and recall settings for future use. Use automation to control faders, EQ, and effects in real-time, creating dynamic and expressive mixes.
Maintaining Your Audio Mixing Console
Proper maintenance is essential to ensure the longevity and performance of your audio mixing console. Here are some tips for keeping your console in top condition:
- Regular Cleaning: Dust and debris can accumulate on the console, affecting its performance. Use a soft, dry cloth to clean the surface and controls regularly.
- Proper Storage: When not in use, store your console in a cool, dry place away from direct sunlight and moisture. Use a protective cover to prevent dust and damage.
- Cable Management: Keep cables organized and avoid tangling to prevent damage to the console and cables. Use cable ties or organizers to keep everything neat and tidy.
- Firmware Updates: For digital consoles, regularly check for firmware updates and install them as needed to ensure optimal performance and compatibility.
Troubleshooting Common Issues
Even with proper maintenance, you may encounter issues with your audio mixing console. Here are some common problems and solutions:
| Issue | Solution |
|---|---|
| No Sound | Check all connections, ensure the console is powered on, and verify that the input levels are set correctly. |
| Distortion | Reduce the gain on the affected channels, check for clipping, and ensure that cables are properly connected. |
| Feedback | Adjust the microphone placement, reduce the gain, and use feedback suppression techniques. |
| Intermittent Sound | Check for loose connections, inspect cables for damage, and ensure that the console is properly grounded. |
🛠️ Note: If you encounter persistent issues, consult the console’s manual or seek professional assistance to diagnose and resolve the problem.
In conclusion, the audio mixing console is a versatile and powerful tool that plays a crucial role in audio production. Whether you’re working in a studio, performing live, or broadcasting, understanding the features and techniques of an audio mixing console can significantly enhance your audio quality and creativity. By choosing the right console, setting it up correctly, and applying advanced techniques, you can achieve professional-level results and bring your sonic visions to life.
