Arterial Blood Gases (ABGs) are a critical tool in medical diagnostics, providing valuable insights into a patient's respiratory and metabolic status. An Arterial Blood Gases Chart is essential for interpreting these results accurately. This chart helps healthcare professionals understand the acid-base balance, oxygenation, and ventilation status of a patient. By analyzing the data from an ABG test, clinicians can make informed decisions about treatment and management strategies.
Understanding Arterial Blood Gases
Arterial Blood Gases (ABGs) measure the levels of oxygen, carbon dioxide, and pH in the blood. These measurements are crucial for assessing the body's ability to oxygenate tissues and eliminate carbon dioxide. The primary components of an ABG test include:
- pH: Measures the acidity or alkalinity of the blood.
- PaO2 (Partial Pressure of Oxygen): Indicates the amount of oxygen in the blood.
- PaCO2 (Partial Pressure of Carbon Dioxide): Reflects the amount of carbon dioxide in the blood.
- HCO3 (Bicarbonate): Helps maintain the body's pH balance.
- Base Excess/Deficit: Indicates the amount of base needed to return the pH to normal.
These parameters are essential for diagnosing and managing various respiratory and metabolic disorders. An Arterial Blood Gases Chart helps in visualizing these parameters and understanding their interrelationships.
Interpreting the Arterial Blood Gases Chart

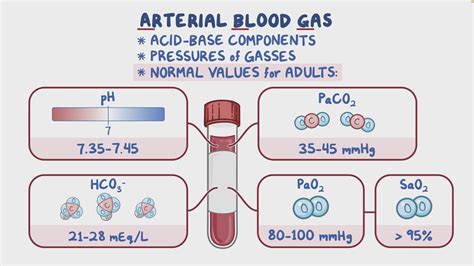

Interpreting an Arterial Blood Gases Chart involves understanding the normal ranges and the implications of deviations from these ranges. Here are the normal ranges for the key parameters:
| Parameter | Normal Range |
|---|---|
| pH | 7.35 - 7.45 |
| PaO2 | 80 - 100 mmHg |
| PaCO2 | 35 - 45 mmHg |
| HCO3 | 22 - 26 mEq/L |
| Base Excess/Deficit | -2 to +2 mEq/L |
Deviations from these ranges can indicate various conditions:
- Acidosis: pH < 7.35, which can be respiratory (high PaCO2) or metabolic (low HCO3).
- Alkalosis: pH > 7.45, which can be respiratory (low PaCO2) or metabolic (high HCO3).
- Hypoxemia: PaO2 < 80 mmHg, indicating inadequate oxygenation.
- Hypercapnia: PaCO2 > 45 mmHg, indicating inadequate ventilation.
An Arterial Blood Gases Chart helps in quickly identifying these deviations and their underlying causes. For example, a high PaCO2 with a low pH suggests respiratory acidosis, which could be due to conditions like chronic obstructive pulmonary disease (COPD) or respiratory depression.
Clinical Applications of Arterial Blood Gases
ABGs are used in various clinical settings to monitor and manage patients with respiratory and metabolic disorders. Some of the key applications include:
- Critical Care: In intensive care units (ICUs), ABGs are frequently used to monitor patients with severe respiratory or metabolic disturbances.
- Pulmonary Medicine: ABGs help in diagnosing and managing conditions like COPD, asthma, and pneumonia.
- Anesthesiology: During surgery, ABGs are used to monitor the patient's respiratory status and ensure adequate oxygenation and ventilation.
- Emergency Medicine: In emergency settings, ABGs are crucial for assessing patients with acute respiratory distress, sepsis, or other critical conditions.
An Arterial Blood Gases Chart is invaluable in these settings, providing a quick reference for interpreting ABG results and guiding treatment decisions.

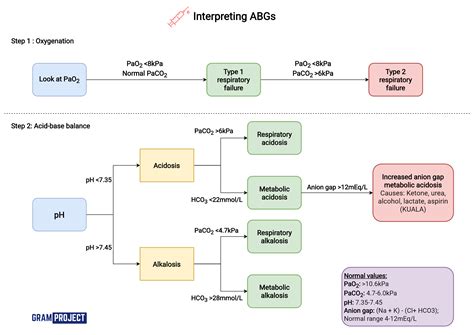

Steps to Interpret an Arterial Blood Gases Chart
Interpreting an Arterial Blood Gases Chart involves a systematic approach. Here are the steps to follow:
- Check the pH: Determine if the pH is within the normal range. If it is not, note whether it is acidic or alkaline.
- Evaluate PaCO2: Check if the PaCO2 is within the normal range. If it is not, determine if it is high (hypercapnia) or low (hypocapnia).
- Assess HCO3: Look at the HCO3 level to see if it is within the normal range. If it is not, note whether it is high (metabolic alkalosis) or low (metabolic acidosis).
- Analyze PaO2: Check the PaO2 level to assess oxygenation. If it is low, it indicates hypoxemia.
- Determine the Primary Disorder: Based on the pH, PaCO2, and HCO3 levels, identify the primary disorder (respiratory or metabolic acidosis/alkalosis).
- Look for Compensation: Determine if the body is compensating for the primary disorder by adjusting the PaCO2 or HCO3 levels.
📝 Note: Always consider the clinical context when interpreting ABG results. A single ABG value may not provide a complete picture of the patient's condition.
Common Patterns in Arterial Blood Gases
Several common patterns can be identified in an Arterial Blood Gases Chart. Recognizing these patterns helps in quickly diagnosing and managing respiratory and metabolic disorders. Some of the common patterns include:
- Respiratory Acidosis: High PaCO2, low pH, normal HCO3.
- Respiratory Alkalosis: Low PaCO2, high pH, normal HCO3.
- Metabolic Acidosis: Low HCO3, low pH, normal PaCO2.
- Metabolic Alkalosis: High HCO3, high pH, normal PaCO2.
- Mixed Acid-Base Disorders: Combinations of the above patterns, such as respiratory acidosis with metabolic alkalosis.
An Arterial Blood Gases Chart helps in visualizing these patterns and understanding their implications. For example, a patient with respiratory acidosis may have a high PaCO2 and low pH, indicating inadequate ventilation. The chart can help in identifying the underlying cause and guiding treatment.
Case Studies: Applying Arterial Blood Gases Chart
Let's consider a few case studies to illustrate the application of an Arterial Blood Gases Chart in clinical practice.
Case Study 1: Respiratory Acidosis
A 65-year-old patient with COPD presents with shortness of breath and confusion. The ABG results are as follows:
| Parameter | Value |
|---|---|
| pH | 7.25 |
| PaO2 | 60 mmHg |
| PaCO2 | 65 mmHg |
| HCO3 | 24 mEq/L |
Interpretation: The low pH and high PaCO2 indicate respiratory acidosis. The normal HCO3 suggests that the body has not yet compensated for the acidosis. The low PaO2 indicates hypoxemia. Treatment may include oxygen therapy and bronchodilators to improve ventilation.
Case Study 2: Metabolic Alkalosis
A 40-year-old patient with vomiting and dehydration presents with muscle cramps and weakness. The ABG results are as follows:
| Parameter | Value |
|---|---|
| pH | 7.50 |
| PaO2 | 90 mmHg |
| PaCO2 | 30 mmHg |
| HCO3 | 30 mEq/L |
Interpretation: The high pH and high HCO3 indicate metabolic alkalosis. The low PaCO2 suggests respiratory compensation. The normal PaO2 indicates adequate oxygenation. Treatment may include fluid replacement and electrolyte correction.
These case studies demonstrate how an Arterial Blood Gases Chart can be used to interpret ABG results and guide treatment decisions.
An Arterial Blood Gases Chart is a powerful tool for healthcare professionals, providing a visual representation of ABG results and aiding in the diagnosis and management of respiratory and metabolic disorders. By understanding the key parameters and common patterns, clinicians can make informed decisions about patient care. The systematic approach to interpreting ABG results, along with the clinical context, ensures accurate diagnosis and effective treatment.
In summary, the Arterial Blood Gases Chart is an essential component of medical diagnostics, offering valuable insights into a patient’s respiratory and metabolic status. By mastering the interpretation of ABG results, healthcare professionals can enhance their ability to manage complex medical conditions and improve patient outcomes. The chart serves as a quick reference, helping clinicians to identify deviations from normal ranges and understand their implications. Whether in critical care, pulmonary medicine, anesthesiology, or emergency medicine, the Arterial Blood Gases Chart is a vital tool for ensuring accurate diagnosis and effective treatment.
