Angle Of Refraction

Understanding the principles of optics is crucial for various fields, from physics and engineering to photography and medicine. One of the fundamental concepts in optics is the angle of refraction, which describes how light bends as it passes from one medium to another. This phenomenon is governed by Snell's Law, a cornerstone of optical theory. In this post, we will delve into the intricacies of the angle of refraction, its applications, and how it influences our daily lives.

Understanding the Angle of Refraction

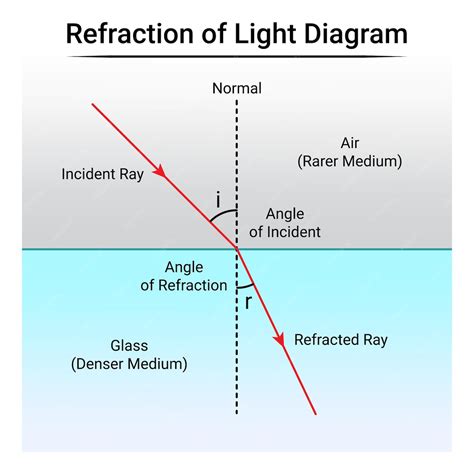

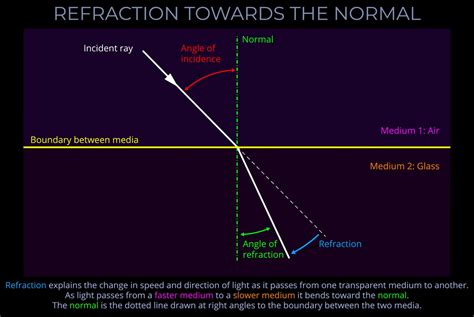

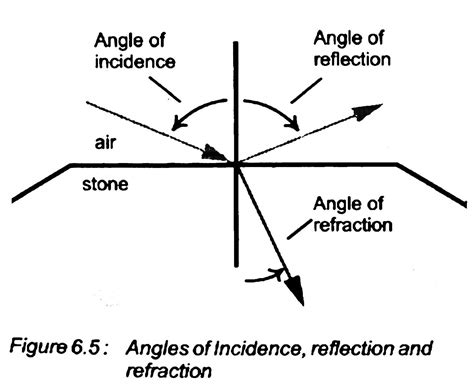

The angle of refraction is the angle between the refracted ray and the normal (an imaginary line perpendicular to the surface) at the point of incidence. When light travels from one medium to another with a different refractive index, it changes direction. This change is quantified by the angle of refraction.

To understand this better, let's consider the basic principles:

• Incident Ray: The ray of light that strikes the surface.
• Refracted Ray: The ray of light that emerges from the surface after refraction.
• Normal: An imaginary line perpendicular to the surface at the point of incidence.
• Angle of Incidence: The angle between the incident ray and the normal.
• Angle of Refraction: The angle between the refracted ray and the normal.

Snell's Law and the Angle of Refraction

Snell's Law is the mathematical expression that relates the angle of incidence to the angle of refraction. It is given by the formula:

n₁ sin(θ₁) = n₂ sin(θ₂)

Where:

• n₁ is the refractive index of the first medium.
• n₂ is the refractive index of the second medium.
• θ₁ is the angle of incidence.
• θ₂ is the angle of refraction.

This law is fundamental in optics and is used to design lenses, prisms, and other optical devices. It explains why a straw appears bent when placed in a glass of water—the light rays bend as they pass from water to air, creating an illusion.

Applications of the Angle of Refraction

The angle of refraction has numerous applications in various fields. Some of the most notable include:

Optical Fibers

Optical fibers use the principle of total internal reflection, which is closely related to the angle of refraction. In optical fibers, light is confined within the fiber by reflecting off the inner walls. This allows for the transmission of data over long distances with minimal loss, making optical fibers essential for telecommunications.

Lenses and Prisms

Lenses and prisms are designed using the principles of refraction. Lenses, whether convex or concave, bend light to form images. Prisms disperse light into its constituent colors, a phenomenon known as dispersion. This is crucial in spectroscopy and the design of optical instruments like telescopes and microscopes.

Medical Imaging

In medical imaging, the angle of refraction is used in techniques like ultrasound and MRI. Ultrasound uses sound waves that refract and reflect within the body to create images of internal structures. MRI, on the other hand, uses magnetic fields and radio waves to produce detailed images of the body’s interior.

Photography

In photography, lenses are designed to control the angle of refraction to focus light onto the camera sensor. Different lenses have different refractive properties, allowing photographers to capture images with varying depths of field and perspectives.

Experiments and Demonstrations

Understanding the angle of refraction through experiments can be both educational and entertaining. Here are a few simple experiments you can try:

Bending Light with a Glass of Water

Materials needed:

• A clear glass
• Water
• A straw

Steps:

1. Fill the glass with water.
2. Place the straw in the glass so that part of it is submerged in water and part is in the air.
3. Observe the straw from the side of the glass.

You will notice that the straw appears to be bent at the water’s surface. This is due to the difference in the refractive indices of air and water, causing the light to refract and creating an optical illusion.

💡 Note: This experiment can be enhanced by using different liquids with varying refractive indices to observe different angles of refraction.

Prism Dispersion

Materials needed:

• A prism
• A white light source (e.g., a flashlight)
• A white screen or wall

Steps:

1. Place the prism in a dark room.
2. Shine the white light source through the prism onto the screen or wall.
3. Observe the spectrum of colors that appear on the screen.

The prism disperses the white light into its constituent colors due to the different angles of refraction for different wavelengths of light.

💡 Note: For a more detailed observation, use a spectroscope to analyze the dispersed light.

Factors Affecting the Angle of Refraction

Several factors influence the angle of refraction, including:

Refractive Index

The refractive index of a medium is a measure of how much light bends as it passes through that medium. Different materials have different refractive indices, affecting the angle of refraction. For example, the refractive index of water is approximately 1.33, while that of glass is around 1.52.

Angle of Incidence

The angle of incidence directly affects the angle of refraction. As the angle of incidence increases, the angle of refraction also increases, up to a certain point. Beyond this point, total internal reflection occurs, and no refraction takes place.

Wavelength of Light

Different wavelengths of light refract at different angles. This is why a prism can disperse white light into a spectrum of colors. Shorter wavelengths (like blue light) refract more than longer wavelengths (like red light).

Total Internal Reflection

Total internal reflection occurs when light travels from a denser medium to a less dense medium and the angle of incidence is greater than the critical angle. At this point, all the light is reflected back into the denser medium, and no refraction occurs. This phenomenon is crucial in optical fibers and is used in various applications, including endoscopes and binoculars.

The critical angle is given by the formula:

sin(θ_c) = n₂ / n₁

Where:

• θ_c is the critical angle.
• n₁ is the refractive index of the denser medium.
• n₂ is the refractive index of the less dense medium.

Real-World Examples

The angle of refraction is not just a theoretical concept; it has practical applications in our daily lives. Here are a few examples:

Mirage

A mirage is an optical illusion caused by the refraction of light. On hot days, the air near the ground is warmer and less dense than the air above it. Light rays from the sky bend as they pass through these layers of air, creating the illusion of a reflecting surface, such as a pool of water, on the road ahead.

Rainbows

Rainbows are formed by the refraction and reflection of light in raindrops. When sunlight enters a raindrop, it is refracted, reflected internally, and then refracted again as it exits the drop. This process disperses the light into its constituent colors, creating the beautiful spectrum we see as a rainbow.

Fiber Optic Communication

Fiber optic communication relies on the principle of total internal reflection to transmit data over long distances. Light signals are sent through optical fibers, which are designed to minimize loss and ensure that the light stays within the fiber. This technology is the backbone of modern telecommunications, enabling high-speed internet and data transmission.

Mathematical Representation

To better understand the angle of refraction, let’s delve into the mathematical representation using Snell’s Law. Consider a light ray traveling from medium 1 to medium 2 with refractive indices n₁ and n₂, respectively. The relationship between the angle of incidence (θ₁) and the angle of refraction (θ₂) is given by:

n₁ sin(θ₁) = n₂ sin(θ₂)

Rearranging this equation, we can solve for the angle of refraction:

θ₂ = sin^-1(n₁ sin(θ₁) / n₂)

This equation allows us to calculate the angle of refraction for any given angle of incidence and refractive indices of the two media.

Refractive Index Table

Here is a table of refractive indices for some common materials:

These values are approximate and can vary slightly depending on the specific composition and conditions of the material.

💡 Note: The refractive index can also vary with the wavelength of light, a phenomenon known as dispersion.

Advanced Topics in Refraction

For those interested in delving deeper into the subject, there are several advanced topics to explore:

Fresnel Equations

The Fresnel equations describe the reflection and transmission of light at the interface between two media. They take into account the polarization of light and provide a more detailed analysis of the refraction process.

Huygens’ Principle

Huygens’ Principle states that every point on a wavefront can be considered a source of secondary wavelets. The new wavefront is the envelope of these wavelets. This principle helps explain the propagation of light and the phenomenon of refraction.

Optical Aberrations

Optical aberrations are distortions in the image formed by an optical system. They can be caused by various factors, including the angle of refraction. Understanding and correcting these aberrations is crucial in the design of high-quality optical instruments.

In conclusion, the angle of refraction is a fundamental concept in optics with wide-ranging applications. From the design of optical fibers and lenses to the creation of rainbows and mirages, the principles of refraction play a crucial role in our understanding of light and its behavior. By exploring the intricacies of the angle of refraction, we gain insights into the fascinating world of optics and its impact on our daily lives.
