In the realm of acoustics and sound engineering, the Anechoic Acoustic Chamber stands as a marvel of modern technology. This specialized room is designed to absorb all sound waves, creating an environment free from echoes and external noise. The purpose of an anechoic chamber is to provide a controlled space where sound can be measured and analyzed with unparalleled precision. This is crucial for various applications, including audio equipment testing, speech research, and the development of noise-canceling technologies.
Understanding the Anechoic Acoustic Chamber
An Anechoic Acoustic Chamber is a room designed to completely absorb sound, eliminating all echoes and external noise. The term "anechoic" comes from the Greek words "an" meaning "without" and "echo," indicating the absence of reflections. These chambers are typically lined with acoustic foam or fiberglass wedges that absorb sound waves, preventing them from bouncing off the walls, ceiling, and floor. The result is a space where sound can be measured and analyzed with exceptional accuracy.
The primary components of an Anechoic Acoustic Chamber include:

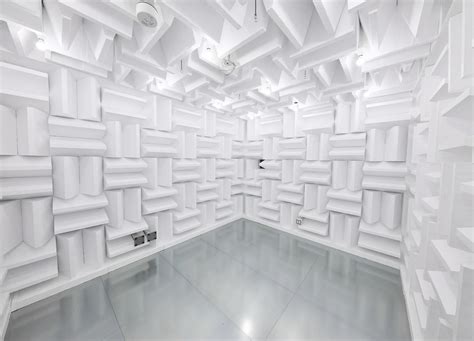

- Acoustic Treatment: The walls, ceiling, and floor are covered with sound-absorbing materials, usually wedge-shaped foam or fiberglass. These materials are designed to absorb sound waves across a wide frequency range.
- Isolation: The chamber is often built within a larger structure to isolate it from external noise. This can include double walls, floating floors, and vibration isolation systems.
- Controlled Environment: Temperature, humidity, and other environmental factors are carefully controlled to ensure consistent conditions for testing and measurement.
- Measurement Equipment: High-precision microphones, speakers, and other audio equipment are used to measure sound within the chamber.
Applications of Anechoic Acoustic Chambers
The Anechoic Acoustic Chamber finds applications in various fields, each benefiting from the unique properties of the chamber. Some of the key applications include:
Audio Equipment Testing: Manufacturers of audio equipment, such as speakers, microphones, and headphones, use anechoic chambers to test the performance of their products. The controlled environment allows for accurate measurement of frequency response, distortion, and other critical parameters.
Speech Research: Researchers studying speech and hearing use anechoic chambers to analyze the acoustic properties of speech. This helps in understanding how sound is produced and perceived, leading to advancements in speech recognition and hearing aids.
Noise-Canceling Technologies: Developers of noise-canceling technologies rely on anechoic chambers to test and refine their products. The absence of external noise allows for precise measurement of the effectiveness of noise-canceling algorithms.

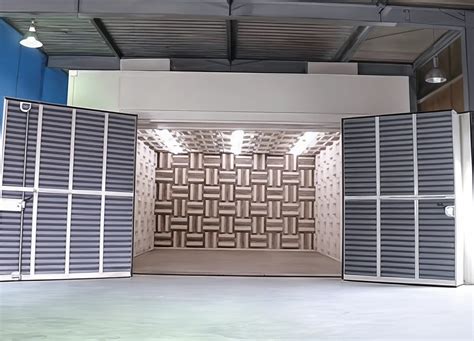

Automotive Industry: Car manufacturers use anechoic chambers to test the acoustic properties of vehicles. This includes measuring the noise levels inside the car and the effectiveness of sound insulation materials.
Aerospace and Defense: In the aerospace and defense sectors, anechoic chambers are used to test the acoustic properties of aircraft, missiles, and other vehicles. This helps in reducing noise pollution and improving the performance of these vehicles.
Architectural Acoustics: Architects and acousticians use anechoic chambers to study the acoustic properties of buildings and public spaces. This helps in designing spaces that are acoustically pleasing and free from unwanted noise.
Designing an Anechoic Acoustic Chamber
Designing an Anechoic Acoustic Chamber requires careful consideration of various factors to ensure optimal performance. The key steps in designing an anechoic chamber include:
Site Selection: Choose a location that is free from external noise and vibrations. This can be a dedicated building or a room within an existing structure.
Room Dimensions: The size of the chamber depends on the intended use. Larger chambers are needed for testing large objects, while smaller chambers can be used for precise measurements of small components.
Acoustic Treatment: Select appropriate sound-absorbing materials and design the layout of the wedges or panels to cover the walls, ceiling, and floor. The depth and arrangement of the wedges are crucial for absorbing sound across a wide frequency range.
Isolation: Implement isolation techniques to prevent external noise and vibrations from entering the chamber. This can include double walls, floating floors, and vibration isolation systems.
Environmental Control: Install systems to control temperature, humidity, and other environmental factors. This ensures consistent conditions for testing and measurement.
Measurement Equipment: Choose high-precision microphones, speakers, and other audio equipment suitable for the intended use of the chamber. Ensure that the equipment is calibrated and maintained for accurate measurements.
📝 Note: The design of an Anechoic Acoustic Chamber should be tailored to the specific needs of the user. Consulting with acoustics experts can help in optimizing the design for the intended applications.
Building an Anechoic Acoustic Chamber
Building an Anechoic Acoustic Chamber involves several steps, from site preparation to the installation of acoustic treatment and measurement equipment. The key steps in building an anechoic chamber include:
Site Preparation: Prepare the site by ensuring it is free from external noise and vibrations. This may involve constructing a dedicated building or modifying an existing room.
Structural Construction: Build the structural framework of the chamber, including walls, ceiling, and floor. Ensure that the structure is robust and capable of supporting the acoustic treatment and isolation systems.
Acoustic Treatment Installation: Install the sound-absorbing materials, such as wedge-shaped foam or fiberglass panels, on the walls, ceiling, and floor. Ensure that the materials are securely fastened and cover the entire surface area.
Isolation Systems: Implement isolation techniques to prevent external noise and vibrations from entering the chamber. This can include double walls, floating floors, and vibration isolation systems.
Environmental Control Systems: Install systems to control temperature, humidity, and other environmental factors. This ensures consistent conditions for testing and measurement.
Measurement Equipment Installation: Install high-precision microphones, speakers, and other audio equipment. Ensure that the equipment is calibrated and maintained for accurate measurements.
Testing and Calibration: Conduct thorough testing and calibration of the chamber to ensure it meets the required performance standards. This includes measuring the acoustic properties of the chamber and verifying the accuracy of the measurement equipment.
📝 Note: Building an Anechoic Acoustic Chamber requires expertise in acoustics and construction. Working with experienced professionals can help ensure the chamber is built to the highest standards.
Maintaining an Anechoic Acoustic Chamber
Maintaining an Anechoic Acoustic Chamber is essential to ensure its continued performance and accuracy. Regular maintenance and inspections help identify and address any issues that may affect the chamber's functionality. The key aspects of maintaining an anechoic chamber include:
Regular Inspections: Conduct regular inspections of the chamber to check for any signs of wear and tear, damage, or deterioration. This includes inspecting the acoustic treatment, isolation systems, and environmental control systems.
Cleaning and Maintenance: Clean the chamber regularly to remove dust, dirt, and other contaminants that can affect the performance of the acoustic treatment and measurement equipment. Ensure that the cleaning methods used do not damage the sound-absorbing materials.
Calibration of Equipment: Calibrate the measurement equipment regularly to ensure accurate and reliable measurements. This includes microphones, speakers, and other audio equipment used in the chamber.
Environmental Control: Monitor and maintain the environmental control systems to ensure consistent conditions for testing and measurement. This includes temperature, humidity, and other factors that can affect the performance of the chamber.
Repairs and Upgrades: Address any issues identified during inspections and maintenance. This may include repairing or replacing damaged components, upgrading the acoustic treatment, or improving the isolation systems.
📝 Note: Regular maintenance and inspections are crucial for the long-term performance and accuracy of an Anechoic Acoustic Chamber. Working with experienced professionals can help ensure the chamber is maintained to the highest standards.
Challenges and Considerations
While Anechoic Acoustic Chambers offer unparalleled precision in sound measurement and analysis, they also present several challenges and considerations. Some of the key challenges include:
Cost: Building and maintaining an anechoic chamber can be expensive. The cost includes the construction of the chamber, the installation of acoustic treatment and isolation systems, and the purchase of high-precision measurement equipment.
Space Requirements: Anechoic chambers require a significant amount of space, both for the chamber itself and for the supporting infrastructure. This can be a challenge in urban or densely populated areas.
Environmental Control: Maintaining consistent environmental conditions within the chamber can be challenging. This includes controlling temperature, humidity, and other factors that can affect the performance of the chamber.
Noise Isolation: Ensuring complete isolation from external noise and vibrations can be difficult. This requires robust isolation systems and careful site selection.
Maintenance: Regular maintenance and inspections are essential to ensure the continued performance and accuracy of the chamber. This can be time-consuming and costly.
Safety: Working in an anechoic chamber can present safety hazards, such as the risk of falling objects or exposure to high sound levels. Proper safety measures and training are essential to ensure the safety of personnel working in the chamber.
📝 Note: Addressing these challenges requires careful planning and consideration. Working with experienced professionals can help overcome these challenges and ensure the successful operation of an Anechoic Acoustic Chamber.
Future Trends in Anechoic Acoustic Chambers
The field of acoustics is continually evolving, and Anechoic Acoustic Chambers are no exception. Several trends are shaping the future of anechoic chambers, including:
Advanced Materials: The development of new sound-absorbing materials and technologies is improving the performance of anechoic chambers. These materials offer better absorption across a wider frequency range and are more durable and easier to maintain.
Automation and AI: The integration of automation and artificial intelligence (AI) is enhancing the functionality of anechoic chambers. AI-driven systems can automate the calibration and maintenance of measurement equipment, improving the accuracy and efficiency of testing and measurement.
Virtual and Augmented Reality: Virtual and augmented reality (VR/AR) technologies are being used to simulate the conditions of an anechoic chamber. This allows for remote testing and measurement, reducing the need for physical access to the chamber.
Sustainability: There is a growing focus on sustainability in the design and operation of anechoic chambers. This includes the use of eco-friendly materials, energy-efficient systems, and sustainable construction practices.
Miniaturization: The development of smaller, more portable anechoic chambers is making it possible to conduct precise sound measurements in a wider range of settings. This is particularly useful for field testing and on-site measurements.
📝 Note: Staying abreast of these trends can help in optimizing the design, construction, and operation of Anechoic Acoustic Chambers. Working with experts in the field can provide valuable insights and guidance.
In conclusion, the Anechoic Acoustic Chamber is a critical tool in the field of acoustics and sound engineering. Its ability to provide a controlled environment free from echoes and external noise makes it indispensable for various applications, from audio equipment testing to speech research and noise-canceling technologies. Understanding the design, construction, and maintenance of anechoic chambers is essential for leveraging their full potential. As technology continues to advance, the future of anechoic chambers holds exciting possibilities, including the use of advanced materials, automation, and sustainability. By staying informed and working with experts, organizations can ensure that their anechoic chambers meet the highest standards of performance and accuracy.
