Understanding the fundamentals of operational amplifiers (op-amps) is crucial for anyone delving into analog electronics. Op-amps are versatile components used in a wide range of applications, from signal amplification to filtering and signal conditioning. One of the key concepts to grasp is the difference between amplifier inverting and noninverting configurations. These configurations determine how the op-amp processes the input signal, affecting the output in distinct ways.

Table of Contents

Understanding Op-Amps

An operational amplifier is a high-gain electronic voltage amplifier with a differential input and, usually, a single-ended output. Op-amps are designed to amplify the difference between two input voltages. The basic structure of an op-amp includes two inputs: the inverting input (-) and the noninverting input (+). The output voltage is determined by the difference between these two inputs, amplified by the op-amp's gain.

Inverting Amplifier Configuration

The inverting amplifier configuration is one of the most common and straightforward uses of an op-amp. In this setup, the input signal is applied to the inverting input (-), and the noninverting input (+) is grounded. A resistor (R1) is connected between the input signal and the inverting input, and a feedback resistor (Rf) is connected between the output and the inverting input.

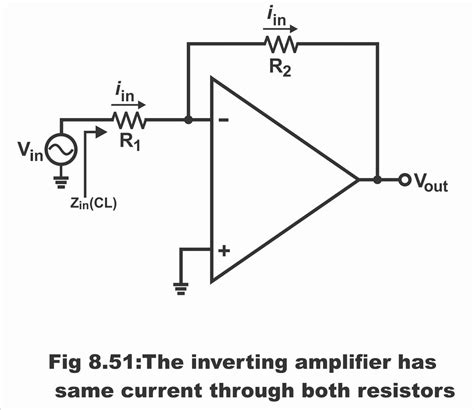

Here is a basic circuit diagram for an inverting amplifier:

The gain of an inverting amplifier is determined by the ratio of the feedback resistor (Rf) to the input resistor (R1). The formula for the gain (Av) is:

Av = -Rf / R1

Note the negative sign, which indicates that the output signal is inverted with respect to the input signal. This means that if the input signal is positive, the output signal will be negative, and vice versa.

🔍 Note: The inverting amplifier configuration is useful when you need to invert the input signal while amplifying it. This is particularly useful in applications like signal conditioning and filtering.

Noninverting Amplifier Configuration

The noninverting amplifier configuration is another fundamental op-amp setup. In this configuration, the input signal is applied to the noninverting input (+), and the inverting input (-) is connected to the output through a feedback resistor (Rf). A resistor (R1) is connected between the inverting input and ground.

Here is a basic circuit diagram for a noninverting amplifier:

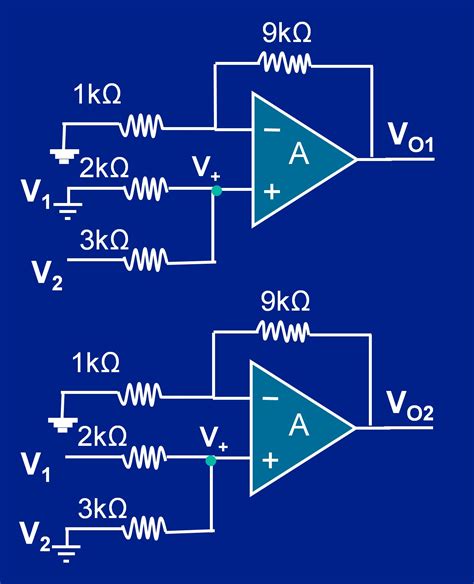

The gain of a noninverting amplifier is determined by the ratio of the sum of the feedback resistor (Rf) and the input resistor (R1) to the input resistor (R1). The formula for the gain (Av) is:

Av = 1 + (Rf / R1)

Unlike the inverting amplifier, the noninverting amplifier does not invert the input signal. The output signal maintains the same polarity as the input signal, making this configuration useful when inversion is not desired.

🔍 Note: The noninverting amplifier configuration is ideal for applications where signal inversion is not required, such as in buffer amplifiers and voltage followers.

Comparing Inverting and Noninverting Amplifiers

To better understand the differences between amplifier inverting and noninverting configurations, let's compare them side by side:

Feature	Inverting Amplifier	Noninverting Amplifier
Input Connection	Inverting input (-)	Noninverting input (+)
Output Polarity	Inverted	Non-inverted
Gain Formula	Av = -Rf / R1	Av = 1 + (Rf / R1)
Typical Applications	Signal conditioning, filtering	Buffer amplifiers, voltage followers

Practical Applications of Inverting and Noninverting Amplifiers

Both amplifier inverting and noninverting configurations have their unique applications in various electronic circuits. Understanding these applications can help you choose the right configuration for your specific needs.

Inverting Amplifier Applications

Signal Inversion: When you need to invert the polarity of a signal, the inverting amplifier is the go-to configuration. This is useful in applications like audio processing and signal conditioning.
Summing Amplifiers: Inverting amplifiers can be used to sum multiple input signals. By connecting multiple input resistors to the inverting input, you can create a summing amplifier that adds the input signals together.
Differential Amplifiers: Inverting amplifiers are also used in differential amplifier circuits, where the difference between two input signals is amplified. This is useful in applications like instrumentation and sensor interfaces.

Noninverting Amplifier Applications

Buffer Amplifiers: Noninverting amplifiers are often used as buffer amplifiers, which provide high input impedance and low output impedance. This is useful in applications where you need to isolate stages of a circuit or drive low-impedance loads.
Voltage Followers: When the feedback resistor (Rf) is zero, the noninverting amplifier acts as a voltage follower. This configuration provides unity gain (Av = 1) and is useful for buffering signals without amplification.
Precision Rectifiers: Noninverting amplifiers can be used in precision rectifier circuits, where the output signal follows the input signal without inversion. This is useful in applications like signal conditioning and power supply design.

Design Considerations for Inverting and Noninverting Amplifiers

When designing circuits using amplifier inverting and noninverting configurations, there are several important considerations to keep in mind:

Input Impedance: The input impedance of an inverting amplifier is determined by the input resistor (R1), while the input impedance of a noninverting amplifier is very high. This is because the noninverting input draws virtually no current.
Output Impedance: Both configurations have low output impedance, making them suitable for driving low-impedance loads. However, the output impedance of a noninverting amplifier is generally lower than that of an inverting amplifier.
Gain Stability: The gain of both configurations is determined by the ratio of resistors. It is important to use high-precision resistors to ensure stable gain. Additionally, temperature changes can affect resistor values, so temperature compensation may be necessary in some applications.
Frequency Response: The frequency response of an op-amp circuit is affected by the gain and the op-amp's internal characteristics. It is important to consider the op-amp's bandwidth and slew rate when designing high-frequency circuits.

🔍 Note: Always refer to the op-amp's datasheet for specific characteristics and limitations. This will help you design more accurate and reliable circuits.

In summary, understanding the differences between amplifier inverting and noninverting configurations is essential for designing effective analog circuits. Each configuration has its unique characteristics and applications, making them suitable for different types of signal processing tasks. By carefully considering the design requirements and selecting the appropriate configuration, you can create robust and efficient electronic circuits.
