Ampere X Volt Watt

Understanding the relationship between Ampere, Volt, and Watt is fundamental for anyone working with electrical systems. These units are the building blocks of electrical engineering and are crucial for designing, analyzing, and troubleshooting electrical circuits. This post will delve into the definitions of Ampere, Volt, and Watt, their interrelationships, and practical applications in various electrical scenarios.

Table of Contents

Understanding Ampere

Ampere, often abbreviated as ‘A,’ is the unit of electrical current. It measures the flow of electric charge through a conductor. One Ampere is defined as the flow of one Coulomb of charge per second. In simpler terms, it quantifies how much electrical charge is moving through a wire at any given moment.

Understanding Volt

Volt, abbreviated as ‘V,’ is the unit of electrical potential difference or voltage. It measures the ‘force’ or ‘pressure’ that drives the electric current through a circuit. One Volt is defined as the potential difference between two points in a conductor when an electric current of one Ampere dissipates one Watt of power between those points.

Understanding Watt

Watt, abbreviated as ‘W,’ is the unit of power. It measures the rate at which electrical energy is transferred or converted. One Watt is defined as the power dissipated when a current of one Ampere flows through a resistance of one Ohm, resulting in a voltage drop of one Volt. In other words, it quantifies how much work is done per unit of time.

The Relationship Between Ampere, Volt, and Watt

The relationship between Ampere, Volt, and Watt is encapsulated in Ohm’s Law and the Power Law. Ohm’s Law states that the current (I) flowing through a conductor is directly proportional to the voltage (V) across it, provided the temperature remains constant. Mathematically, this is expressed as:

V = I * R

Where R is the resistance in Ohms.

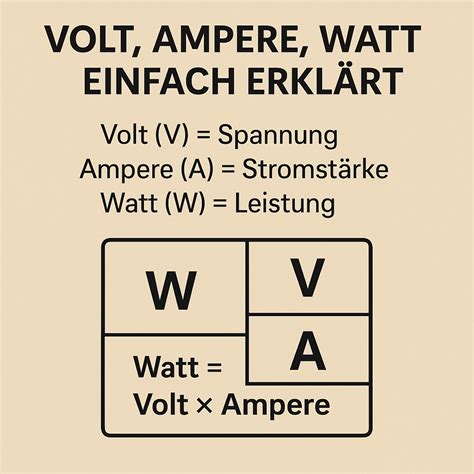

The Power Law, on the other hand, relates power (P) to voltage and current. It states that the power dissipated in a circuit is the product of the voltage and the current. Mathematically, this is expressed as:

P = V * I

This equation shows that the power in Ampere X Volt Watt is directly proportional to both the voltage and the current. For example, if you have a circuit with a voltage of 12 Volts and a current of 2 Amperes, the power dissipated would be:

P = 12V * 2A = 24W

Practical Applications

The concepts of Ampere, Volt, and Watt are applied in various practical scenarios. Here are a few examples:

Household Appliances: Every electrical appliance in your home has a power rating in Watts. For example, a 100-Watt light bulb consumes 100 Watts of power when in use. Understanding the power rating helps in managing energy consumption and costs.
Electronic Devices: Electronic devices like smartphones, laptops, and tablets have specific voltage and current requirements. For instance, a smartphone charger might provide 5 Volts at 2 Amperes, delivering 10 Watts of power to charge the device.
Automotive Systems: In cars, the battery provides a specific voltage (usually 12 Volts) and current to power various components. Understanding the Ampere X Volt Watt relationship helps in designing efficient electrical systems for vehicles.
Renewable Energy: In solar and wind energy systems, the power generated is measured in Watts. Knowing the voltage and current output helps in designing efficient energy storage and distribution systems.

Calculating Power in Different Scenarios

Let’s explore how to calculate power in different scenarios using the Ampere X Volt Watt relationship.

Scenario 1: Known Voltage and Current

If you know the voltage and current, you can directly calculate the power using the Power Law:

P = V * I

For example, if you have a circuit with 24 Volts and 5 Amperes, the power is:

P = 24V * 5A = 120W

Scenario 2: Known Resistance and Voltage

If you know the resistance and voltage, you can first find the current using Ohm’s Law, and then calculate the power:

I = V / R

P = V * I

For example, if you have a circuit with 12 Volts and a resistance of 6 Ohms, the current is:

I = 12V / 6Ω = 2A

And the power is:

P = 12V * 2A = 24W

Scenario 3: Known Resistance and Current

If you know the resistance and current, you can first find the voltage using Ohm’s Law, and then calculate the power:

V = I * R

P = V * I

For example, if you have a circuit with a resistance of 4 Ohms and a current of 3 Amperes, the voltage is:

V = 3A * 4Ω = 12V

And the power is:

P = 12V * 3A = 36W

Important Formulas

Here are the key formulas for quick reference:

Formula	Description
*V = I R**	Ohm’s Law: Voltage is equal to current times resistance.
*P = V I**	Power Law: Power is equal to voltage times current.
*P = I^2 R**	Power can also be calculated as current squared times resistance.
P = V^2 / R	Power can also be calculated as voltage squared divided by resistance.

💡 Note: These formulas are fundamental in electrical engineering and are used extensively in circuit analysis and design.

Real-World Examples

Let’s look at some real-world examples to illustrate the Ampere X Volt Watt relationship.

Example 1: Light Bulb

Consider a 60-Watt light bulb operating at 120 Volts. To find the current drawn by the bulb, we use the Power Law:

I = P / V

I = 60W / 120V = 0.5A

So, the light bulb draws 0.5 Amperes of current.

Example 2: Electric Heater

An electric heater has a resistance of 24 Ohms and operates at 240 Volts. To find the power dissipated by the heater, we first find the current using Ohm’s Law, and then calculate the power:

I = V / R

I = 240V / 24Ω = 10A

P = V * I

P = 240V * 10A = 2400W

So, the electric heater dissipates 2400 Watts of power.

Example 3: Solar Panel

A solar panel generates 100 Watts of power at 12 Volts. To find the current generated by the solar panel, we use the Power Law:

I = P / V

I = 100W / 12V = 8.33A

So, the solar panel generates 8.33 Amperes of current.

These examples illustrate how the Ampere X Volt Watt relationship is applied in various electrical systems.

Understanding the relationship between Ampere, Volt, and Watt is crucial for anyone working with electrical systems. These units are the foundation of electrical engineering and are used in a wide range of applications, from household appliances to renewable energy systems. By mastering the key formulas and concepts, you can design, analyze, and troubleshoot electrical circuits with confidence. The Ampere X Volt Watt relationship is a fundamental principle that underpins the entire field of electrical engineering, and a solid understanding of it is essential for success in this field.
