Alternating Current Coil

Electrical engineering is a field rich with innovation and discovery, and one of the most fundamental components in this domain is the Alternating Current Coil. This device plays a crucial role in various electrical systems, from power generation to electronic devices. Understanding the principles and applications of the Alternating Current Coil is essential for anyone interested in electrical engineering or related fields.

Table of Contents

Understanding Alternating Current

Before diving into the specifics of the Alternating Current Coil, it’s important to understand what alternating current (AC) is. AC is an electric current that periodically reverses direction, unlike direct current (DC), which flows in only one direction. The most common form of AC is sinusoidal, where the current varies smoothly over time.

The Basics of an Alternating Current Coil

An Alternating Current Coil is a type of inductor designed to work with AC circuits. It consists of a wire wound into a coil, often around a core made of a magnetic material like iron. The coil’s primary function is to store energy in a magnetic field when current flows through it. This stored energy can then be released back into the circuit, affecting the overall behavior of the electrical system.

Key Components of an Alternating Current Coil

The Alternating Current Coil is composed of several key components:

Wire: Typically made of copper or aluminum, the wire is the conductive material that carries the electric current.
Core: The core can be made of various materials, including air, iron, or ferrite. The choice of core material affects the coil’s inductance and efficiency.
Insulation: The wire is usually insulated to prevent short circuits and ensure safe operation.
Terminals: These are the points where the coil connects to the rest of the circuit.

How an Alternating Current Coil Works

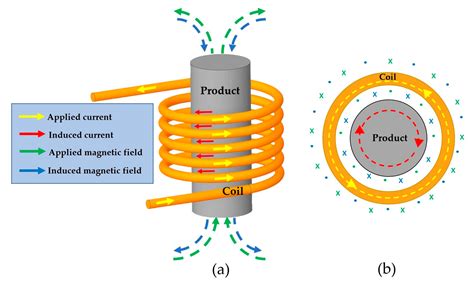

The operation of an Alternating Current Coil is based on Faraday’s Law of Induction, which states that a changing magnetic field induces an electromotive force (EMF) in a conductor. When AC flows through the coil, it creates a changing magnetic field. This field induces a voltage in the coil, which opposes the change in current. This property is known as inductance and is measured in henries (H).

Applications of Alternating Current Coils

The Alternating Current Coil has a wide range of applications in various fields:

Power Transformers: These devices use coils to step up or step down voltage levels in power transmission systems.
Inductive Sensors: These sensors use coils to detect the presence of metallic objects or changes in magnetic fields.
Filters in Electronic Circuits: Coils are used in filters to block or pass specific frequencies, essential for signal processing.
Motors and Generators: Coils are integral to the operation of electric motors and generators, converting electrical energy into mechanical energy and vice versa.

Design Considerations for Alternating Current Coils

Designing an effective Alternating Current Coil involves several considerations:

Inductance: The desired inductance value is crucial and depends on the application. It can be calculated using the formula L = (N^2 * μ * A) / l, where N is the number of turns, μ is the permeability of the core material, A is the cross-sectional area, and l is the length of the coil.
Core Material: The choice of core material affects the coil’s inductance and efficiency. Ferrite cores are commonly used for high-frequency applications, while iron cores are suitable for low-frequency applications.
Wire Gauge: The thickness of the wire affects the coil’s resistance and current-carrying capacity. Thicker wires have lower resistance but are bulkier.
Temperature Rating: The coil must be able to withstand the operating temperature without degrading. This is particularly important in high-power applications.

Calculating Inductance

To calculate the inductance of an Alternating Current Coil, you can use the following formula:

L = (N^2 * μ * A) / l

Where:

L is the inductance in henries (H).
N is the number of turns in the coil.
μ is the permeability of the core material.
A is the cross-sectional area of the coil.
l is the length of the coil.

For example, if you have a coil with 100 turns, a core permeability of 1.2566 x 10^-6 H/m (for air), a cross-sectional area of 0.01 m², and a length of 0.1 m, the inductance would be:

L = (100^2 * 1.2566 x 10^-6 * 0.01) / 0.1 = 0.012566 H or 12.566 mH

Types of Alternating Current Coils

There are several types of Alternating Current Coils, each designed for specific applications:

Air-Core Coils: These coils have no magnetic core and are used in high-frequency applications where low inductance is required.
Iron-Core Coils: These coils use an iron core to increase inductance and are suitable for low-frequency applications.
Ferrite-Core Coils: These coils use a ferrite core, which is ideal for high-frequency applications due to its low eddy current losses.
Toroidal Coils: These coils are wound in a toroidal shape, which reduces magnetic flux leakage and improves efficiency.

Testing and Measuring Alternating Current Coils

To ensure the proper functioning of an Alternating Current Coil, it is essential to test and measure its parameters. Here are some common methods:

Inductance Measurement: Use an LCR meter to measure the inductance of the coil. This device applies a known frequency and measures the reactance, from which the inductance can be calculated.
Resistance Measurement: Measure the DC resistance of the coil using a multimeter. This helps in determining the wire gauge and the overall health of the coil.
Quality Factor (Q) Measurement: The quality factor is a measure of the coil’s efficiency. It can be calculated using the formula Q = (2πfL) / R, where f is the frequency, L is the inductance, and R is the resistance.

🔍 Note: Always ensure that the testing equipment is calibrated and that the measurements are taken under controlled conditions to avoid inaccuracies.

Safety Considerations

Working with Alternating Current Coils involves handling electrical components, which can be hazardous if not done correctly. Here are some safety considerations:

Insulation: Ensure that all wires are properly insulated to prevent short circuits.
Grounding: Properly ground all equipment to avoid electrical shocks.
Voltage Levels: Be aware of the voltage levels involved and use appropriate safety measures, such as insulated gloves and safety glasses.
Heat Dissipation: Ensure that the coil has adequate ventilation to dissipate heat, as high temperatures can degrade the insulation and core material.

⚠️ Note: Always follow safety protocols and guidelines when working with electrical components to prevent accidents and injuries.

Troubleshooting Alternating Current Coils

If an Alternating Current Coil is not functioning as expected, there are several steps you can take to troubleshoot the issue:

Check Connections: Ensure that all connections are secure and free of corrosion.
Measure Inductance: Use an LCR meter to verify that the inductance is within the expected range.
Inspect for Damage: Look for any physical damage to the coil, such as broken wires or cracks in the core.
Test Resistance: Measure the DC resistance to ensure that the wire is not damaged.

🛠️ Note: If the coil is still not functioning correctly after these checks, it may need to be replaced.

Future Trends in Alternating Current Coil Technology

The field of electrical engineering is constantly evolving, and Alternating Current Coils are no exception. Some future trends include:

Advanced Materials: The development of new materials with better magnetic properties can improve the efficiency and performance of coils.
Miniaturization: As electronic devices become smaller, there is a growing demand for compact and efficient coils.
Smart Coils: Integration of sensors and microcontrollers can enable coils to monitor their own performance and adjust parameters in real-time.
Sustainable Designs: There is a growing emphasis on designing coils that are more environmentally friendly and energy-efficient.

In conclusion, the Alternating Current Coil is a fundamental component in electrical engineering with a wide range of applications. Understanding its principles, design considerations, and safety measures is crucial for anyone working in this field. As technology advances, the future of Alternating Current Coils looks promising, with innovations that will enhance their performance and efficiency.
