Air Conditioning Wiring Schematic

Understanding the intricacies of an Air Conditioning Wiring Schematic is crucial for anyone involved in HVAC installation, maintenance, or repair. Whether you are a professional technician or a DIY enthusiast, having a solid grasp of these schematics can save you time, effort, and potential headaches. This guide will walk you through the essentials of reading and interpreting an Air Conditioning Wiring Schematic, ensuring you have the knowledge to tackle any wiring challenge.

Understanding the Basics of Air Conditioning Wiring

Before diving into the specifics of an Air Conditioning Wiring Schematic, it's important to understand the basic components and their functions. An air conditioning system typically consists of several key parts:

• Compressor
• Condenser
• Evaporator
• Expansion Valve
• Fan
• Thermostat
• Control Board

Each of these components plays a vital role in the cooling process, and they are all interconnected through a complex network of wires. The Air Conditioning Wiring Schematic provides a visual representation of these connections, making it easier to understand how the system operates.

Reading an Air Conditioning Wiring Schematic

An Air Conditioning Wiring Schematic can seem daunting at first glance, but with a systematic approach, you can decipher it effectively. Here are the steps to follow:

Identify the Components

The first step is to identify the various components depicted in the schematic. Each component is usually represented by a symbol, and these symbols are often accompanied by labels or numbers. Familiarize yourself with the common symbols used in HVAC schematics:

• Compressor: Often represented by a rectangle with a coil inside.
• Condenser: Typically shown as a series of coils or a zigzag line.
• Evaporator: Similar to the condenser but usually labeled differently.
• Expansion Valve: Often depicted as a small valve symbol.
• Fan: Usually shown as a circle with blades.
• Thermostat: Represented by a thermometer-like symbol.
• Control Board: Often shown as a rectangular box with various connections.

Follow the Wiring Path

Once you have identified the components, the next step is to follow the wiring path. The wires are usually represented by lines connecting the various components. Pay close attention to the color coding and labeling of the wires, as this can provide crucial information about their function.

For example, a red wire might indicate a power supply, while a blue wire could be a control signal. Understanding these color codes can help you trace the wiring more efficiently.

Understand the Symbols and Connections

In addition to the component symbols, an Air Conditioning Wiring Schematic will include various other symbols and markings. These can indicate:

• Power sources
• Ground connections
• Control signals
• Safety features

For instance, a ground connection might be represented by a triangle with a horizontal line, while a power source could be shown as a circle with a plus or minus sign. Familiarize yourself with these symbols to gain a comprehensive understanding of the schematic.

Common Air Conditioning Wiring Schematics

Different types of air conditioning systems will have different wiring schematics. Here are some common types and their typical wiring configurations:

Split System Air Conditioners

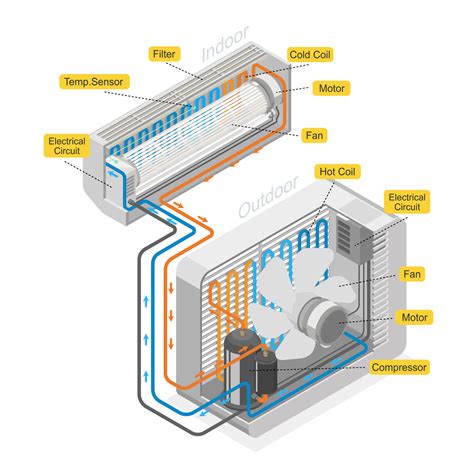

Split system air conditioners consist of an outdoor unit (condenser and compressor) and an indoor unit (evaporator and fan). The wiring schematic for a split system typically includes:

• Power supply to the outdoor unit
• Control wires between the indoor and outdoor units
• Thermostat wiring

Here is a simplified example of a split system wiring schematic:

🔍 Note: Always ensure that the power supply is turned off before working on any wiring to avoid electrical hazards.

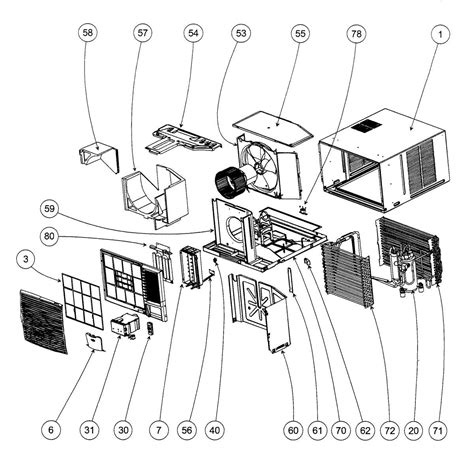

Window Air Conditioners

Window air conditioners are self-contained units that include all components in a single housing. The wiring schematic for a window unit is generally simpler and includes:

• Power supply
• Control wires
• Thermostat wiring

Here is a simplified example of a window air conditioner wiring schematic:

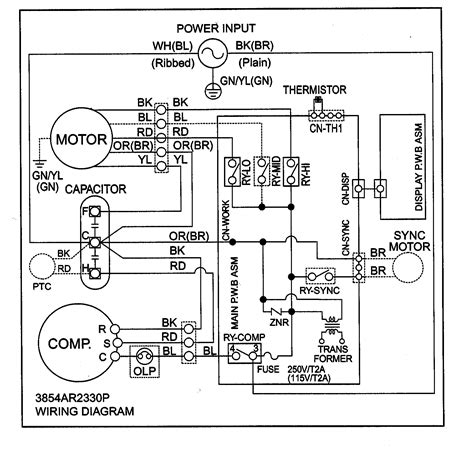

🔍 Note: Ensure that the unit is unplugged from the power source before attempting any repairs or modifications.

Central Air Conditioning Systems

Central air conditioning systems are more complex and typically include a network of ducts and multiple components. The wiring schematic for a central system will include:

• Power supply to the outdoor unit
• Control wires between the indoor and outdoor units
• Thermostat wiring
• Ductwork connections

Here is a simplified example of a central air conditioning system wiring schematic:

🔍 Note: Central systems often require professional installation and maintenance due to their complexity.

Troubleshooting with an Air Conditioning Wiring Schematic

An Air Conditioning Wiring Schematic is not just a tool for installation; it is also invaluable for troubleshooting. When your air conditioning system malfunctions, the schematic can help you identify and resolve the issue. Here are some common troubleshooting steps:

Check for Loose Connections

Loose connections are a common cause of air conditioning problems. Use the schematic to trace the wiring and ensure that all connections are secure. Pay particular attention to the connections at the control board and thermostat.

Inspect the Wires for Damage

Damaged wires can disrupt the flow of electricity and cause the system to malfunction. Inspect the wires for any signs of wear, fraying, or corrosion. Replace any damaged wires as needed.

Test the Components

Use the schematic to test individual components. For example, you can use a multimeter to check the continuity of the wires and the functionality of the control board. This can help you pinpoint the source of the problem.

Verify the Power Supply

Ensure that the power supply to the air conditioning unit is stable and adequate. Use the schematic to trace the power supply wires and verify that they are properly connected and functioning.

🔍 Note: Always follow safety protocols when working with electrical components to avoid injury or damage to the system.

Safety Precautions When Working with Air Conditioning Wiring

Working with electrical systems, including air conditioning wiring, can be dangerous if not done correctly. Here are some essential safety precautions to keep in mind:

Turn Off the Power

Before beginning any work on the wiring, ensure that the power supply is turned off. This can be done by switching off the circuit breaker or unplugging the unit from the power source.

Use Proper Tools

Use insulated tools designed for electrical work to minimize the risk of electric shock. Avoid using metal tools that can conduct electricity.

Wear Protective Gear

Wear appropriate protective gear, including insulated gloves and safety glasses, to protect yourself from electrical hazards and debris.

Follow Manufacturer Guidelines

Always refer to the manufacturer's guidelines and the Air Conditioning Wiring Schematic provided with the unit. These documents contain specific instructions and safety warnings tailored to your system.

🔍 Note: If you are unsure about any aspect of the wiring or troubleshooting process, consult a professional technician to avoid potential hazards.

Conclusion

Understanding an Air Conditioning Wiring Schematic is essential for anyone involved in HVAC systems. By familiarizing yourself with the components, symbols, and wiring paths, you can effectively install, maintain, and troubleshoot air conditioning units. Always prioritize safety and follow the manufacturer’s guidelines to ensure a smooth and successful experience. With the right knowledge and tools, you can confidently tackle any air conditioning wiring challenge.
