When it comes to maintaining and diagnosing your vehicle's air conditioning system, having the right tools is essential. One of the most crucial tools for this task is an Ac Manifold Gauge Set. This set is designed to measure the pressure and temperature of the refrigerant in your vehicle's AC system, helping you identify and fix issues efficiently. Whether you're a professional mechanic or a DIY enthusiast, understanding how to use an Ac Manifold Gauge Set can save you time and money.
Understanding the Ac Manifold Gauge Set

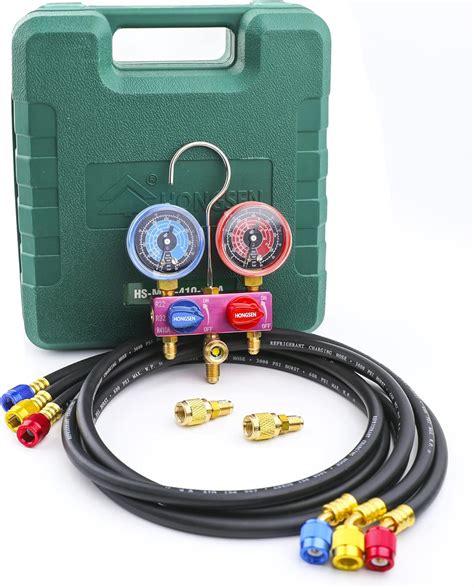

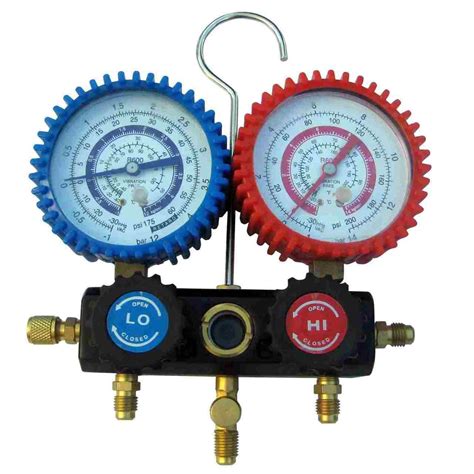

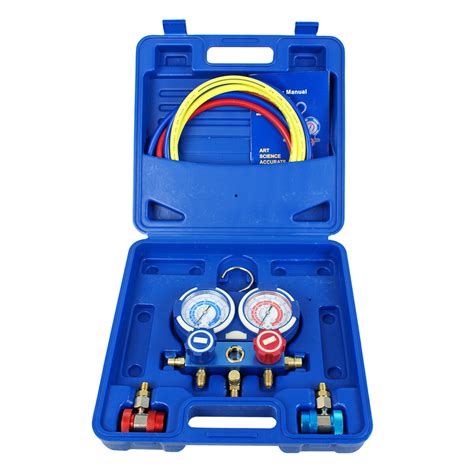

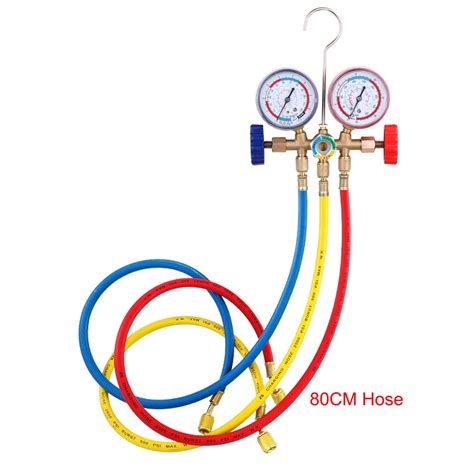

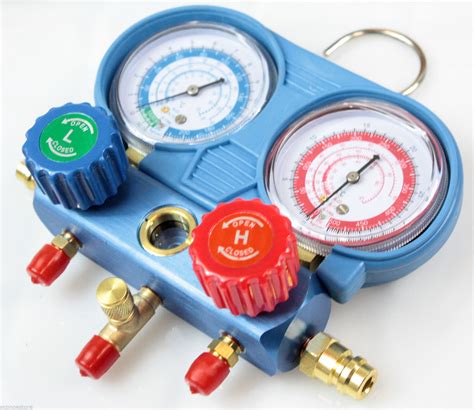

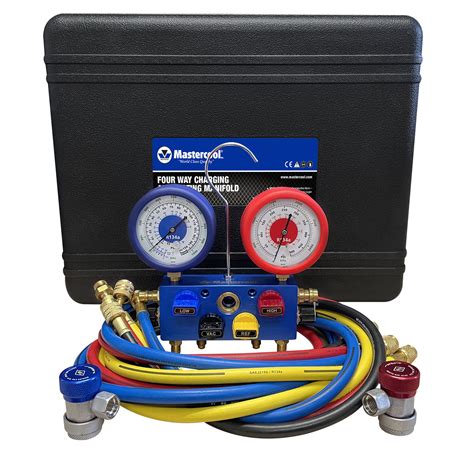

An Ac Manifold Gauge Set is a comprehensive tool that includes several components, each serving a specific purpose. The main components are:
- High-Pressure Gauge: Measures the pressure on the high side of the AC system.
- Low-Pressure Gauge: Measures the pressure on the low side of the AC system.
- Manifold Block: Connects to the high and low sides of the AC system and allows for the addition or removal of refrigerant.
- Hoses: Connect the manifold block to the AC system and to the refrigerant canister.
- Vacuum Pump: Used to evacuate the AC system of air and moisture before adding new refrigerant.
These components work together to provide a complete diagnostic and maintenance solution for your vehicle's AC system.
How to Use an Ac Manifold Gauge Set
Using an Ac Manifold Gauge Set involves several steps. Here’s a detailed guide to help you through the process:
Preparation
Before you begin, ensure you have the following:
- Ac Manifold Gauge Set
- Refrigerant (R-134a or R-1234yf, depending on your vehicle)
- Safety Glasses and Gloves
- Vehicle Owner’s Manual
It’s also important to understand the basics of your vehicle's AC system. Consult your owner’s manual for specific information about your vehicle's AC system, including the type of refrigerant it uses and the location of the service ports.
Connecting the Gauges
1. Locate the Service Ports: Find the high and low-side service ports on your vehicle's AC system. These are usually located near the compressor.
2. Connect the Hoses: Attach the high-pressure hose to the high-side service port and the low-pressure hose to the low-side service port. Ensure the connections are secure to prevent leaks.
3. Turn on the AC: Start your vehicle and turn on the AC to its highest setting. This will help you get accurate pressure readings.
Reading the Gauges
Once the AC is running, observe the readings on the high and low-pressure gauges. Normal operating pressures can vary depending on the ambient temperature and the type of refrigerant. Here are some general guidelines:
| Condition | High-Pressure Gauge (PSI) | Low-Pressure Gauge (PSI) |
|---|---|---|
| Normal Operation | 150-250 | 25-50 |
| Overcharged System | >250 | N/A |
| Undercharged System | <250 | N/A |
| Low Refrigerant | N/A | <25 |
If the readings are outside the normal range, it may indicate a problem with the AC system, such as a refrigerant leak, a faulty compressor, or a clogged orifice tube.
Adding or Removing Refrigerant
If you need to add or remove refrigerant, follow these steps:
1. Adding Refrigerant: Attach the refrigerant canister to the manifold block and open the valve on the canister. Slowly add refrigerant to the low side of the system until the pressure readings return to normal.
2. Removing Refrigerant: Connect the manifold block to a recovery machine and follow the manufacturer's instructions to safely remove the refrigerant from the system.
🔧 Note: Always wear safety glasses and gloves when handling refrigerant. Refrigerant can cause skin irritation and eye damage.
Evacuating the System
Before adding new refrigerant, it’s crucial to evacuate the AC system of air and moisture. This step ensures that the new refrigerant will work efficiently and prevents contamination.
1. Connect the Vacuum Pump: Attach the vacuum pump to the manifold block and turn it on.
2. Evacuate the System: Allow the vacuum pump to run for at least 30 minutes to ensure all air and moisture are removed from the system.
3. Check for Leaks: After evacuating the system, check for any leaks by observing the pressure readings. If the pressure drops, it indicates a leak that needs to be repaired.
🔧 Note: Always follow the manufacturer's instructions for using the vacuum pump to ensure safety and effectiveness.
Common Issues and Troubleshooting
Even with the best tools, issues can arise. Here are some common problems and how to troubleshoot them using an Ac Manifold Gauge Set:
Low Refrigerant Levels
If the low-pressure gauge reads below 25 PSI, it indicates low refrigerant levels. This can be caused by a leak in the system. To troubleshoot:
- Check for Leaks: Use a leak detector to find the source of the leak.
- Repair the Leak: Fix the leak and evacuate the system before adding new refrigerant.
- Add Refrigerant: Use the Ac Manifold Gauge Set to add the correct amount of refrigerant.
High Refrigerant Levels
If the high-pressure gauge reads above 250 PSI, it indicates an overcharged system. This can cause the compressor to overheat and fail. To troubleshoot:
- Remove Excess Refrigerant: Use the Ac Manifold Gauge Set to remove the excess refrigerant until the pressure readings return to normal.
- Check for Leaks: Ensure there are no leaks in the system that could cause the refrigerant to escape.
Compressor Issues
If the AC system is not cooling properly, the compressor may be faulty. To troubleshoot:
- Check Pressure Readings: Use the Ac Manifold Gauge Set to check the pressure readings. If they are outside the normal range, it may indicate a compressor issue.
- Inspect the Compressor: Look for signs of wear or damage, such as leaks or unusual noises.
- Replace the Compressor: If the compressor is faulty, replace it and evacuate the system before adding new refrigerant.
Maintaining Your Ac Manifold Gauge Set
To ensure the longevity and accuracy of your Ac Manifold Gauge Set, follow these maintenance tips:
- Store Properly: Keep the gauge set in a cool, dry place away from direct sunlight and extreme temperatures.
- Clean Regularly: Clean the hoses and connections regularly to prevent contamination.
- Inspect for Damage: Check the hoses, gauges, and manifold block for any signs of wear or damage.
- Calibrate Periodically: Have the gauges calibrated periodically to ensure accurate readings.
By following these maintenance tips, you can extend the life of your Ac Manifold Gauge Set and ensure it continues to provide accurate readings.
Using an Ac Manifold Gauge Set is an essential skill for anyone looking to maintain or diagnose their vehicle's air conditioning system. By understanding how to use this tool effectively, you can save time and money while ensuring your AC system runs smoothly. Whether you're a professional mechanic or a DIY enthusiast, investing in a quality Ac Manifold Gauge Set is a wise decision that will pay off in the long run.
In summary, an Ac Manifold Gauge Set is a versatile and essential tool for diagnosing and maintaining your vehicle’s air conditioning system. By following the steps outlined in this guide, you can use this tool to identify and fix issues efficiently, ensuring your AC system runs smoothly and effectively. Regular maintenance and proper use of the Ac Manifold Gauge Set will help you keep your vehicle’s AC system in top condition, providing comfort and reliability for years to come.
