A Not Gate

In the realm of digital electronics and logic design, the A Not Gate plays a crucial role in manipulating binary data. This fundamental component is essential for understanding more complex digital circuits and systems. This post delves into the intricacies of the A Not Gate, its functionality, applications, and significance in modern technology.

Table of Contents

Understanding the A Not Gate

The A Not Gate, also known as an inverter, is a basic logic gate that performs a simple yet vital function: it inverts the input signal. In other words, if the input is 0, the output is 1, and if the input is 1, the output is 0. This inversion is the cornerstone of many digital circuits, enabling the creation of more complex logic operations.

To grasp the concept of the A Not Gate, it's essential to understand binary logic. Binary logic operates on two states: 0 and 1. These states represent the fundamental building blocks of digital information. The A Not Gate takes a single binary input and produces the opposite binary output.

Symbol and Truth Table

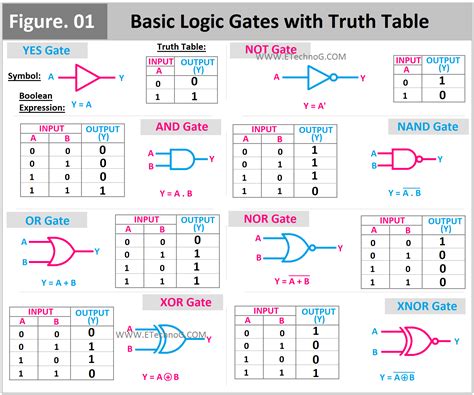

The symbol for the A Not Gate is straightforward, consisting of a triangle with a small circle at the output. The circle represents the inversion of the input signal. The truth table for the A Not Gate is equally simple:

A	Not A
0	1
1	0

This table illustrates that for any input A, the output Not A is the opposite of A.

Applications of the A Not Gate

The A Not Gate finds applications in various digital circuits and systems. Some of the key areas where the A Not Gate is utilized include:

Signal Inversion: The primary function of the A Not Gate is to invert signals. This is crucial in circuits where the signal needs to be reversed for proper functioning.
Buffer Circuits: In some cases, the A Not Gate is used as a buffer to isolate stages of a circuit, preventing signal degradation.

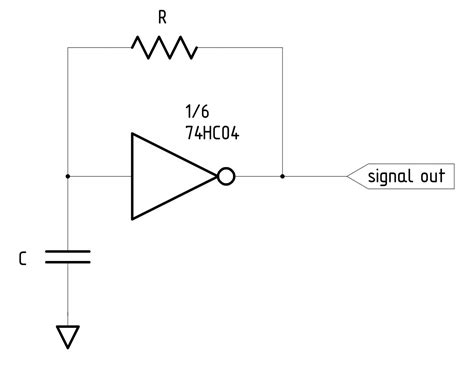

Clock Signal Generation: In digital systems, clock signals are often generated using A Not Gates to create precise timing pulses.
Logic Design: The A Not Gate is a fundamental component in designing more complex logic gates such as NAND, NOR, XOR, and XNOR gates.

Building an A Not Gate

Constructing an A Not Gate can be done using various technologies, including discrete components, integrated circuits (ICs), and programmable logic devices (PLDs). Here, we will focus on building an A Not Gate using a basic transistor circuit.

To build an A Not Gate using a transistor, follow these steps:

Select a suitable NPN transistor, such as the 2N2222.
Connect the collector of the transistor to the positive supply voltage (Vcc).
Connect a resistor (typically 1 kΩ) between the collector and the output.
Connect the emitter of the transistor to the ground.
Connect the base of the transistor to the input signal through a resistor (typically 1 kΩ).

When the input signal is high (1), the transistor conducts, pulling the output low (0). When the input signal is low (0), the transistor does not conduct, allowing the output to be pulled high (1) through the resistor.

🔍 Note: Ensure that the resistor values are chosen appropriately to match the supply voltage and transistor characteristics.

A Not Gate in Integrated Circuits

In modern digital systems, A Not Gates are often implemented using integrated circuits (ICs). These ICs contain multiple A Not Gates on a single chip, making them compact and efficient. Some common ICs that include A Not Gates are the 7404 and 74LS04, which contain six inverters each.

These ICs are widely used in various applications, including:

Microprocessor design
Digital signal processing
Communication systems
Control systems

Using ICs for A Not Gates offers several advantages, such as:

Compact size
Reliability
Cost-effectiveness
Ease of integration

A Not Gate in Programmable Logic Devices

Programmable Logic Devices (PLDs) such as Field-Programmable Gate Arrays (FPGAs) and Complex Programmable Logic Devices (CPLDs) also utilize A Not Gates. These devices allow for the creation of custom digital circuits by programming the logic gates, including A Not Gates, to perform specific functions.

PLDs offer flexibility and reconfigurability, making them ideal for prototyping and developing complex digital systems. The A Not Gate in PLDs can be configured to perform various logic operations, enabling the design of intricate circuits with ease.

Some popular PLDs that support A Not Gates include:

Xilinx Spartan series FPGAs
Altera Cyclone series FPGAs
Lattice ispMACH series CPLDs

Using PLDs for A Not Gates provides several benefits, such as:

Flexibility in design
Reconfigurability
High performance
Scalability

A Not Gate in Digital Systems

The A Not Gate is a fundamental building block in digital systems, enabling the creation of more complex logic operations. By combining multiple A Not Gates with other logic gates, designers can build a wide range of digital circuits, including:

Arithmetic Logic Units (ALUs)
Memory controllers
Microprocessors
Digital filters

In digital systems, the A Not Gate plays a crucial role in signal processing, data manipulation, and control operations. Its ability to invert signals makes it an essential component in various applications, from simple digital circuits to complex computing systems.

Some key digital systems that utilize A Not Gates include:

Computers and laptops
Smartphones and tablets
Automotive electronics
Industrial control systems

In these systems, the A Not Gate contributes to the overall functionality and performance, ensuring reliable and efficient operation.

In conclusion, the A Not Gate is a vital component in digital electronics and logic design. Its simple yet powerful function of inverting signals makes it indispensable in various applications, from basic digital circuits to complex computing systems. Understanding the A Not Gate and its applications is essential for anyone involved in digital design and electronics. By mastering the A Not Gate, designers can create innovative and efficient digital solutions that drive modern technology forward.
