Understanding the electrical properties of wires is crucial for any electrical project, whether you're a professional electrician or a DIY enthusiast. One of the most common questions that arise is, "What is the ampacity of 8 AWG wire?" This question is essential because it determines the maximum current that the wire can safely carry without overheating or causing a fire hazard. In this post, we will delve into the specifics of 8 AWG wire amps, its applications, and safety considerations.
What is 8 AWG Wire?
8 AWG (American Wire Gauge) wire is a standard size of electrical wire used in various applications. The AWG system is a standardized way of denoting wire diameters, with lower gauge numbers indicating thicker wires. An 8 AWG wire has a diameter of approximately 0.1285 inches and is commonly used in residential and commercial electrical systems.
Understanding Ampacity
Ampacity refers to the maximum amount of electrical current a conductor can carry continuously under the conditions of use without exceeding its temperature rating. For 8 AWG wire, the ampacity can vary based on several factors, including the type of insulation, the ambient temperature, and the number of conductors bundled together.
8 AWG Wire Amps: Standard Ampacity
The standard ampacity for 8 AWG wire, as per the National Electrical Code (NEC), is 40 amps for copper conductors and 50 amps for aluminum conductors. However, these values can change based on the specific conditions of the installation. It’s essential to consult the NEC or a qualified electrician to determine the exact ampacity for your specific application.
Factors Affecting 8 AWG Wire Amps
Several factors can influence the ampacity of 8 AWG wire. Understanding these factors is crucial for ensuring the safety and efficiency of your electrical system.
- Insulation Type: Different types of insulation have varying temperature ratings. For example, THHN (Thermoplastic High Heat-resistant Nylon-coated) insulation can handle higher temperatures than PVC (Polyvinyl Chloride) insulation.
- Ambient Temperature: The surrounding temperature can affect the wire's ability to dissipate heat. Higher ambient temperatures can reduce the ampacity of the wire.
- Conductor Bundling: When multiple conductors are bundled together, the heat dissipation is reduced, which can lower the ampacity. The NEC provides correction factors for bundled conductors.
- Termination Points: The type of termination (e.g., screw terminals, lugs) can also affect the ampacity. Properly sized terminations are essential to prevent overheating.
Applications of 8 AWG Wire
8 AWG wire is versatile and used in a variety of applications, including:
- Residential Wiring: Often used for branch circuits in homes, such as for kitchen appliances, HVAC systems, and other high-power devices.
- Commercial Wiring: Commonly used in commercial buildings for lighting circuits, power outlets, and other electrical loads.

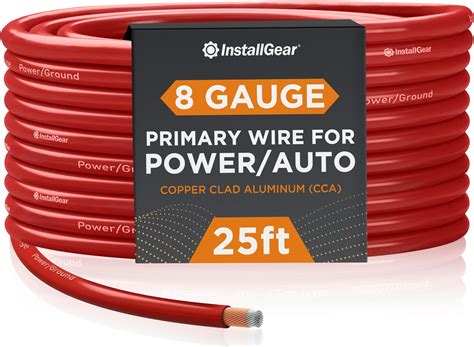

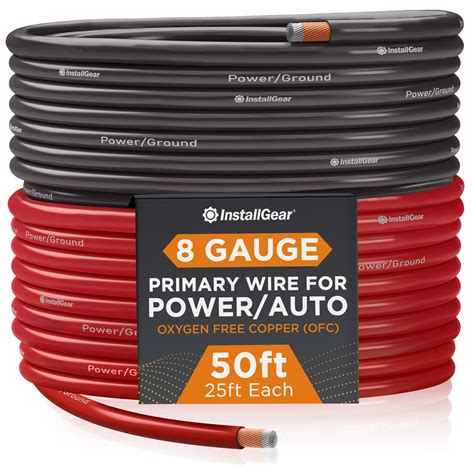

- Automotive Wiring: Used in heavy-duty automotive applications, such as in trucks and RVs, for powering high-current devices like winches and inverters.
- Renewable Energy Systems: Often used in solar and wind power systems to connect panels and inverters to the main electrical system.
Safety Considerations for 8 AWG Wire
When working with 8 AWG wire, safety should always be a top priority. Here are some key safety considerations:
- Proper Sizing: Ensure that the wire is appropriately sized for the current it will carry. Undersized wire can overheat and cause a fire.
- Correct Terminations: Use properly sized and rated terminations to prevent overheating and loose connections.
- Adequate Support: Secure the wire properly to prevent physical damage and ensure it can dissipate heat effectively.
- Regular Inspections: Periodically inspect the wire and connections for signs of wear, corrosion, or overheating.
🔧 Note: Always follow local electrical codes and regulations when installing or modifying electrical systems. Consulting with a licensed electrician is recommended for complex installations.
Installation Tips for 8 AWG Wire
Proper installation of 8 AWG wire is crucial for ensuring safety and reliability. Here are some tips for installing 8 AWG wire:
- Plan the Route: Carefully plan the route of the wire to avoid sharp bends and ensure it is easily accessible for future inspections.
- Use Appropriate Conduits: Protect the wire with appropriate conduits or cable trays to prevent physical damage and ensure proper support.
- Secure Connections: Use high-quality connectors and ensure all connections are tight and secure. Loose connections can cause overheating and arcing.
- Label and Document: Clearly label all wires and document the installation for future reference. This is especially important in complex systems.
🔧 Note: Always turn off the power supply before working on any electrical system. Use appropriate personal protective equipment (PPE) to prevent injuries.
Common Mistakes to Avoid
When working with 8 AWG wire, there are several common mistakes that can lead to safety hazards and system failures. Here are some mistakes to avoid:
- Overloading the Wire: Exceeding the ampacity of the wire can cause overheating and potential fires.
- Improper Terminations: Using undersized or poorly rated terminations can lead to loose connections and overheating.
- Inadequate Support: Failing to secure the wire properly can result in physical damage and reduced heat dissipation.
- Ignoring Local Codes: Not following local electrical codes and regulations can lead to unsafe installations and potential legal issues.
8 AWG Wire Amps: Comparison with Other Gauges
To better understand the ampacity of 8 AWG wire, it’s helpful to compare it with other common wire gauges. Here is a table showing the standard ampacity for various wire gauges:
| Wire Gauge | Copper Ampacity (Amps) | Aluminum Ampacity (Amps) |
|---|---|---|
| 6 AWG | 55 | 65 |
| 8 AWG | 40 | 50 |
| 10 AWG | 30 | 35 |
| 12 AWG | 20 | 25 |
| 14 AWG | 15 | 20 |
As shown in the table, 8 AWG wire has a higher ampacity compared to smaller gauges like 10 AWG and 12 AWG, making it suitable for higher-current applications. However, it has a lower ampacity compared to larger gauges like 6 AWG, which are used for even higher-current applications.
Understanding the ampacity of 8 AWG wire is essential for ensuring the safety and efficiency of your electrical system. By considering factors such as insulation type, ambient temperature, and conductor bundling, you can determine the appropriate ampacity for your specific application. Always follow local electrical codes and regulations, and consult with a licensed electrician for complex installations. With proper installation and maintenance, 8 AWG wire can provide reliable and safe electrical power for a variety of applications.
