7 Hemi Belt Diagram

Understanding the intricacies of a vehicle's engine can be daunting, but having a clear 7 Hemi Belt Diagram can make the process much more manageable. The 7 Hemi engine, known for its powerful performance and distinctive design, requires precise maintenance and understanding of its components. This guide will walk you through the essentials of the 7 Hemi Belt Diagram, helping you grasp the layout and function of the belts in this iconic engine.

Table of Contents

Understanding the 7 Hemi Engine

The 7 Hemi engine, often referred to as the 7.0L Hemi, is a high-performance V8 engine produced by Chrysler. It is renowned for its robust power output and reliability, making it a favorite among automotive enthusiasts. The engine’s design incorporates several key components, including the serpentine belt system, which is crucial for its operation.

The Importance of the Serpentine Belt System

The serpentine belt system in the 7 Hemi engine is a critical component that drives multiple accessories, including the alternator, power steering pump, air conditioning compressor, and water pump. This belt ensures that these components function smoothly, maintaining the engine’s overall performance and efficiency.

Components of the 7 Hemi Belt Diagram

The 7 Hemi Belt Diagram typically includes several key components. Understanding these components is essential for diagnosing and maintaining the engine. Here are the primary elements you will find in a 7 Hemi Belt Diagram:

Serpentine Belt: The main belt that drives all the accessories.
Tensioner: A device that maintains the correct tension on the serpentine belt.
Idler Pulley: A pulley that helps guide the belt and reduce wear.
Alternator: Generates electrical power for the vehicle.
Power Steering Pump: Provides hydraulic pressure for power steering.
Air Conditioning Compressor: Compresses refrigerant for the air conditioning system.
Water Pump: Circulates coolant through the engine to regulate temperature.

Reading the 7 Hemi Belt Diagram

To effectively use a 7 Hemi Belt Diagram, follow these steps:

Identify the Components: Locate each component on the diagram and familiarize yourself with its position and function.

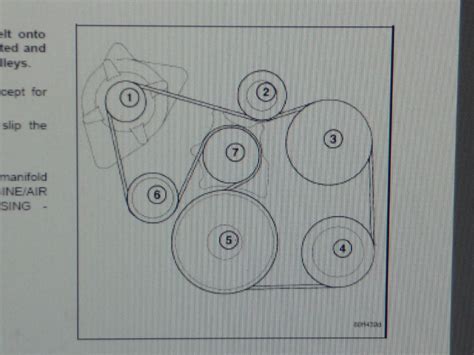

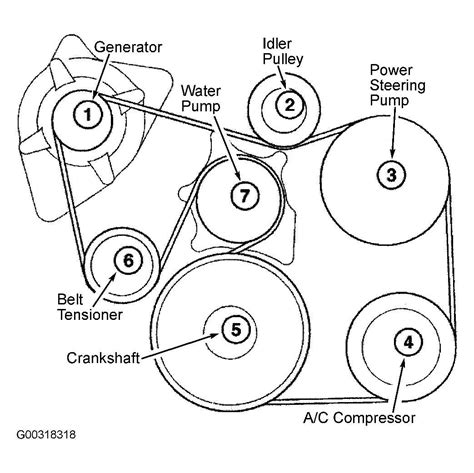

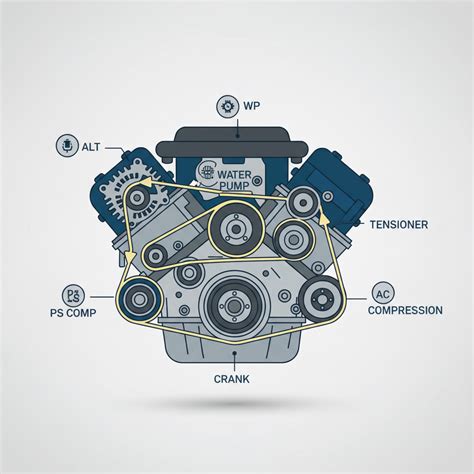

Trace the Belt Path: Follow the path of the serpentine belt as it wraps around each pulley and component. This will help you understand how the belt drives each accessory.
Check for Wear and Tear: Inspect the belt for signs of wear, such as cracks, fraying, or glazing. Replace the belt if necessary.
Adjust Tension: Ensure the tensioner is properly adjusted to maintain the correct tension on the belt. A loose belt can cause slippage and reduced performance.

🔧 Note: Always refer to the manufacturer’s guidelines for specific instructions on adjusting the tensioner and replacing the belt.

Common Issues with the 7 Hemi Belt System

While the 7 Hemi engine is generally reliable, the serpentine belt system can encounter several issues. Here are some common problems and their solutions:

Belt Slippage: This can be caused by a loose belt or a faulty tensioner. Check the belt tension and replace the tensioner if necessary.
Belt Noise: A squealing or grinding noise from the belt can indicate wear or misalignment. Inspect the belt for damage and ensure all pulleys are properly aligned.
Component Failure: If one of the accessories driven by the belt fails, it can cause the belt to slip or break. Diagnose and repair the faulty component promptly.

Maintenance Tips for the 7 Hemi Belt System

Regular maintenance is key to keeping the 7 Hemi belt system in optimal condition. Here are some tips to ensure longevity and performance:

Inspect the Belt Regularly: Check the belt for signs of wear and replace it every 60,000 to 100,000 miles, depending on driving conditions.
Check Tension: Ensure the belt tension is within the manufacturer’s specifications. Adjust the tensioner if necessary.
Lubricate Pulleys: Apply a small amount of lubricant to the pulleys to reduce friction and wear.
Replace Worn Components: If any of the accessories or pulleys show signs of wear, replace them promptly to prevent further damage.

Troubleshooting the 7 Hemi Belt System

If you encounter issues with the 7 Hemi belt system, follow these troubleshooting steps:

Listen for Unusual Noises: Pay attention to any squealing, grinding, or rattling sounds coming from the engine bay. These can indicate belt or pulley issues.
Check for Belt Slippage: Inspect the belt for signs of slippage, such as glazing or uneven wear.
Inspect the Tensioner: Ensure the tensioner is functioning correctly and maintaining the proper belt tension.
Diagnose Component Failure: If one of the accessories is not functioning properly, diagnose and repair the issue promptly.

Replacing the Serpentine Belt

Replacing the serpentine belt in a 7 Hemi engine is a straightforward process if you follow these steps:

Locate the Tensioner: Find the tensioner pulley, which is usually located near the crankshaft pulley.
Release the Tension: Use a breaker bar or ratchet to release the tension on the belt. This will allow you to remove the old belt.
Remove the Old Belt: Slide the old belt off the pulleys and discard it.
Install the New Belt: Route the new belt around the pulleys, following the 7 Hemi Belt Diagram for the correct path.
Adjust the Tension: Use the tensioner to apply the correct amount of tension to the new belt. Ensure the belt is properly aligned and not twisted.

🛠️ Note: Always refer to the manufacturer’s guidelines for specific instructions on replacing the serpentine belt.

Conclusion

Understanding the 7 Hemi Belt Diagram is essential for maintaining the performance and reliability of the 7 Hemi engine. By familiarizing yourself with the components and their functions, you can effectively diagnose and address any issues that arise. Regular maintenance and prompt troubleshooting will ensure that your 7 Hemi engine continues to deliver the power and performance you expect. Whether you are a seasoned mechanic or a DIY enthusiast, having a clear understanding of the 7 Hemi belt system will help you keep your engine in top condition.
