5X4.75 Bolt Pattern

Understanding the 5X4.75 bolt pattern is crucial for anyone involved in automotive maintenance, customization, or wheel fitting. This bolt pattern, also known as a lug pattern, refers to the arrangement of the lug holes on a vehicle's wheel. The 5X4.75 pattern indicates that there are five lug holes arranged in a circle with a diameter of 4.75 inches. This specific pattern is commonly found in various makes and models of vehicles, particularly in trucks and SUVs. Knowing the details of this bolt pattern can help ensure that you select the correct wheels for your vehicle, enhancing both performance and safety.

Table of Contents

Understanding Bolt Patterns

Before diving into the specifics of the 5X4.75 bolt pattern, it's essential to understand what a bolt pattern is and why it matters. A bolt pattern is the arrangement of the lug holes on a wheel, which must match the pattern on the vehicle's hub. The pattern is typically described by two numbers: the first number indicates the number of lug holes, and the second number indicates the diameter of the circle on which the lug holes are centered.

For example, a 5X4.75 bolt pattern means there are five lug holes arranged in a circle with a diameter of 4.75 inches. This pattern is crucial because it ensures that the wheel is properly aligned with the vehicle's hub, allowing for secure and safe attachment.

Identifying the 5X4.75 Bolt Pattern

Identifying the 5X4.75 bolt pattern on your vehicle is straightforward. Here are the steps to follow:

Inspect the wheel: Look at the back of the wheel where it meets the hub. You should see the lug holes arranged in a circular pattern.
Count the lug holes: Ensure there are five lug holes.

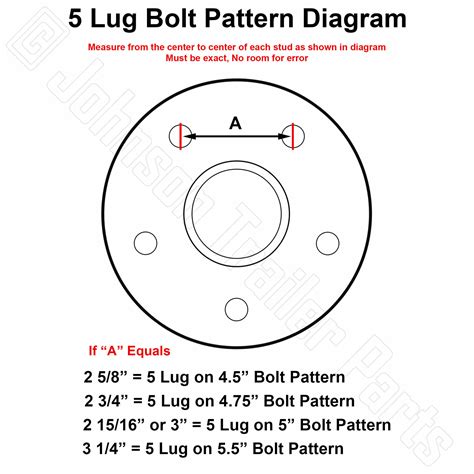

Measure the diameter: Use a ruler or caliper to measure the diameter of the circle formed by the lug holes. For a 5X4.75 pattern, this measurement should be 4.75 inches.

If you're unsure about the measurement, you can use a bolt pattern gauge, which is a tool designed to measure bolt patterns accurately.

🔍 Note: Always double-check your measurements to ensure accuracy. Incorrect measurements can lead to improper wheel fitting, which can be dangerous.

Common Vehicles with a 5X4.75 Bolt Pattern

The 5X4.75 bolt pattern is found in a variety of vehicles, particularly trucks and SUVs. Some common makes and models that use this bolt pattern include:

Make	Model	Years
Ford	F-150	1997-2003
Chevrolet	Silverado	1999-2006
GMC	Sierra	1999-2006
Dodge	Ram 1500	1994-2001
Toyota	Tacoma	1995-2004

This list is not exhaustive, and there may be other vehicles that use the 5X4.75 bolt pattern. Always verify the bolt pattern of your specific vehicle model and year to ensure compatibility.

Importance of Matching Bolt Patterns

Matching the bolt pattern is crucial for several reasons:

Safety: A mismatched bolt pattern can lead to improper wheel attachment, which can cause the wheel to come off while driving, resulting in accidents.
Performance: Properly matched wheels ensure optimal performance, including handling, braking, and acceleration.
Compatibility: Ensuring the bolt pattern matches guarantees that the wheel will fit securely on the vehicle's hub, preventing vibrations and other issues.

Always ensure that the bolt pattern of the wheels you purchase matches the bolt pattern of your vehicle. This is especially important when buying aftermarket wheels or replacing damaged wheels.

Measuring Bolt Patterns Accurately

Accurately measuring the bolt pattern is essential for ensuring compatibility. Here are some tips for measuring bolt patterns:

Use a Caliper: A digital caliper is the most accurate tool for measuring bolt patterns. Place the caliper across the diameter of the circle formed by the lug holes and record the measurement.
Bolt Pattern Gauge: A bolt pattern gauge is a specialized tool designed to measure bolt patterns quickly and accurately. These gauges are available at most automotive stores.
Consult the Manual: Your vehicle's owner's manual should provide the bolt pattern specifications. This is a reliable source of information and can save you time.

If you're unsure about measuring the bolt pattern yourself, consider consulting a professional mechanic or wheel specialist. They have the tools and expertise to ensure accurate measurements.

🛠️ Note: Always double-check your measurements and consult multiple sources if necessary. Accuracy is crucial for safety and performance.

Choosing the Right Wheels for Your Vehicle

When choosing wheels for your vehicle, there are several factors to consider beyond the bolt pattern. Here are some key points to keep in mind:

Wheel Size: Ensure the wheel size matches your vehicle's specifications. This includes the diameter and width of the wheel.
Offset: The offset is the distance between the wheel's mounting surface and the centerline of the wheel. It affects the wheel's position relative to the vehicle's suspension and can impact handling and performance.
Load Rating: The load rating indicates the maximum weight the wheel can safely support. Ensure the wheels you choose have a load rating that matches or exceeds your vehicle's requirements.
Finish and Style: Consider the finish and style of the wheels to match your vehicle's aesthetics. There are various options available, including chrome, black, and custom finishes.

By considering these factors, you can choose wheels that not only fit your vehicle correctly but also enhance its appearance and performance.

Installing Wheels with a 5X4.75 Bolt Pattern

Installing wheels with a 5X4.75 bolt pattern involves several steps. Here's a guide to help you through the process:

Prepare the Vehicle: Park the vehicle on a flat surface and engage the parking brake. Use wheel chocks to prevent the vehicle from rolling.
Loosen the Lug Nuts: Before lifting the vehicle, use a lug wrench to loosen the lug nuts on the wheel you will be replacing. Do not remove them completely at this stage.
Lift the Vehicle: Use a jack to lift the vehicle and place jack stands under the vehicle for safety. Ensure the vehicle is securely supported before proceeding.
Remove the Old Wheel: Remove the lug nuts completely and pull the wheel off the hub. If the wheel is stuck, use a rubber mallet to gently tap it loose.
Install the New Wheel: Align the lug holes on the new wheel with the lug studs on the hub and push the wheel onto the hub. Replace and tighten the lug nuts by hand as much as possible.
Lower the Vehicle: Lower the vehicle to the ground and use the lug wrench to tighten the lug nuts in a star pattern. This ensures even tightening and prevents warping.
Final Tightening: Once the vehicle is on the ground, use the lug wrench to tighten the lug nuts to the manufacturer's recommended torque specification. This information can usually be found in the vehicle's owner's manual.

After installing the new wheels, it's a good idea to take the vehicle for a test drive to ensure everything is secure and functioning properly.

🔧 Note: Always follow the manufacturer's guidelines for torque specifications and use a torque wrench for accurate tightening. Over-tightening or under-tightening can lead to issues with wheel attachment and safety.

Maintaining Wheels with a 5X4.75 Bolt Pattern

Maintaining your wheels is essential for ensuring their longevity and performance. Here are some tips for maintaining wheels with a 5X4.75 bolt pattern:

Regular Inspections: Inspect your wheels regularly for signs of damage, such as cracks, dents, or corrosion. Address any issues promptly to prevent further damage.
Cleaning: Clean your wheels regularly to remove dirt, brake dust, and other debris. Use a wheel cleaner specifically designed for your wheel's finish to avoid damage.
Balancing: Have your wheels balanced periodically to ensure even tire wear and smooth driving. Unbalanced wheels can cause vibrations and affect handling.
Alignment: Regular wheel alignment checks can help prevent uneven tire wear and ensure proper handling. Misaligned wheels can cause the vehicle to pull to one side and affect fuel efficiency.

By following these maintenance tips, you can extend the life of your wheels and ensure optimal performance.

🛠️ Note: Regular maintenance is key to keeping your wheels in good condition. Address any issues promptly to avoid more significant problems down the line.

In summary, understanding the 5X4.75 bolt pattern is essential for anyone involved in automotive maintenance or customization. This bolt pattern is commonly found in various trucks and SUVs, and knowing its specifics can help ensure that you select the correct wheels for your vehicle. By following the guidelines outlined in this post, you can accurately identify the bolt pattern, choose the right wheels, and maintain them for optimal performance and safety. Always prioritize safety and accuracy when dealing with bolt patterns and wheel fitting to ensure a smooth and secure driving experience.
