Electrical safety is paramount in any residential or commercial setting. One of the critical components in ensuring electrical safety is the use of a 50 Amp GFCI breaker. This device not only protects your electrical system from overloads and short circuits but also safeguards against ground faults, which can be particularly dangerous in wet or outdoor environments. Understanding the importance, installation, and maintenance of a 50 Amp GFCI breaker can help you create a safer electrical environment.
Understanding the 50 Amp GFCI Breaker
A 50 Amp GFCI breaker is a type of circuit breaker that combines the functions of a standard circuit breaker with ground fault circuit interrupter (GFCI) protection. This dual functionality makes it an essential component for circuits that require both overload protection and ground fault protection. The 50 Amp GFCI breaker is particularly useful in high-current applications, such as those found in workshops, garages, and outdoor spaces.
Key Features of a 50 Amp GFCI Breaker
The 50 Amp GFCI breaker offers several key features that make it a valuable addition to any electrical system:
- Overload Protection: Like a standard circuit breaker, the 50 Amp GFCI breaker protects against overloads by tripping the circuit when the current exceeds 50 amps.
- Ground Fault Protection: The GFCI component monitors the current flowing through the hot and neutral wires. If it detects a difference, indicating a ground fault, it trips the circuit to prevent electrical shock.
- High Current Capacity: With a 50-amp rating, this breaker is suitable for high-current applications, making it ideal for powering large appliances and machinery.
- Durability: Designed to withstand the rigors of industrial and commercial environments, the 50 Amp GFCI breaker is built to last.
Installation of a 50 Amp GFCI Breaker
Installing a 50 Amp GFCI breaker involves several steps. It is crucial to follow these steps carefully to ensure proper installation and safety. Here is a step-by-step guide:
Step 1: Gather Necessary Tools and Materials
Before beginning the installation, gather the following tools and materials:
- 50 Amp GFCI breaker
- Screwdriver
- Wire strippers
- Wire nuts
- Electrical tape
- Non-contact voltage tester
Step 2: Turn Off the Power
Ensure that the power to the circuit is turned off at the main electrical panel. Use a non-contact voltage tester to verify that the circuit is dead.
Step 3: Remove the Old Breaker
Open the electrical panel and locate the breaker you want to replace. Remove the old breaker by unscrewing it from the panel and pulling it out.
Step 4: Prepare the Wires
Strip the insulation from the hot and neutral wires if necessary. Ensure that the wires are clean and free of any damage.
Step 5: Install the 50 Amp GFCI Breaker
Insert the 50 Amp GFCI breaker into the panel, aligning it with the bus bars. Secure it in place by tightening the screws. Connect the hot and neutral wires to the appropriate terminals on the breaker. Use wire nuts to secure the connections and wrap them with electrical tape for added insulation.
Step 6: Test the Breaker
Turn the power back on and test the 50 Amp GFCI breaker by plugging in a device and ensuring it trips when a ground fault is simulated. This can be done by pressing the test button on the breaker.
🔧 Note: Always follow local electrical codes and regulations when installing a 50 Amp GFCI breaker. If you are unsure about any aspect of the installation, consult a licensed electrician.
Maintenance of a 50 Amp GFCI Breaker
Maintaining a 50 Amp GFCI breaker is essential to ensure its continued functionality and safety. Regular maintenance can help prevent electrical hazards and prolong the life of the breaker. Here are some maintenance tips:
- Regular Testing: Test the 50 Amp GFCI breaker monthly by pressing the test button. This ensures that the GFCI component is functioning correctly.
- Visual Inspection: Inspect the breaker for any signs of damage, such as cracks, burns, or corrosion. Replace the breaker if any damage is detected.
- Cleaning: Keep the breaker and the surrounding area clean and free of debris. Dust and dirt can interfere with the breaker's operation.
- Professional Inspection: Have the breaker inspected by a licensed electrician annually to ensure it is in good working condition.
Common Applications of a 50 Amp GFCI Breaker
The 50 Amp GFCI breaker is versatile and can be used in various applications. Some of the most common uses include:
- Workshops and Garages: These areas often require high-current circuits to power tools and machinery. The 50 Amp GFCI breaker provides the necessary protection against overloads and ground faults.

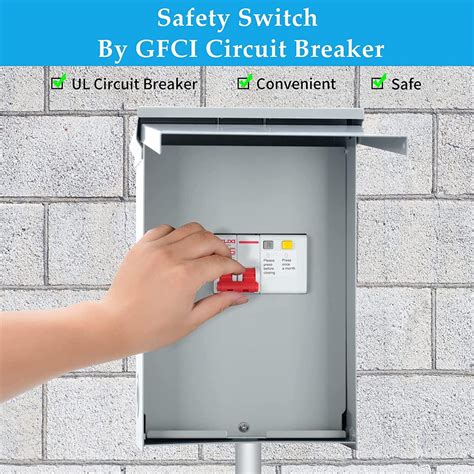

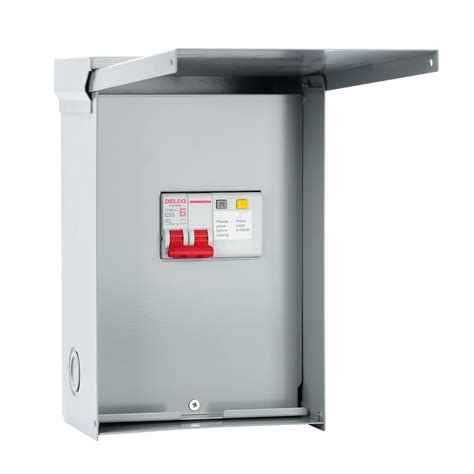

- Outdoor Spaces: Outdoor circuits, such as those powering pools, spas, and landscaping equipment, benefit from the ground fault protection offered by the 50 Amp GFCI breaker.
- Commercial Kitchens: In commercial settings, the 50 Amp GFCI breaker can protect high-current appliances like ovens, grills, and refrigerators.
- Industrial Machinery: Industrial environments often have high-current requirements. The 50 Amp GFCI breaker ensures that machinery operates safely and efficiently.
Benefits of Using a 50 Amp GFCI Breaker
Using a 50 Amp GFCI breaker offers several benefits, including:
- Enhanced Safety: The ground fault protection feature reduces the risk of electrical shock, making it safer for users.
- Protection Against Overloads: The breaker trips when the current exceeds 50 amps, preventing damage to the electrical system and appliances.
- Durability: Designed for high-current applications, the 50 Amp GFCI breaker is built to last and withstand the rigors of industrial and commercial environments.
- Compliance with Codes: Many electrical codes require GFCI protection in certain areas, such as outdoor spaces and kitchens. Using a 50 Amp GFCI breaker ensures compliance with these codes.
Troubleshooting a 50 Amp GFCI Breaker
If your 50 Amp GFCI breaker is not functioning correctly, there are several troubleshooting steps you can take:
- Check for Tripped Breaker: Ensure that the breaker has not tripped. If it has, reset it by flipping the switch to the "off" position and then back to the "on" position.
- Test the GFCI Component: Press the test button on the breaker to see if it trips. If it does not, the GFCI component may be faulty.
- Inspect Wiring: Check the wiring connections to ensure they are secure and free of damage. Loose or damaged wires can cause the breaker to malfunction.
- Check for Overloads: Ensure that the circuit is not overloaded. If too many devices are connected to the circuit, it may trip the breaker.
- Consult a Professional: If you are unable to identify the problem, consult a licensed electrician for further assistance.
🛠️ Note: Always prioritize safety when troubleshooting electrical components. If you are unsure about any aspect of the process, seek professional help.
Comparing 50 Amp GFCI Breaker with Standard Breakers
When deciding between a 50 Amp GFCI breaker and a standard breaker, it is essential to understand the differences and benefits of each. Here is a comparison:
| Feature | 50 Amp GFCI Breaker | Standard Breaker |
|---|---|---|
| Ground Fault Protection | Yes | No |
| Overload Protection | Yes | Yes |
| Current Rating | 50 Amps | Varies (e.g., 15 Amps, 20 Amps) |
| Suitable for High-Current Applications | Yes | No |
| Cost | Higher | Lower |
While a standard breaker may be sufficient for low-current applications, the 50 Amp GFCI breaker is ideal for high-current circuits that require both overload and ground fault protection.
Conclusion
The 50 Amp GFCI breaker is a crucial component in ensuring electrical safety, particularly in high-current applications. Its dual functionality of overload and ground fault protection makes it an essential addition to workshops, garages, outdoor spaces, and commercial kitchens. By understanding the installation, maintenance, and troubleshooting of a 50 Amp GFCI breaker, you can create a safer electrical environment and protect your appliances and machinery from potential hazards. Regular testing and professional inspections are key to maintaining the breaker’s functionality and ensuring long-term safety.
