Understanding the intricacies of a 4WD transfer case is crucial for any off-road enthusiast or vehicle owner looking to maximize their vehicle's capabilities. The 4WD transfer case is a critical component in four-wheel-drive systems, responsible for distributing power from the transmission to both the front and rear axles. This ensures that all four wheels receive power, enhancing traction and control in challenging terrains.
What is a 4WD Transfer Case?

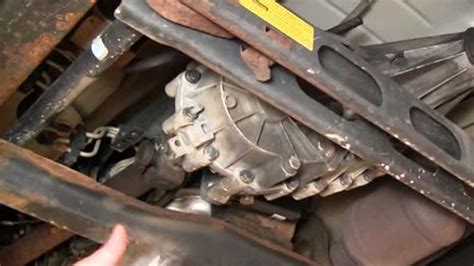

A 4WD transfer case is a mechanical device that transfers power from the transmission to the front and rear axles. It allows the vehicle to switch between two-wheel drive (2WD) and four-wheel drive (4WD) modes, providing versatility in different driving conditions. The transfer case is typically located between the transmission and the rear differential, and it can be operated manually or automatically, depending on the vehicle's design.
Types of 4WD Transfer Cases
There are several types of 4WD transfer cases, each designed to meet specific driving needs. The most common types include:
- Part-Time 4WD Transfer Case: This type of transfer case is designed for occasional off-road use. It requires the driver to engage 4WD manually and is typically used in vehicles that spend most of their time on paved roads.
- Full-Time 4WD Transfer Case: This transfer case is designed for continuous use in all driving conditions. It allows the vehicle to operate in 4WD mode at all times, providing better traction and stability on both on-road and off-road surfaces.
- Automatic 4WD Transfer Case: This type of transfer case automatically engages 4WD when it detects a loss of traction. It is ideal for drivers who want the convenience of automatic engagement without manual intervention.
- On-Demand 4WD Transfer Case: This transfer case engages 4WD only when needed, based on driving conditions. It is similar to the automatic 4WD transfer case but offers more control over when 4WD is engaged.

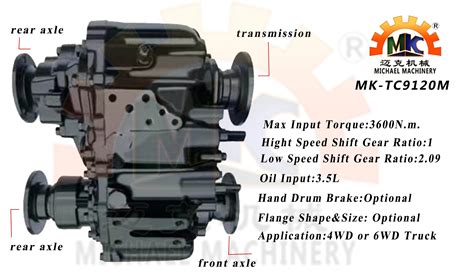

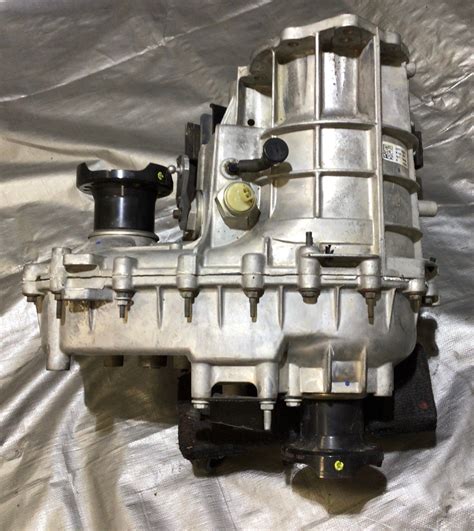

Components of a 4WD Transfer Case
The 4WD transfer case consists of several key components that work together to distribute power efficiently. These components include:
- Input Shaft: This shaft receives power from the transmission and transfers it to the transfer case.
- Output Shafts: These shafts transfer power from the transfer case to the front and rear axles.

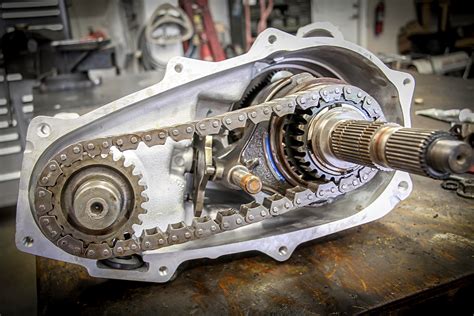

- Chain or Gear Drive: This mechanism transfers power from the input shaft to the output shafts. Some transfer cases use a chain drive, while others use a gear drive.
- Shift Forks and Sleeves: These components engage and disengage the different drive modes (2WD, 4WD High, 4WD Low).
- Transfer Case Fluid: This lubricant ensures smooth operation and reduces wear and tear on the internal components.
How a 4WD Transfer Case Works
The operation of a 4WD transfer case involves several steps, depending on the mode selected by the driver. Here’s a breakdown of how it works in different modes:
- 2WD Mode: In this mode, power is sent only to the rear wheels. The transfer case disengages the front drive shaft, allowing the vehicle to operate in two-wheel drive.
- 4WD High Mode: This mode engages both the front and rear drive shafts, distributing power to all four wheels. It is suitable for high-speed driving on rough terrain.
- 4WD Low Mode: This mode provides additional torque to the wheels, making it ideal for low-speed, high-torque situations like climbing steep hills or navigating through deep mud.
When the driver selects a mode, the shift forks and sleeves engage the appropriate gears or chains, directing power to the front and rear axles as needed. The transfer case fluid ensures that all moving parts are properly lubricated, reducing friction and wear.
Maintenance and Care of a 4WD Transfer Case
Regular maintenance is essential to keep your 4WD transfer case in optimal condition. Here are some key maintenance tips:
- Check Transfer Case Fluid: Regularly inspect the transfer case fluid level and condition. Low or contaminated fluid can lead to excessive wear and damage.
- Replace Fluid and Filter: Follow the manufacturer’s recommendations for fluid and filter replacement. This typically involves draining the old fluid, replacing the filter, and refilling with fresh fluid.
- Inspect for Leaks: Check for any signs of leaks around the transfer case. Leaks can indicate worn seals or gaskets that need replacement.
- Listen for Unusual Noises: Pay attention to any unusual noises coming from the transfer case, such as grinding, clunking, or whining. These can be signs of internal damage or wear.
By following these maintenance tips, you can extend the lifespan of your 4WD transfer case and ensure reliable performance in all driving conditions.
🛠️ Note: Always consult your vehicle’s owner manual for specific maintenance intervals and procedures.
Common Issues with 4WD Transfer Cases
Despite regular maintenance, 4WD transfer cases can still encounter issues. Some common problems include:
- Fluid Leaks: Leaks can occur due to worn seals or gaskets, leading to low fluid levels and potential damage.
- Gear Wear: Over time, the gears and chains inside the transfer case can wear out, causing noise and reduced performance.
- Electrical Issues: In automatic and on-demand transfer cases, electrical problems can prevent the system from engaging or disengaging properly.
- Shift Problems: Difficulty shifting between 2WD and 4WD modes can indicate issues with the shift forks, sleeves, or internal components.
If you encounter any of these issues, it’s important to address them promptly to prevent further damage. Consulting a professional mechanic can help diagnose and fix the problem efficiently.
Upgrading Your 4WD Transfer Case
For off-road enthusiasts looking to enhance their vehicle’s capabilities, upgrading the 4WD transfer case can be a worthwhile investment. Some popular upgrades include:
- High-Performance Transfer Case: These transfer cases are designed to handle more torque and power, making them ideal for high-performance vehicles.
- Locking Differentials: Adding locking differentials to the transfer case can improve traction by locking the front and rear axles together, ensuring equal power distribution.

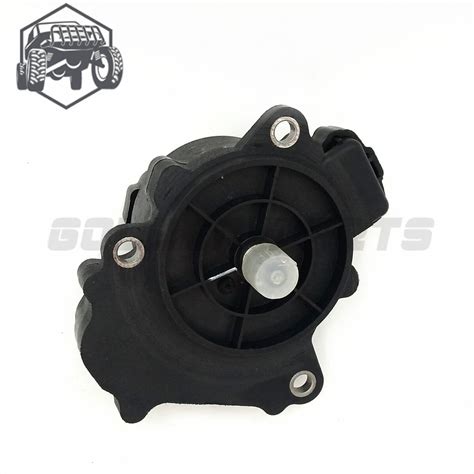

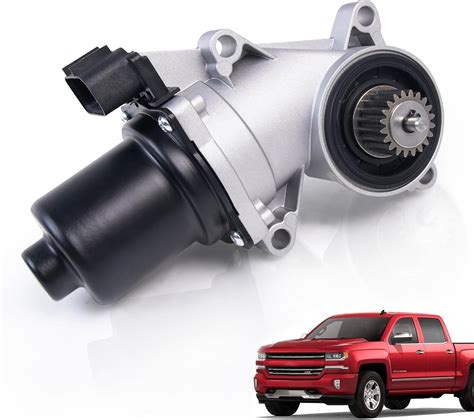

- Electronic Shift Kits: These kits allow for easier and more precise shifting between drive modes, enhancing convenience and performance.
When considering an upgrade, it’s important to choose components that are compatible with your vehicle and meet your specific needs. Consulting with a professional can help you make the right choices for your off-road adventures.
🛠️ Note: Always ensure that any upgrades are properly installed and tested to avoid potential issues.
Troubleshooting 4WD Transfer Case Problems
If you encounter issues with your 4WD transfer case, troubleshooting can help identify the problem. Here are some common troubleshooting steps:
- Check Fluid Levels: Low fluid levels can cause overheating and damage. Ensure the fluid is at the correct level and in good condition.
- Inspect for Leaks: Look for any signs of leaks around the transfer case. Addressing leaks promptly can prevent further damage.
- Listen for Noises: Unusual noises can indicate internal wear or damage. Pay attention to any grinding, clunking, or whining sounds.
- Test Drive Modes: Ensure that the transfer case can shift between 2WD, 4WD High, and 4WD Low modes smoothly. Difficulty shifting can indicate mechanical or electrical issues.
If troubleshooting does not resolve the issue, it may be necessary to consult a professional mechanic for a more thorough diagnosis and repair.
🛠️ Note: Always prioritize safety when troubleshooting and repairing your 4WD transfer case.
Conclusion
The 4WD transfer case is a vital component in any four-wheel-drive vehicle, enabling enhanced traction and control in various driving conditions. Understanding its types, components, and maintenance requirements can help you maximize your vehicle’s performance and reliability. Regular maintenance, prompt troubleshooting, and strategic upgrades can ensure that your 4WD transfer case continues to serve you well, whether you’re navigating rough terrain or cruising on paved roads.
