Electrical wiring can be complex, especially when it comes to controlling lights from multiple locations. One of the most versatile and commonly used devices for this purpose is the 4 way switch. This switch allows you to control a single light fixture from three or more locations, making it ideal for staircases, hallways, and large rooms. Understanding how to wire a 4 way switch and its components is crucial for any DIY electrician or professional electrician.
Understanding the 4 Way Switch
A 4 way switch is a type of electrical switch that allows you to control a light from three or more locations. It works in conjunction with two 3-way switches. The 4 way switch is placed between the two 3-way switches in the circuit. This setup enables you to turn the light on or off from any of the three locations.
Components of a 4 Way Switch Circuit
To understand how a 4 way switch works, it's essential to know the components involved in the circuit:
- 3-Way Switches: These switches have three terminals and are used at the beginning and end of the circuit.
- 4-Way Switch: This switch has four terminals and is used in the middle of the circuit.
- Traveler Wires: These are the wires that connect the switches together, allowing the circuit to be completed.
- Hot Wire: This is the live wire that carries the electrical current from the power source.
- Neutral Wire: This wire completes the circuit by providing a return path for the electrical current.
- Ground Wire: This wire provides a safe path for electrical current in case of a short circuit.
Wiring a 4 Way Switch Circuit
Wiring a 4 way switch circuit involves several steps. Here's a detailed guide to help you through the process:
Step 1: Gather Your Tools and Materials
Before you begin, make sure you have the following tools and materials:
- Two 3-way switches
- One 4-way switch
- Electrical wire (14/2 or 12/2, depending on your circuit)
- Wire strippers
- Wire nuts
- Screwdriver
- Voltage tester
- Electrical tape
Step 2: Turn Off the Power
Before you start working on the electrical circuit, turn off the power at the circuit breaker. Use a voltage tester to ensure that the power is off.
Step 3: Identify the Wires
Identify the hot, neutral, and ground wires in your circuit. The hot wire is usually black, the neutral wire is white, and the ground wire is green or bare copper.
Step 4: Connect the 3-Way Switches
Connect the first 3-way switch to the power source. The hot wire should be connected to the common terminal of the switch. The traveler wires should be connected to the other two terminals. Repeat this process for the second 3-way switch.
Step 5: Connect the 4-Way Switch
Connect the 4 way switch between the two 3-way switches. The traveler wires from the first 3-way switch should be connected to the top two terminals of the 4 way switch. The traveler wires from the second 3-way switch should be connected to the bottom two terminals of the 4 way switch.
Step 6: Connect the Light Fixture
Connect the light fixture to the circuit. The hot wire from the second 3-way switch should be connected to the hot terminal of the light fixture. The neutral wire should be connected to the neutral terminal of the light fixture. The ground wire should be connected to the ground terminal of the light fixture.
Step 7: Test the Circuit
Turn the power back on and test the circuit to ensure that the light can be controlled from all three locations.
🔧 Note: Always follow safety guidelines when working with electrical circuits. If you're unsure about any step, consult a professional electrician.
Troubleshooting Common Issues
Even with careful wiring, issues can arise. Here are some common problems and their solutions:
- Light Doesn't Turn On: Check all wire connections to ensure they are secure. Use a voltage tester to verify that power is reaching the switches and light fixture.
- Switches Don't Work Properly: Ensure that the traveler wires are correctly connected to the switches. Double-check the wiring diagram to confirm that all wires are in the correct terminals.
- Short Circuit: If you experience a short circuit, turn off the power immediately and check for any exposed wires or loose connections. Use electrical tape to insulate any exposed wires.
Safety Precautions
Working with electrical circuits can be dangerous if not done correctly. Here are some safety precautions to keep in mind:
- Always turn off the power at the circuit breaker before working on the circuit.
- Use a voltage tester to ensure that the power is off.
- Wear insulated gloves and safety glasses to protect yourself from electrical shocks and debris.
- Follow the wiring diagram carefully to avoid mistakes.
- If you're unsure about any step, consult a professional electrician.

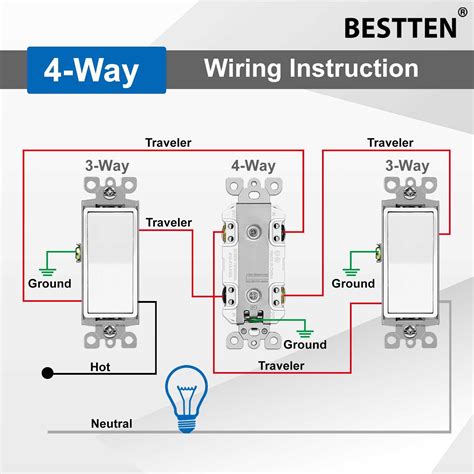

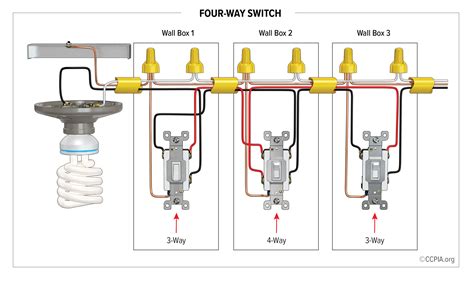

Wiring Diagram for a 4 Way Switch Circuit
Here is a simplified wiring diagram for a 4 way switch circuit:
| Component | Wire Color | Terminal |
|---|---|---|
| First 3-Way Switch | Black (Hot) | Common |
| First 3-Way Switch | Red (Traveler) | Traveler 1 |
| First 3-Way Switch | Black (Traveler) | Traveler 2 |
| 4-Way Switch | Red (Traveler) | Top Terminal 1 |
| 4-Way Switch | Black (Traveler) | Top Terminal 2 |
| 4-Way Switch | Red (Traveler) | Bottom Terminal 1 |
| 4-Way Switch | Black (Traveler) | Bottom Terminal 2 |
| Second 3-Way Switch | Red (Traveler) | Traveler 1 |
| Second 3-Way Switch | Black (Traveler) | Traveler 2 |
| Second 3-Way Switch | Black (Hot) | Common |
| Light Fixture | Black (Hot) | Hot Terminal |
| Light Fixture | White (Neutral) | Neutral Terminal |
| Light Fixture | Green/Bare (Ground) | Ground Terminal |
🔧 Note: This diagram is a general guide. Always refer to the specific wiring diagram provided with your switches and light fixture.
Advanced Tips for Wiring a 4 Way Switch
For those looking to take their wiring skills to the next level, here are some advanced tips:
- Use Wire Nuts Properly: Ensure that all wire connections are secure by twisting the wires together tightly and using wire nuts to cover the connections. This prevents loose wires and potential short circuits.
- Label Your Wires: Labeling your wires can save you time and frustration, especially if you need to troubleshoot the circuit later. Use electrical tape or wire labels to mark each wire clearly.
- Test Each Connection: After connecting each wire, use a voltage tester to ensure that the connection is secure and that power is flowing correctly.
- Organize Your Wires: Keep your wires organized and neatly bundled to avoid tangles and make future maintenance easier.
Wiring a 4 way switch circuit can be a challenging but rewarding task. With the right tools, materials, and knowledge, you can successfully control a light from multiple locations. Always prioritize safety and follow the wiring diagram carefully to ensure a successful installation.
By understanding the components and steps involved in wiring a 4 way switch circuit, you can enhance the functionality of your electrical system and create a more convenient living space. Whether you’re a DIY enthusiast or a professional electrician, mastering the 4 way switch is a valuable skill that will serve you well in various electrical projects.
