When it comes to high-performance electrical systems, the choice of wiring and cables can make a significant difference. One of the critical components in such systems is the 4 Gauge Battery Cable. These cables are designed to handle high currents and are essential for applications that require reliable power transmission. Whether you're working on a car audio system, a marine electrical setup, or any other high-current application, understanding the specifications and proper usage of 4 Gauge Battery Cable is crucial.
Understanding 4 Gauge Battery Cable
A 4 Gauge Battery Cable is a type of electrical cable with a specific wire gauge size. The gauge refers to the diameter of the wire, and in this case, a 4-gauge wire has a diameter of approximately 0.2043 inches. This size is chosen for its ability to handle high currents without overheating or degrading over time. The 4 Gauge Battery Cable is typically used in applications where the current flow exceeds 75 amps, making it ideal for heavy-duty electrical systems.
Key Features of 4 Gauge Battery Cable
The 4 Gauge Battery Cable comes with several key features that make it suitable for high-performance applications:
- High Current Capacity: Capable of handling up to 100 amps or more, depending on the length and insulation type.
- Durable Construction: Made from high-quality materials like copper or aluminum, ensuring longevity and reliability.
- Flexible Design: Often comes with a flexible jacket that makes it easy to install in tight spaces.
- Insulation Options: Available in various insulation types, including PVC, silicone, and more, to suit different environmental conditions.
Applications of 4 Gauge Battery Cable
The versatility of the 4 Gauge Battery Cable makes it suitable for a wide range of applications. Some of the most common uses include:
- Automotive Systems: Used in car audio systems, winches, and other high-current applications.
- Marine Electrical Systems: Ideal for boats and other marine vehicles where reliability is crucial.
- Renewable Energy Systems: Used in solar and wind power setups to transmit high currents efficiently.
- Industrial Equipment: Suitable for machinery and equipment that require a stable power supply.
Choosing the Right 4 Gauge Battery Cable
Selecting the right 4 Gauge Battery Cable involves considering several factors to ensure it meets your specific needs. Here are some key points to consider:
- Material: Copper is the most common material due to its excellent conductivity, but aluminum is also used for cost-effectiveness.
- Insulation Type: Choose an insulation type that suits your environment. PVC is common for general use, while silicone is better for high-temperature applications.
- Length: The length of the cable can affect its current-carrying capacity. Shorter cables are generally better for high-current applications.
- Flexibility: Consider the flexibility of the cable, especially if you need to route it through tight spaces.
Installation Tips for 4 Gauge Battery Cable
Proper installation of a 4 Gauge Battery Cable is essential for ensuring its performance and safety. Here are some tips to help you with the installation process:
- Plan the Route: Before installing, plan the route of the cable to avoid sharp bends and ensure it is protected from physical damage.

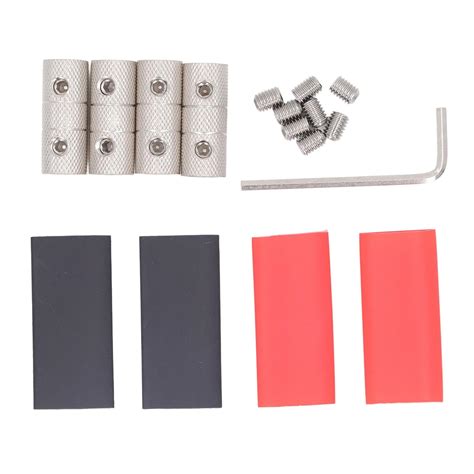

- Use Appropriate Connectors: Ensure you use connectors that are rated for the current and voltage of your system. Crimping connectors should be done with a proper crimping tool.
- Secure the Cable: Use cable ties or clamps to secure the cable along its route, preventing it from moving or getting damaged.
- Inspect for Damage: After installation, inspect the cable for any signs of damage or loose connections.
🔧 Note: Always ensure that the power is turned off before handling any electrical components to avoid the risk of electric shock.
Maintenance of 4 Gauge Battery Cable
Regular maintenance of your 4 Gauge Battery Cable is essential to ensure its longevity and performance. Here are some maintenance tips:
- Inspect Regularly: Periodically inspect the cable for any signs of wear, damage, or corrosion.
- Clean Connections: Keep the connectors clean and free of corrosion. Use a wire brush or electrical contact cleaner if necessary.
- Check for Loose Connections: Ensure all connections are tight and secure. Loose connections can lead to overheating and potential fires.
- Replace Damaged Sections: If you find any damaged sections of the cable, replace them immediately to prevent further issues.
🛠️ Note: Always use appropriate safety gear, such as gloves and safety glasses, when handling electrical components.
Common Issues with 4 Gauge Battery Cable
Despite their durability, 4 Gauge Battery Cables can encounter issues over time. Here are some common problems and their solutions:
- Overheating: This can be caused by excessive current flow or poor connections. Ensure the cable is properly sized for your application and check for loose connections.
- Corrosion: Corrosion can occur at the connectors, leading to poor conductivity. Regularly clean and inspect the connectors to prevent this issue.
- Physical Damage: Cables can be damaged by sharp objects or excessive bending. Protect the cable with appropriate routing and use cable ties or clamps to secure it.
Safety Precautions
Working with high-current electrical systems requires strict adherence to safety precautions. Here are some important safety tips to keep in mind:
- Turn Off Power: Always turn off the power source before handling any electrical components.
- Use Insulated Tools: Use insulated tools to minimize the risk of electric shock.
- Wear Protective Gear: Wear appropriate protective gear, including gloves and safety glasses.
- Follow Manufacturer Guidelines: Always follow the manufacturer's guidelines for installation and maintenance.
⚠️ Note: Never attempt to repair or modify electrical components unless you are qualified and experienced in electrical work.
Conclusion
The 4 Gauge Battery Cable is a critical component in high-performance electrical systems, offering reliable power transmission for a variety of applications. Understanding its features, proper installation, and maintenance is essential for ensuring its longevity and performance. By following the guidelines and safety precautions outlined in this post, you can effectively use 4 Gauge Battery Cable in your projects, ensuring a stable and efficient power supply.
