When it comes to electrical wiring, choosing the right gauge is crucial for ensuring safety and efficiency. One of the most commonly used wire gauges in various applications is 4 AWG wire. This type of wire is known for its robustness and ability to handle high currents, making it ideal for a wide range of electrical projects. Whether you're working on a residential, commercial, or industrial setup, understanding the specifications and uses of 4 AWG wire can significantly enhance the performance and safety of your electrical systems.
Understanding Wire Gauge
Wire gauge refers to the thickness of the wire, which is measured using the American Wire Gauge (AWG) system. The lower the gauge number, the thicker the wire. 4 AWG wire is relatively thick, making it suitable for applications that require high current flow. The thickness of the wire directly affects its current-carrying capacity and resistance, which are critical factors in electrical design.
Specifications of 4 AWG Wire
4 AWG wire has specific characteristics that make it suitable for various applications. Here are some key specifications:
- Diameter: Approximately 0.2043 inches (5.19 mm)
- Cross-Sectional Area: About 0.2113 square inches (13.63 mm²)
- Current-Carrying Capacity: Typically rated for up to 70-85 amperes, depending on the insulation type and environmental conditions.
- Resistance: Approximately 0.00064 ohms per foot at 20°C.
Applications of 4 AWG Wire
4 AWG wire is versatile and can be used in a variety of electrical applications. Some of the most common uses include:

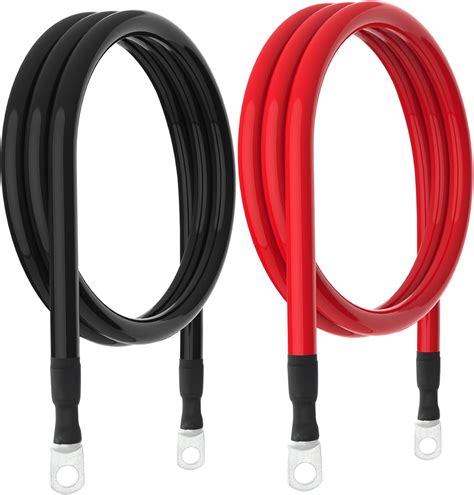

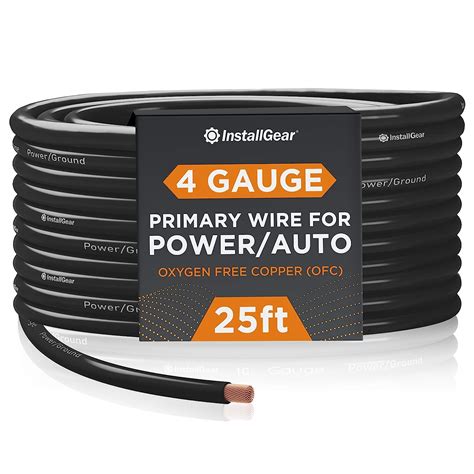

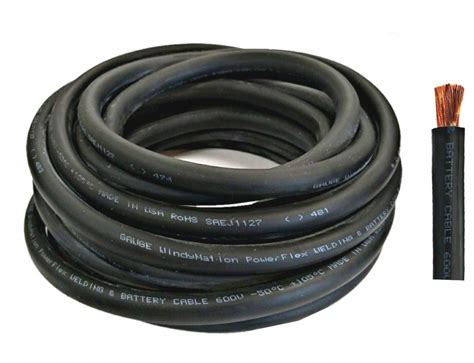

- Automotive Wiring: Often used in high-current applications such as starter motors, alternators, and battery cables.
- Marine Wiring: Suitable for boat electrical systems due to its resistance to corrosion and ability to handle high currents.
- Solar Panels: Used in solar panel installations to connect panels to inverters and batteries.
- Industrial Machinery: Commonly used in industrial settings for powering heavy machinery and equipment.
- Home Electrical Systems: Can be used for main power feeds, subpanels, and large appliances like electric ranges and dryers.
Types of 4 AWG Wire
4 AWG wire comes in various types, each designed for specific applications and environments. The most common types include:

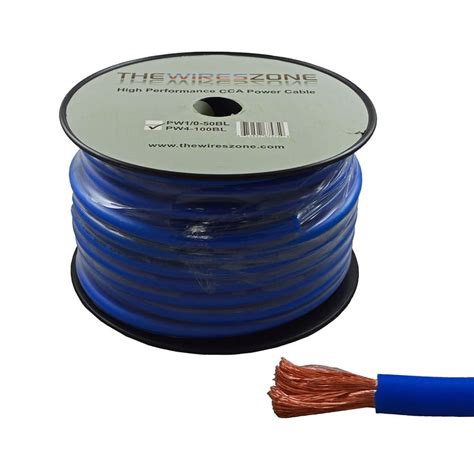

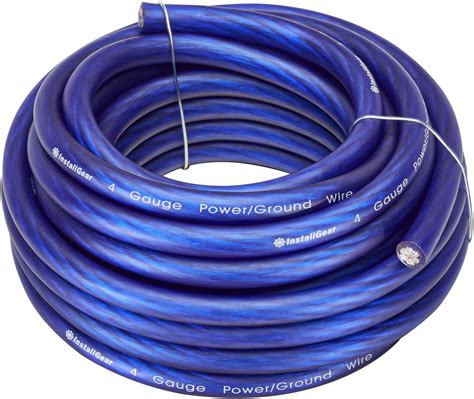

- Copper Clad Aluminum (CCA): A cost-effective alternative to pure copper wire, often used in automotive and marine applications.

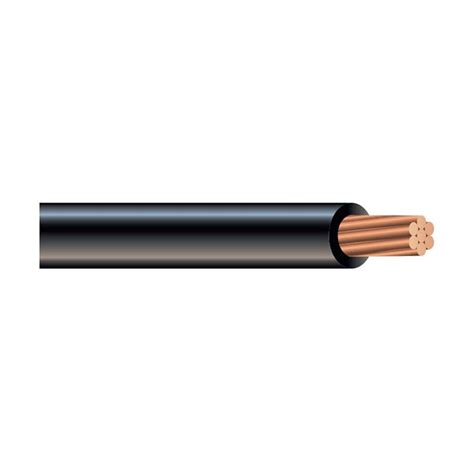

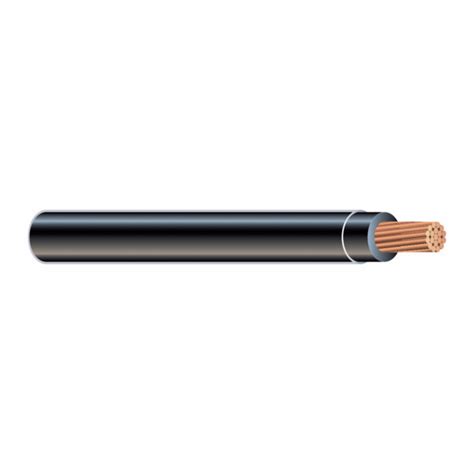

- Pure Copper: Offers excellent conductivity and is commonly used in high-performance applications.

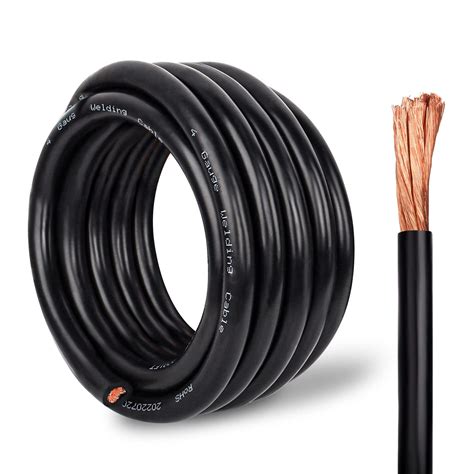

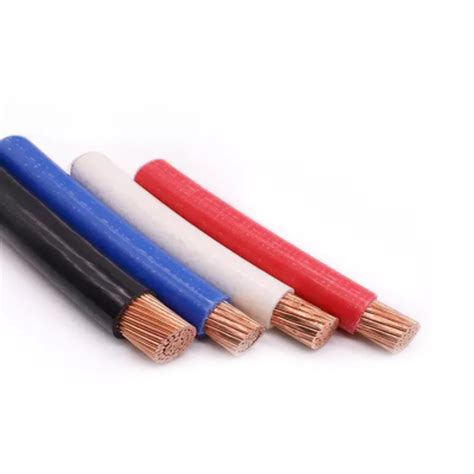

- Stranded vs. Solid: Stranded wire is more flexible and suitable for applications requiring frequent bending, while solid wire is stiffer and better for fixed installations.
Installation Tips for 4 AWG Wire
Proper installation of 4 AWG wire is essential for ensuring safety and performance. Here are some tips to keep in mind:

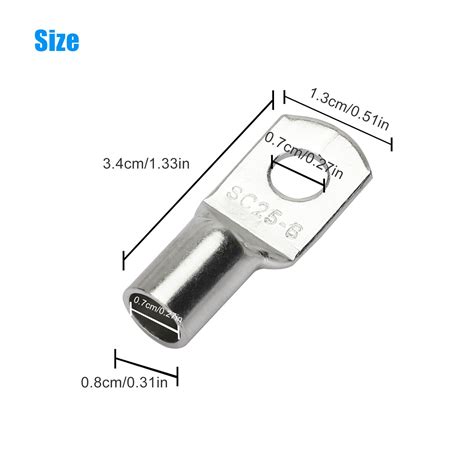

- Use Appropriate Connectors: Ensure that all connectors and terminals are rated for the current and voltage of your application.
- Proper Insulation: Choose wire with insulation suitable for the environment, such as heat-resistant or waterproof insulation.
- Secure Connections: Use crimping tools and heat shrink tubing to secure connections and prevent short circuits.
- Avoid Sharp Bends: Minimize sharp bends in the wire to prevent damage and maintain flexibility.
🔧 Note: Always follow local electrical codes and regulations when installing 4 AWG wire to ensure compliance and safety.
Safety Considerations
Working with 4 AWG wire involves handling high currents, which can be dangerous if not managed properly. Here are some safety considerations to keep in mind:
- Protective Gear: Wear appropriate protective gear, including gloves and safety glasses, when handling wire.
- Proper Grounding: Ensure that all electrical systems are properly grounded to prevent electrical shocks.
- Avoid Overloading: Do not exceed the current-carrying capacity of the wire to prevent overheating and potential fires.
- Regular Inspections: Conduct regular inspections of the wiring to check for any signs of wear, damage, or corrosion.
Common Mistakes to Avoid
When working with 4 AWG wire, it’s important to avoid common mistakes that can compromise safety and performance. Here are some pitfalls to watch out for:
- Incorrect Wire Size: Using a wire that is too small can lead to overheating and potential fires.
- Poor Connections: Loose or poorly secured connections can cause arcing and short circuits.
- Inadequate Insulation: Using wire with insufficient insulation can lead to electrical hazards.
- Ignoring Environmental Factors: Failing to consider environmental conditions, such as temperature and moisture, can affect the performance and lifespan of the wire.
⚠️ Note: Always double-check your work and consult with a professional if you are unsure about any aspect of the installation.
Comparing 4 AWG Wire to Other Gauges
To better understand the suitability of 4 AWG wire for your project, it’s helpful to compare it with other common wire gauges. Here is a comparison table:
| Wire Gauge | Diameter (inches) | Current-Carrying Capacity (Amperes) | Typical Applications |
|---|---|---|---|
| 2 AWG | 0.2576 | 95-110 | Main power feeds, large appliances |
| 4 AWG | 0.2043 | 70-85 | Automotive, marine, solar panels, industrial machinery |
| 6 AWG | 0.1620 | 55-65 | Subpanels, large appliances, welder cables |
| 8 AWG | 0.1285 | 40-50 | Home electrical systems, small appliances |
Conclusion
4 AWG wire is a versatile and robust option for a wide range of electrical applications. Its ability to handle high currents makes it ideal for automotive, marine, solar, industrial, and residential settings. Understanding the specifications, types, and installation tips for 4 AWG wire can help ensure the safety and efficiency of your electrical systems. Always prioritize safety and follow local regulations to avoid potential hazards and ensure compliance.
