3D Print Brim

3D printing has revolutionized the way we create and manufacture objects, offering unprecedented flexibility and customization. One of the key techniques that enhance the stability and success of 3D prints is the use of a 3D print brim. A 3D print brim is an additional layer of material printed around the base of a model to provide extra support and adhesion to the print bed. This technique is particularly useful for prints with small footprints or those that are prone to warping. In this post, we will delve into the intricacies of 3D print brims, exploring their benefits, how to implement them, and best practices for optimal results.

Table of Contents

Understanding the 3D Print Brim

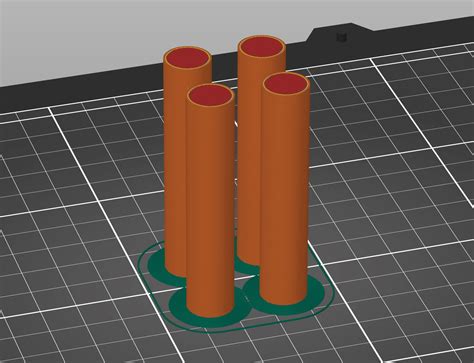

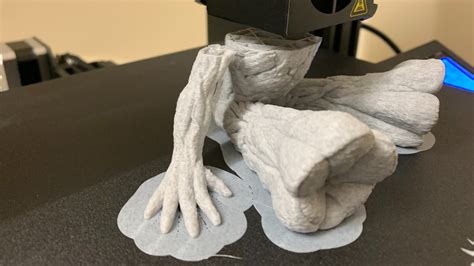

A 3D print brim is essentially a thin layer of material that extends outward from the base of a 3D model. It acts as an anchor, increasing the surface area in contact with the print bed and reducing the likelihood of the print lifting or warping during the printing process. This is especially crucial for models with small bases or those made from materials that are prone to warping, such as ABS.

There are several types of 3D print brims, each serving different purposes and offering varying levels of support:

Standard Brim: A simple, thin layer of material that extends outward from the base of the model.
Wide Brim: A thicker and wider version of the standard brim, providing more support and adhesion.
Raft: A more extensive support structure that includes a grid-like pattern beneath the model, offering maximum adhesion and stability.

Benefits of Using a 3D Print Brim

The primary benefit of using a 3D print brim is the enhanced adhesion to the print bed. This is particularly important for models with small bases or those made from materials that are prone to warping. By increasing the surface area in contact with the print bed, a 3D print brim helps to:

Prevent warping and lifting during the printing process.
Improve the overall stability of the print.
Reduce the risk of print failures.

Additionally, a 3D print brim can help to distribute heat more evenly across the print bed, further reducing the risk of warping.

When to Use a 3D Print Brim

While a 3D print brim can be beneficial in many situations, it is not always necessary. Here are some guidelines on when to use a 3D print brim:

When printing models with small bases or thin walls.
When using materials that are prone to warping, such as ABS or PETG.
When printing at high temperatures or with significant layer heights.
When the print bed surface is not perfectly level or clean.

Conversely, a 3D print brim may not be necessary for models with large bases or those made from materials that are less prone to warping, such as PLA.

How to Implement a 3D Print Brim

Implementing a 3D print brim is a straightforward process that can be done through most 3D printing software. Here are the general steps to add a 3D print brim to your model:

Open your 3D printing software and load your model.
Navigate to the slicing settings or print settings.
Look for an option labeled "Brim," "Skirt," or "Raft."
Enable the 3D print brim option and adjust the settings as needed. This may include setting the width, height, and number of layers for the brim.
Slice the model and save the G-code file.
Load the G-code file into your 3D printer and begin printing.

It is important to note that the specific steps and settings may vary depending on the 3D printing software you are using. Consult the software's documentation for detailed instructions.

💡 Note: Always ensure that your print bed is clean and level before starting a print with a 3D print brim. This will help to maximize adhesion and reduce the risk of print failures.

Best Practices for Using a 3D Print Brim

To get the most out of a 3D print brim, follow these best practices:

Start with a thin brim and adjust as needed. A thicker brim may provide more support, but it can also be more difficult to remove.
Use a brim width that is proportional to the size of the model. A brim that is too wide may cause unnecessary material waste.
Ensure that the brim is evenly distributed around the base of the model. This will help to distribute heat and reduce the risk of warping.
Consider using a raft for models with very small bases or those made from materials that are highly prone to warping.
Experiment with different brim settings to find the optimal configuration for your specific model and material.

Common Issues and Troubleshooting

While a 3D print brim can greatly improve print stability, there are some common issues that may arise. Here are some troubleshooting tips:

Brim not adhering to the print bed: Ensure that the print bed is clean and level. You may also need to adjust the brim settings or use a different adhesion promoter.
Brim too difficult to remove: Try using a thinner brim or adjusting the brim width. You can also use a brim removal tool to make the process easier.
Brim causing print failures: Check for any obstructions or irregularities in the print bed. You may also need to adjust the brim settings or use a different support structure.

If you continue to experience issues, consult the documentation for your 3D printer and slicing software for additional troubleshooting tips.

💡 Note: Always monitor your prints closely, especially when using a 3D print brim for the first time. This will help you to identify any potential issues early and make adjustments as needed.

Advanced Techniques for 3D Print Brims

For more advanced users, there are several techniques that can be employed to further enhance the effectiveness of a 3D print brim. These include:

Variable Brim Width: Adjusting the brim width at different points around the model to provide targeted support where it is needed most.
Multi-Layer Brims: Using multiple layers of brim material to provide additional support and adhesion.
Custom Brim Patterns: Creating custom brim patterns that are tailored to the specific needs of your model and material.

These advanced techniques require a deeper understanding of 3D printing software and may not be suitable for beginners. However, they can provide significant benefits for complex or challenging prints.

Comparing 3D Print Brims to Other Support Structures

While a 3D print brim is a valuable tool for enhancing print stability, it is not the only support structure available. Other common support structures include:

Rafts: A more extensive support structure that includes a grid-like pattern beneath the model, offering maximum adhesion and stability.

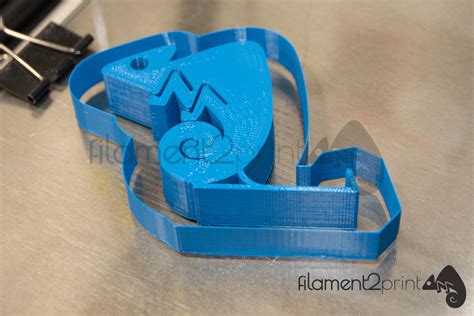

Skirts: A thin layer of material printed around the model, providing minimal support but helping to prime the extruder.
Supports: Structures printed within the model to support overhangs and complex geometries.

Each of these support structures has its own advantages and disadvantages. The choice between a 3D print brim and other support structures will depend on the specific needs of your print and the materials you are using.

Here is a comparison table to help you understand the differences:

Support Structure	Advantages	Disadvantages
3D Print Brim	Enhanced adhesion, reduced warping, easy to remove	May not provide enough support for complex geometries
Raft	Maximum adhesion and stability, suitable for complex geometries	Difficult to remove, uses more material
Skirt	Minimal support, primes the extruder	Provides little to no adhesion, not suitable for small bases
Supports	Supports overhangs and complex geometries	Difficult to remove, may leave marks on the print

In summary, the choice of support structure will depend on the specific requirements of your print. A 3D print brim is an excellent option for enhancing adhesion and reducing warping, but other support structures may be more suitable for complex or challenging prints.

💡 Note: Always consider the specific needs of your print when choosing a support structure. Experimenting with different options can help you to find the best solution for your project.

In conclusion, the 3D print brim is a powerful tool for enhancing the stability and success of 3D prints. By understanding the benefits, implementation, and best practices for using a 3D print brim, you can significantly improve your 3D printing results. Whether you are a beginner or an experienced user, incorporating a 3D print brim into your printing process can help to ensure that your prints are stable, accurate, and free from warping.
