Embarking on the journey of creating a 3D print box can be an exciting and rewarding experience. Whether you're a hobbyist, a professional, or someone looking to dive into the world of 3D printing, understanding the process of designing and printing a box can open up a world of possibilities. This guide will walk you through the essential steps, from conceptualizing your design to printing and finishing your 3D print box.
Understanding the Basics of 3D Printing
Before diving into the specifics of creating a 3D print box, it's crucial to grasp the fundamentals of 3D printing. 3D printing, also known as additive manufacturing, involves layering materials to create a three-dimensional object. This technology has revolutionized various industries, including manufacturing, healthcare, and education.
There are several types of 3D printing technologies, but the most common for hobbyists and small-scale projects are Fused Deposition Modeling (FDM) and Stereolithography (SLA). FDM printers use thermoplastic filaments, while SLA printers use liquid resins cured by UV light. For creating a 3D print box, FDM printers are generally more accessible and cost-effective.
Designing Your 3D Print Box
Designing a 3D print box involves several steps, from conceptualizing the shape and size to creating a detailed 3D model. Here’s a step-by-step guide to help you through the process:
Conceptualizing Your Design
Start by deciding on the purpose of your 3D print box. Will it be used for storage, display, or something else? Consider the dimensions, shape, and any specific features you want, such as handles, lids, or compartments.
Choosing the Right Software
There are numerous 3D modeling software options available, ranging from beginner-friendly to professional-grade. Some popular choices include:
- TinkerCAD: Ideal for beginners, this web-based tool offers a user-friendly interface and a variety of pre-made shapes.
- Fusion 360: A more advanced option from Autodesk, suitable for those with some experience in 3D modeling.
- Blender: A powerful, open-source software that is highly customizable but has a steeper learning curve.
Creating the 3D Model
Once you have your software and concept ready, it's time to create your 3D model. Here are the basic steps:
- Open your chosen 3D modeling software.
- Start with a basic shape, such as a cube or cylinder, and adjust the dimensions to match your design specifications.
- Add any additional features, such as handles, lids, or compartments. Use the software's tools to extrude, cut, and modify the shape as needed.
- Ensure that your design is watertight, meaning there are no gaps or holes that could cause issues during printing.
- Save your file in a format compatible with your 3D printer, such as STL or OBJ.
💡 Note: Always double-check your design for any potential issues before exporting. Small errors can lead to significant problems during printing.
Preparing for Printing
After designing your 3D print box, the next step is to prepare it for printing. This involves slicing the model and setting up your printer.
Slicing the Model
Slicing is the process of converting your 3D model into a format that your 3D printer can understand. This is done using slicing software, which generates the G-code instructions for the printer. Popular slicing software includes:
- Cura: A widely-used, open-source slicer with a user-friendly interface and extensive customization options.
- PrusaSlicer: Developed by Prusa Research, this slicer offers advanced features and is highly regarded for its accuracy.
- Simplify3D: A professional-grade slicer with a comprehensive set of tools and settings.
When slicing your model, consider the following settings:
| Setting | Description |
|---|---|
| Layer Height | The thickness of each printed layer. Lower values result in higher detail but longer print times. |
| Infill | The internal structure of the print. Higher infill percentages result in stronger prints but use more material. |
| Print Speed | The speed at which the printer extrudes material. Faster speeds can reduce print time but may affect quality. |
| Support Structures | Additional structures printed to support overhangs and complex geometries. These are typically removed after printing. |
💡 Note: Experiment with different settings to find the best balance between print quality, strength, and time for your specific 3D print box.
Setting Up Your Printer
Before starting the print, ensure your 3D printer is properly set up. This includes:
- Loading the filament and ensuring it is properly fed into the extruder.
- Leveling the print bed to ensure even adhesion and prevent warping.
- Calibrating the printer's settings, such as extrusion temperature and flow rate, to match the material you are using.
Printing Your 3D Print Box
With your model sliced and printer set up, you're ready to start printing your 3D print box. Follow these steps for a successful print:
Loading the G-Code
Transfer the sliced G-code file to your 3D printer's SD card or connect it directly to your computer via USB. Load the file into the printer's interface and start the print job.
Monitoring the Print
Keep an eye on the printing process to ensure everything is going smoothly. Look out for any issues such as:
- Filament jams or breaks.
- Warping or lifting of the print from the bed.
- Inconsistent extrusion or layer shifting.
If you encounter any problems, pause the print and address the issue before resuming.
💡 Note: Some printers offer remote monitoring features, allowing you to keep an eye on the print from your smartphone or computer.
Post-Processing Your 3D Print Box
Once your 3D print box is printed, there are several post-processing steps you can take to enhance its appearance and functionality.
Removing Support Structures
If your design included support structures, carefully remove them using pliers or a hobby knife. Be gentle to avoid damaging the print.
Sanding and Finishing
Use sandpaper to smooth out any rough edges or surfaces. Start with a coarse grit and gradually move to finer grits for a smoother finish. You can also use a heat gun to gently melt the surface layer, creating a glossy finish.
Painting and Decorating
If you want to add color or decorative elements to your 3D print box, consider painting it. Use acrylic paints and apply multiple thin coats, allowing each to dry completely before adding the next. You can also use markers or stickers for additional customization.
Common Challenges and Troubleshooting
Creating a 3D print box can present various challenges. Here are some common issues and how to address them:
Warping
Warping occurs when the edges of the print lift from the bed, causing distortion. To prevent this:
- Ensure the print bed is level and clean.
- Use a heated bed and adjust the temperature according to the material.
- Apply a bed adhesive, such as glue stick or hairspray, to improve adhesion.
Layer Shifting
Layer shifting happens when the print layers are misaligned, resulting in a distorted print. To fix this:
- Check the printer's belts for tightness and ensure the pulleys are properly aligned.
- Reduce the print speed to allow the printer more time to accurately position each layer.
- Ensure the printer is on a stable surface to minimize vibrations.
Stringing
Stringing, or oozing, occurs when excess filament is extruded between print segments, creating thin strings. To minimize stringing:
- Adjust the retraction settings in your slicing software to pull back the filament when not in use.
- Reduce the print speed to allow the filament more time to cool and solidify.
- Use a cooling fan to help solidify the filament more quickly.
💡 Note: Regular maintenance and calibration of your 3D printer can help prevent many common issues.
Advanced Techniques for 3D Print Boxes
Once you're comfortable with the basics, you can explore advanced techniques to enhance your 3D print box designs. Here are a few ideas:
Multi-Material Printing
Some 3D printers support multi-material printing, allowing you to use different filaments within a single print. This can add unique textures, colors, or functional properties to your 3D print box.
Incorporating Electronics
For a more interactive 3D print box, consider integrating electronics such as LEDs, sensors, or microcontrollers. This can create a box with lighting effects, sound, or even smart features.

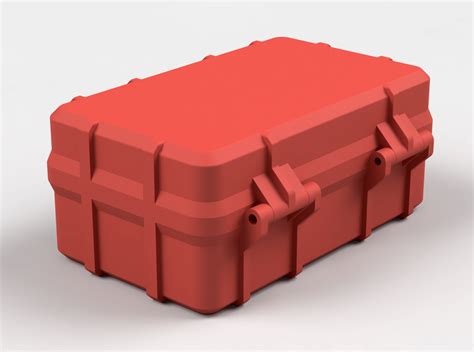

Parametric Design
Parametric design involves creating models that can be easily adjusted using parameters. This allows you to quickly modify dimensions, shapes, or features without starting from scratch. Software like Fusion 360 and Grasshopper offer powerful parametric design tools.
Creating a 3D print box is a rewarding project that combines creativity, technical skill, and problem-solving. By following the steps outlined in this guide, you can design, print, and finish a custom 3D print box tailored to your needs. Whether you’re a beginner or an experienced maker, the world of 3D printing offers endless possibilities for innovation and expression.
