Electrical projects around the home can be both rewarding and challenging. One common task that homeowners often undertake is installing a 30 Amp Sub Panel. This process involves adding a secondary electrical panel to your home's electrical system, allowing you to distribute power more efficiently and safely. Whether you're looking to add more circuits to your garage, workshop, or any other part of your property, understanding how to install a 30 Amp Sub Panel is crucial. This guide will walk you through the steps, from planning to completion, ensuring you have a safe and functional electrical setup.
Understanding the Basics of a 30 Amp Sub Panel

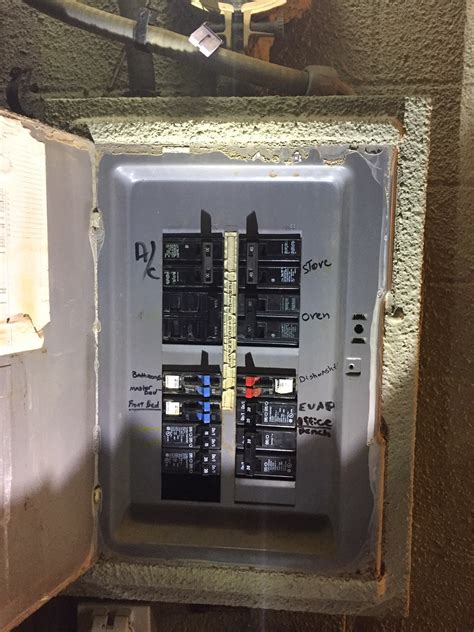

A 30 Amp Sub Panel is a smaller electrical panel that branches off from your main electrical panel. It allows you to add more circuits without overloading your main panel. This is particularly useful for areas that require additional power, such as a detached garage, a workshop, or an outdoor living space. Before you begin, it’s essential to understand the basics:
- Amperage: A 30 Amp Sub Panel can handle up to 30 amps of current, which is suitable for most residential applications.
- Voltage: Typically, these panels operate at 120⁄240 volts, providing both single-phase and split-phase power.
- Circuit Breakers: The panel will include circuit breakers to protect each circuit from overloading.
Planning Your 30 Amp Sub Panel Installation
Proper planning is key to a successful installation. Here are the steps to consider before you start:
- Determine the Location: Choose a dry, accessible location for your 30 Amp Sub Panel. It should be near the area you want to power and easily reachable for maintenance.
- Check Local Codes: Ensure you comply with local electrical codes and obtain any necessary permits. This may involve consulting with a local inspector or electrical authority.
- Gather Materials: You’ll need a 30 Amp Sub Panel, appropriate gauge wire, conduit, circuit breakers, and other necessary hardware. Make sure to choose materials that meet your specific needs and local codes.
Installing the 30 Amp Sub Panel
Once you have planned and gathered your materials, you can begin the installation process. Follow these steps carefully:
Step 1: Turn Off the Power
Before you start any electrical work, turn off the power to your main electrical panel. This is a crucial safety step to prevent electrical shock.
Step 2: Run the Feeder Wire
Run a feeder wire from your main panel to the location of your 30 Amp Sub Panel. The wire should be appropriately sized for the amperage and distance. For a 30 Amp circuit, you typically need a 10 AWG wire for distances up to 100 feet.
Step 3: Install the Sub Panel
Mount the 30 Amp Sub Panel securely to a sturdy surface, such as a wall or a post. Ensure it is level and properly supported. Connect the feeder wire to the main lugs in the sub panel.
Step 4: Connect the Ground and Neutral Wires
Connect the ground wire to the ground bus bar in the sub panel. The neutral wire should be connected to the neutral bus bar. Ensure all connections are tight and secure.

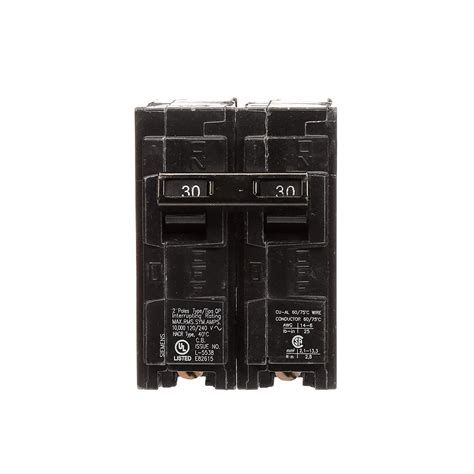

Step 5: Install Circuit Breakers
Install the appropriate circuit breakers in the 30 Amp Sub Panel. Each breaker should be rated for the specific circuits you plan to add. For example, you might need 15 Amp or 20 Amp breakers for standard outlets and lighting circuits.
Step 6: Test the Circuit
Once all connections are made, turn the power back on and test each circuit to ensure they are functioning correctly. Use a non-contact voltage tester to verify that power is flowing to each circuit.
🔧 Note: Always double-check your connections and ensure that all wires are properly secured. Loose connections can cause overheating and potential fires.
Safety Considerations for 30 Amp Sub Panel Installation
Safety is paramount when working with electricity. Here are some key safety considerations to keep in mind:
- Use Proper Protective Gear: Wear insulated gloves, safety glasses, and other protective gear to minimize the risk of injury.
- Follow Local Codes: Adhere to local electrical codes and regulations to ensure a safe and compliant installation.
- Avoid Overloading: Do not exceed the amperage rating of your 30 Amp Sub Panel or individual circuits. Overloading can cause overheating and potential fires.
Common Mistakes to Avoid
Installing a 30 Amp Sub Panel can be straightforward, but there are common mistakes to avoid:
- Incorrect Wire Sizing: Using the wrong gauge wire can lead to overheating and potential fires. Always use the appropriate wire size for your amperage and distance.
- Improper Grounding: Ensure that all ground wires are properly connected to the ground bus bar. Improper grounding can lead to electrical shocks and other hazards.
- Overloading Circuits: Be mindful of the amperage rating of each circuit breaker. Overloading can cause the breaker to trip or, in worst-case scenarios, lead to a fire.
🛑 Note: If you are unsure about any aspect of the installation, consult a licensed electrician. Electrical work can be dangerous, and it's essential to ensure safety and compliance with local codes.
Maintaining Your 30 Amp Sub Panel
Regular maintenance is crucial to ensure the longevity and safety of your 30 Amp Sub Panel. Here are some tips for maintaining your sub panel:
- Inspect Connections: Periodically check all wire connections to ensure they are tight and secure.
- Test Circuit Breakers: Regularly test each circuit breaker to ensure it is functioning correctly. Replace any breakers that show signs of wear or damage.
- Keep the Panel Clean: Ensure the panel is free from dust and debris, which can accumulate and cause overheating.
Troubleshooting Common Issues
Even with proper installation, issues can arise. Here are some common problems and their solutions:
- Tripping Breakers: If a breaker trips frequently, it may be due to an overloaded circuit. Reduce the load on the circuit or add additional circuits.
- No Power to Outlets: Check the circuit breaker to ensure it is not tripped. If the breaker is fine, inspect the wiring for any loose connections or damage.
- Overheating: If the panel or any wires feel hot to the touch, it may indicate an overloaded circuit or improper wiring. Turn off the power and inspect the wiring immediately.
⚠️ Note: If you encounter any issues that you cannot resolve, it's best to consult a licensed electrician. Electrical problems can be complex and dangerous to handle without proper training.
Expanding Your Electrical System with a 30 Amp Sub Panel
Adding a 30 Amp Sub Panel can significantly enhance your electrical system’s capacity and flexibility. Here are some ways you can expand your electrical setup:
- Garage and Workshop: Install additional circuits for power tools, lighting, and other equipment in your garage or workshop.
- Outdoor Living Spaces: Add circuits for outdoor lighting, heating, and other amenities to enhance your outdoor living experience.
- Home Additions: If you’re adding a new room or extension to your home, a 30 Amp Sub Panel can provide the additional power you need.
Cost Considerations for 30 Amp Sub Panel Installation
The cost of installing a 30 Amp Sub Panel can vary depending on several factors. Here’s a breakdown of potential costs:
| Item | Cost Range |
|---|---|
| 30 Amp Sub Panel | 50 - 200 |
| Wire and Conduit | 50 - 200 |
| Circuit Breakers | 10 - 50 each |
| Labor | 200 - 1,000 |
| Permits | 50 - 200 |
These costs are approximate and can vary based on your location, the complexity of the installation, and other factors. It's always a good idea to get multiple quotes from licensed electricians to ensure you get a fair price.
Installing a 30 Amp Sub Panel can be a rewarding project that enhances your home’s electrical capacity and safety. By following the steps outlined in this guide, you can ensure a successful installation that meets your needs and complies with local codes. Regular maintenance and troubleshooting will help keep your electrical system running smoothly for years to come.
