3 Way Light Switches

Electrical wiring can be complex, especially when it comes to installing and understanding 3 way light switches. These switches are essential for controlling a light fixture from two different locations, commonly found in staircases, hallways, and large rooms. This guide will walk you through the basics of 3 way light switches, their wiring, and troubleshooting common issues.

Table of Contents

Understanding 3 Way Light Switches

3 way light switches are designed to control a single light fixture from two different locations. Unlike standard single-pole switches, 3 way light switches have three terminals: a common terminal, a traveler terminal, and another traveler terminal. The common terminal is connected to the power source or the light fixture, while the traveler terminals connect to the other 3 way light switch in the circuit.

Components of a 3 Way Light Switch

To understand how 3 way light switches work, it's important to know the key components:

Common Terminal: This is the terminal that connects to the power source or the light fixture.
Traveler Terminals: These terminals connect to the other 3 way light switch in the circuit.
Ground Terminal: This is the terminal that connects to the ground wire for safety.

Wiring a 3 Way Light Switch

Wiring 3 way light switches can be a bit tricky, but with the right steps, it can be done safely and efficiently. Here’s a step-by-step guide:

Materials Needed

Two 3 way light switches
14/3 or 12/3 NM cable (depending on the circuit requirements)
Wire strippers
Screwdrivers
Wire nuts
Electrical tape

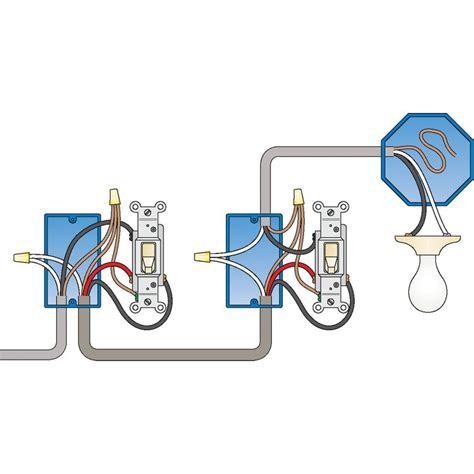

Step-by-Step Wiring Guide

1. Turn Off Power: Before starting, turn off the power to the circuit at the main electrical panel.

2. Prepare the Wires: Strip about ½ inch of insulation from the ends of all wires.

3. Connect the First Switch:

Identify the common terminal (usually marked with a different color or a black screw).
Connect the black wire from the power source to the common terminal.
Connect the two traveler wires (usually red and black) to the traveler terminals.
Connect the ground wire to the ground terminal.

4. Connect the Second Switch:

Identify the common terminal.
Connect the black wire from the light fixture to the common terminal.
Connect the two traveler wires to the traveler terminals.
Connect the ground wire to the ground terminal.

5. Connect the Light Fixture:

Connect the black wire from the second switch to the black wire of the light fixture.
Connect the white wire from the second switch to the white wire of the light fixture.
Connect the ground wire from the second switch to the ground wire of the light fixture.

6. Test the Circuit: Turn the power back on and test the switches to ensure they are working correctly.

🔧 Note: Always double-check your connections and ensure that the power is off before working on any electrical wiring.

Troubleshooting 3 Way Light Switches

Even with careful installation, issues can arise with 3 way light switches. Here are some common problems and their solutions:

Switches Not Working

If the switches are not working, check the following:

Ensure the power is on at the main electrical panel.
Check for loose connections or damaged wires.
Verify that the switches are wired correctly.

Switches Not Controlling the Light

If the switches are not controlling the light, it could be due to:

Incorrect wiring of the traveler wires.
A faulty switch.
A problem with the light fixture.

Switches Not Working Together

If the switches are not working together, check the following:

Ensure that the traveler wires are connected correctly.
Verify that the common terminals are connected to the correct wires.
Check for any short circuits or ground faults.

Safety Precautions

Working with electrical wiring can be dangerous. Here are some safety precautions to keep in mind:

Always turn off the power at the main electrical panel before working on any wiring.
Use insulated tools to avoid electrical shock.
Wear safety glasses to protect your eyes from debris.
Ensure that all connections are secure and properly insulated.

By following these safety precautions, you can minimize the risk of electrical hazards and ensure a safe installation.

Common Mistakes to Avoid

When wiring 3 way light switches, it's easy to make mistakes. Here are some common errors to avoid:

Mixing up the traveler wires.
Connecting the common terminal to the wrong wire.
Not grounding the switches properly.
Using the wrong type of wire or cable.

By being aware of these common mistakes, you can ensure a smooth and successful installation.

Advanced Wiring Configurations

While the basic wiring of 3 way light switches is straightforward, there are more advanced configurations that can be used for larger spaces or more complex lighting needs. These configurations often involve additional switches or more complex wiring diagrams.

For example, a 4 way light switch configuration allows you to control a light from three different locations. This setup involves using a 4 way switch in addition to two 3 way switches. The wiring is more complex, but the principle is the same: ensuring that the traveler wires are connected correctly and that the common terminals are properly wired.

Another advanced configuration is the use of smart switches. Smart 3 way light switches can be controlled via a mobile app or voice commands, adding convenience and modern functionality to your lighting system. These switches often require additional wiring and may need to be integrated with a smart home system.

Conclusion

3 way light switches are a versatile and essential component in modern electrical wiring. By understanding their components, wiring them correctly, and following safety precautions, you can ensure a functional and safe lighting system. Whether you’re installing them in a new construction project or upgrading an existing system, 3 way light switches offer the flexibility to control lighting from multiple locations, enhancing both convenience and safety. Always remember to double-check your connections and consult a professional if you’re unsure about any aspect of the installation.
