3 4 5 Method

Mastering the art of carpentry involves understanding various techniques and methods that ensure precision and durability in woodworking projects. One such method that has stood the test of time is the 3 4 5 Method. This technique is widely used by both novice and experienced woodworkers to create perfect right angles, which are crucial for constructing sturdy and well-aligned structures. In this blog post, we will delve into the intricacies of the 3 4 5 Method, its applications, and how it can be effectively used in your woodworking projects.

Table of Contents

Understanding the 3 4 5 Method

The 3 4 5 Method is a simple yet powerful technique for ensuring that two pieces of wood are joined at a perfect 90-degree angle. This method is based on the Pythagorean theorem, which states that in a right-angled triangle, the square of the length of the hypotenuse (the side opposite the right angle) is equal to the sum of the squares of the lengths of the other two sides. In the 3 4 5 Method, the sides of the triangle are in the ratio of 3:4:5.

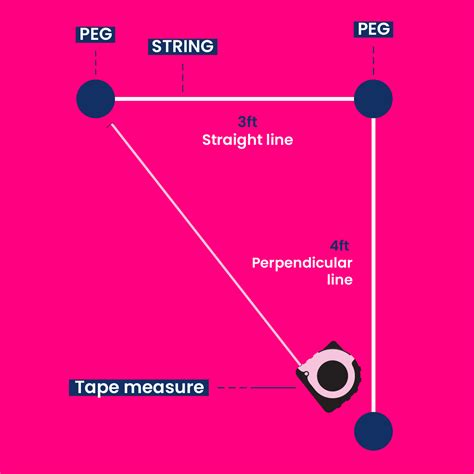

To apply the 3 4 5 Method, you need to measure three sides of a triangle with lengths that are in the ratio of 3:4:5. For example, if you measure 3 units along one side, 4 units along the adjacent side, and 5 units along the hypotenuse, you will have a perfect right angle at the intersection of the 3-unit and 4-unit sides.

Steps to Implement the 3 4 5 Method

Implementing the 3 4 5 Method is straightforward. Follow these steps to ensure accurate right angles in your woodworking projects:

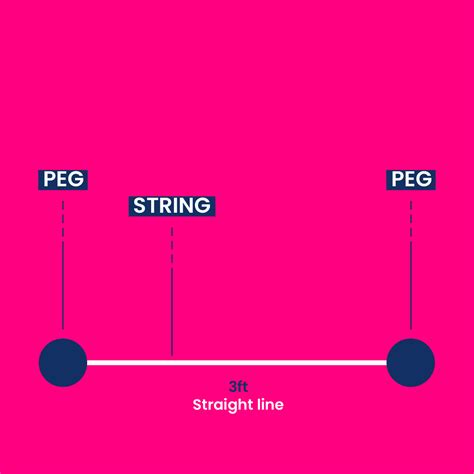

Measure the First Side: Start by measuring 3 units along one side of your wood piece. This can be done using a tape measure or a ruler.
Measure the Second Side: Next, measure 4 units along the adjacent side of the wood piece. Ensure that the measurements are precise to maintain the accuracy of the right angle.
Mark the Hypotenuse: Finally, measure 5 units along the hypotenuse, which is the side opposite the right angle. This will complete the triangle and ensure that the angle between the 3-unit and 4-unit sides is a perfect 90 degrees.
Verify the Angle: To verify the accuracy of your measurements, you can use a square or a level. The intersection of the 3-unit and 4-unit sides should form a perfect right angle.

🔍 Note: It's essential to use precise measuring tools to ensure the accuracy of the 3 4 5 Method. Any slight deviation in measurements can affect the overall alignment of your woodworking project.

Applications of the 3 4 5 Method

The 3 4 5 Method has numerous applications in woodworking and carpentry. Some of the most common uses include:

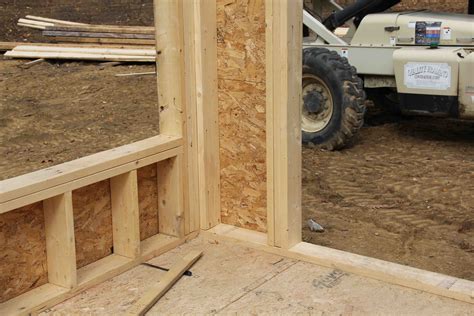

Framing Walls: When constructing walls, the 3 4 5 Method ensures that the corners are perfectly square, providing a stable and durable structure.
Building Cabinets: In cabinet making, accurate right angles are crucial for ensuring that doors and drawers fit perfectly and operate smoothly.
Constructing Decks: For deck building, the 3 4 5 Method helps in creating level and square frames, which are essential for a safe and sturdy deck.
Furniture Making: In furniture making, precise right angles are necessary for creating well-aligned and stable pieces, such as tables, chairs, and bookshelves.

Advantages of the 3 4 5 Method

The 3 4 5 Method offers several advantages over other methods of ensuring right angles. Some of the key benefits include:

Simplicity: The method is easy to understand and implement, making it accessible for both beginners and experienced woodworkers.
Accuracy: The 3 4 5 Method provides a high degree of accuracy, ensuring that the right angles are precise and reliable.
Versatility: This method can be used in a variety of woodworking projects, from small-scale furniture making to large-scale construction.
Cost-Effective: The 3 4 5 Method does not require any specialized tools, making it a cost-effective solution for ensuring right angles.

Common Mistakes to Avoid

While the 3 4 5 Method is straightforward, there are some common mistakes that woodworkers should avoid to ensure accurate results:

Imprecise Measurements: Using inaccurate measuring tools or rounding off measurements can lead to errors in the right angle.
Ignoring the Ratio: It's crucial to maintain the exact 3:4:5 ratio. Deviating from this ratio can result in an incorrect angle.
Not Verifying the Angle: Always verify the angle using a square or level to ensure that the 3 4 5 Method has been applied correctly.

🛠️ Note: Double-check your measurements and use high-quality tools to minimize errors and ensure the accuracy of the 3 4 5 Method.

Alternative Methods for Ensuring Right Angles

While the 3 4 5 Method is highly effective, there are other methods that woodworkers can use to ensure right angles. Some of these alternatives include:

Using a Speed Square: A speed square is a versatile tool that can be used to mark and verify right angles quickly and accurately.
Using a Framing Square: A framing square is a larger tool designed for marking and measuring right angles in construction projects.
Using a Laser Level: A laser level projects a straight line that can be used to ensure that surfaces are level and angles are accurate.

Each of these methods has its own advantages and can be chosen based on the specific requirements of the project and the tools available.

Practical Examples of the 3 4 5 Method

To better understand the 3 4 5 Method, let's look at a few practical examples of how it can be applied in real-world woodworking projects.

Building a Simple Wooden Frame

When building a simple wooden frame, such as a picture frame or a small cabinet, the 3 4 5 Method can be used to ensure that the corners are perfectly square. Here’s how you can do it:

Measure and Cut the Wood: Cut four pieces of wood to the desired lengths for the frame.
Apply the 3 4 5 Method: Use the 3 4 5 Method to mark the corners of the frame. Measure 3 units along one side, 4 units along the adjacent side, and 5 units along the hypotenuse.
Assemble the Frame: Join the pieces of wood at the marked corners using nails, screws, or glue. Ensure that the corners are perfectly square.
Verify the Frame: Use a square or level to verify that the frame is square and that the corners are accurate.

Constructing a Deck

When constructing a deck, the 3 4 5 Method can be used to ensure that the frame is level and square. Here’s a step-by-step guide:

Plan the Deck Layout: Determine the size and shape of the deck and mark the layout on the ground.
Build the Frame: Use the 3 4 5 Method to mark the corners of the frame. Measure 3 units along one side, 4 units along the adjacent side, and 5 units along the hypotenuse.
Assemble the Frame: Join the pieces of wood at the marked corners using nails, screws, or glue. Ensure that the frame is level and square.
Verify the Frame: Use a level and square to verify that the frame is level and that the corners are accurate.

📐 Note: Always double-check your measurements and use high-quality tools to ensure the accuracy of the 3 4 5 Method in large-scale projects like deck construction.

Tips for Mastering the 3 4 5 Method

Mastering the 3 4 5 Method requires practice and attention to detail. Here are some tips to help you become proficient in using this technique:

Practice Regularly: The more you practice the 3 4 5 Method, the more comfortable you will become with it. Start with small projects and gradually move on to larger ones.
Use High-Quality Tools: Invest in high-quality measuring tools to ensure accurate measurements and reliable results.
Verify Your Work: Always verify your work using a square or level to ensure that the right angles are accurate.
Learn from Others: Watch tutorials and read articles to learn from experienced woodworkers and gain insights into best practices.

By following these tips, you can master the 3 4 5 Method and use it effectively in your woodworking projects.

Conclusion

The 3 4 5 Method is a time-tested technique for ensuring accurate right angles in woodworking projects. Its simplicity, accuracy, and versatility make it a valuable tool for both novice and experienced woodworkers. By understanding the principles of the 3 4 5 Method and practicing its application, you can enhance the precision and durability of your woodworking projects. Whether you are building a simple frame or constructing a large deck, the 3 4 5 Method provides a reliable way to achieve perfect right angles and create sturdy, well-aligned structures.
