Understanding the role of a 25 Amp Breaker in electrical systems is crucial for ensuring safety and efficiency in both residential and commercial settings. This blog post delves into the specifics of a 25 Amp Breaker, its applications, installation guidelines, and maintenance tips. By the end, you'll have a comprehensive understanding of how to effectively use and manage a 25 Amp Breaker in your electrical setup.
What is a 25 Amp Breaker?
A 25 Amp Breaker is a type of circuit breaker designed to protect electrical circuits from overloads and short circuits. It is rated to handle up to 25 amperes of current, making it suitable for various applications, including powering heavy-duty appliances and machinery. The primary function of a 25 Amp Breaker is to interrupt the electrical flow when it detects an overload or short circuit, thereby preventing potential fires and electrical hazards.
Applications of a 25 Amp Breaker
The versatility of a 25 Amp Breaker makes it ideal for a wide range of applications. Some common uses include:
- Powering large appliances such as electric ranges, dryers, and air conditioners.
- Supplying electricity to workshops and garages with heavy-duty tools.
- Providing power to commercial equipment in offices and retail spaces.
- Supporting electrical systems in industrial settings with machinery and equipment.
Installation Guidelines for a 25 Amp Breaker
Installing a 25 Amp Breaker requires careful planning and adherence to electrical codes. Here are the steps to ensure a safe and effective installation:
- Turn Off the Power: Before beginning any electrical work, turn off the main power supply to the circuit you will be working on. This is crucial for safety.
- Identify the Circuit: Determine the circuit where the 25 Amp Breaker will be installed. Ensure that the circuit is capable of handling the increased amperage.
- Prepare the Breaker: Remove the old breaker (if applicable) and prepare the new 25 Amp Breaker for installation. Ensure that the breaker is compatible with your electrical panel.
- Install the Breaker: Insert the 25 Amp Breaker into the appropriate slot in the electrical panel. Make sure it is securely fastened and properly aligned.
- Connect the Wires: Connect the hot wire (usually black) to the breaker and the neutral wire (usually white) to the neutral bus bar. Ensure all connections are tight and secure.
- Test the Breaker: Turn the power back on and test the 25 Amp Breaker to ensure it is functioning correctly. Use a multimeter to verify the voltage and current readings.
🔧 Note: Always follow local electrical codes and regulations when installing a 25 Amp Breaker. If you are unsure about any aspect of the installation, consult a licensed electrician.
Maintenance Tips for a 25 Amp Breaker
Regular maintenance of a 25 Amp Breaker is essential to ensure its longevity and reliability. Here are some tips to keep your breaker in optimal condition:
- Inspect Regularly: Periodically inspect the breaker for any signs of wear or damage. Look for corrosion, loose connections, or physical damage.
- Test the Breaker: Use a circuit tester to periodically test the breaker. Ensure it trips correctly when an overload or short circuit is detected.
- Clean the Panel: Keep the electrical panel clean and free of debris. Dust and dirt can accumulate and affect the performance of the breaker.
- Avoid Overloading: Ensure that the circuit protected by the 25 Amp Breaker is not overloaded. Overloading can cause the breaker to trip frequently and may lead to premature failure.
Common Issues with a 25 Amp Breaker
Despite their reliability, 25 Amp Breakers can encounter issues over time. Some common problems include:
- Frequent Tripping: If the breaker trips frequently, it may indicate an overload or a short circuit in the circuit. Check for any faulty appliances or wiring issues.
- No Power: If the breaker does not provide power, it may be faulty. Test the breaker with a multimeter to ensure it is functioning correctly.
- Burnt Smell: A burnt smell from the breaker or panel indicates overheating, which can be dangerous. Immediately turn off the power and inspect the breaker for any signs of damage.
Troubleshooting a 25 Amp Breaker
When troubleshooting a 25 Amp Breaker, follow these steps to identify and resolve the issue:
- Check for Overloads: Ensure that the circuit is not overloaded. Disconnect some appliances or devices to reduce the load on the circuit.
- Inspect Wiring: Check the wiring for any signs of damage or loose connections. Repair or replace any damaged wires.
- Test the Breaker: Use a multimeter to test the breaker. Ensure it is receiving power and that the connections are secure.
- Replace the Breaker: If the breaker is faulty, replace it with a new one. Ensure the new breaker is rated for 25 amperes and is compatible with your electrical panel.
Safety Precautions When Working with a 25 Amp Breaker
Working with electrical components, including a 25 Amp Breaker, requires strict adherence to safety precautions. Here are some important safety tips:
- Turn Off the Power: Always turn off the main power supply before working on any electrical circuit.
- Use Proper Tools: Use insulated tools designed for electrical work to minimize the risk of electric shock.
- Wear Protective Gear: Wear appropriate protective gear, including gloves and safety glasses, to protect yourself from potential hazards.
- Follow Electrical Codes: Adhere to local electrical codes and regulations to ensure a safe and compliant installation.

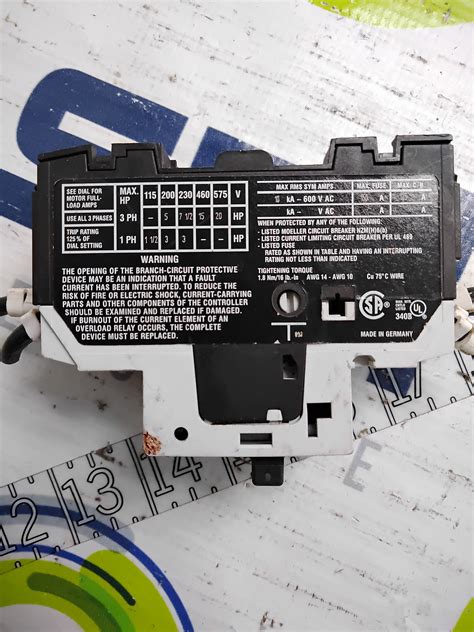

Understanding the Ratings of a 25 Amp Breaker
A 25 Amp Breaker has specific ratings that determine its suitability for different applications. Understanding these ratings is crucial for selecting the right breaker for your needs. The key ratings to consider include:
| Rating | Description |
|---|---|
| Amperage | The maximum current the breaker can handle, which is 25 amperes for a 25 Amp Breaker. |
| Voltage | The maximum voltage the breaker can safely interrupt, typically 120⁄240 volts for residential applications. |
| Interrupting Capacity | The maximum short-circuit current the breaker can safely interrupt, usually measured in kiloamperes (kA). |
Comparing a 25 Amp Breaker with Other Breakers
When choosing a circuit breaker, it’s essential to compare different types to ensure you select the right one for your needs. Here’s a comparison of a 25 Amp Breaker with other common breakers:
| Breaker Type | Amperage | Typical Applications |
|---|---|---|
| 15 Amp Breaker | 15 Amperes | Standard household circuits, lighting, and small appliances. |
| 20 Amp Breaker | 20 Amperes | Kitchen appliances, power tools, and general-purpose outlets. |
| 25 Amp Breaker | 25 Amperes | Large appliances, workshops, and commercial equipment. |
| 30 Amp Breaker | 30 Amperes | Electric ranges, dryers, and air conditioners. |
| 40 Amp Breaker | 40 Amperes | Electric water heaters, electric stoves, and large machinery. |
Each type of breaker has its specific use cases, and selecting the right one depends on the power requirements of your appliances and equipment.
Conclusion
A 25 Amp Breaker is a vital component in electrical systems, providing protection against overloads and short circuits. Understanding its applications, installation guidelines, and maintenance tips is essential for ensuring safety and efficiency. By following the steps outlined in this post, you can effectively manage a 25 Amp Breaker and maintain a reliable electrical setup. Regular inspections and adherence to safety precautions will help prolong the lifespan of your breaker and prevent potential hazards.
