Understanding the intricacies of a 240 Volt Outlet is crucial for anyone dealing with high-power electrical appliances. Whether you're a homeowner looking to install a new appliance or an electrician seeking to expand your knowledge, this guide will walk you through everything you need to know about 240 Volt Outlets.
What is a 240 Volt Outlet?
A 240 Volt Outlet is a type of electrical outlet designed to handle higher voltage and current than standard 120 Volt outlets. These outlets are commonly used for large appliances such as electric dryers, ranges, and air conditioners. The higher voltage allows these appliances to operate more efficiently and effectively.
Types of 240 Volt Outlets
There are several types of 240 Volt Outlets, each designed for specific applications. The most common types include:
- NEMA 10-30: This outlet is often used for electric dryers and ranges. It has three prongs and is rated for 30 amps.
- NEMA 14-30: This is a four-prong outlet commonly used for electric dryers, ranges, and other high-power appliances. It is also rated for 30 amps.

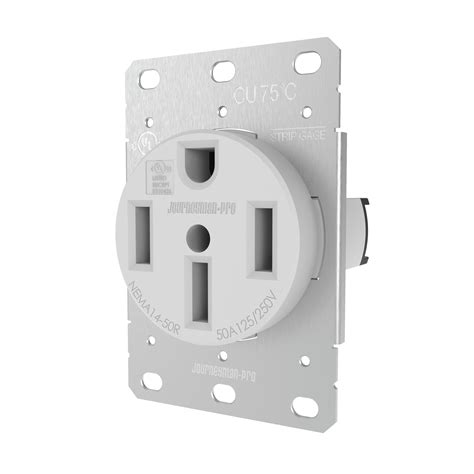

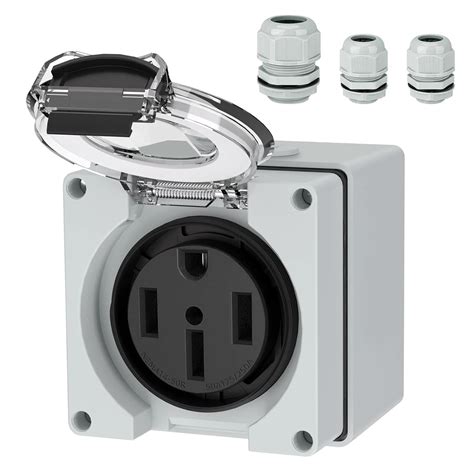

- NEMA 14-50: This outlet is often used for electric vehicle charging stations and large appliances. It has four prongs and is rated for 50 amps.

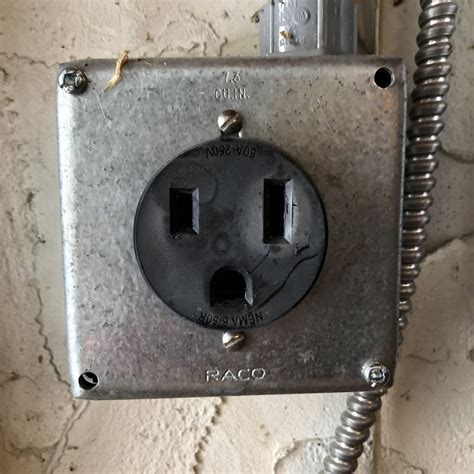

- NEMA 6-50: This is a three-prong outlet used for welding machines and other high-power tools. It is rated for 50 amps.
Identifying a 240 Volt Outlet
Identifying a 240 Volt Outlet can be straightforward if you know what to look for. Here are some key characteristics:
- Number of Prongs: 240 Volt Outlets typically have three or four prongs. The additional prongs are for the neutral and ground wires.
- Slot Configuration: The slots are usually arranged in a specific pattern. For example, a NEMA 14-30 outlet has two vertical slots and a horizontal slot below them.
- Labeling: Many 240 Volt Outlets are labeled with their voltage and amp rating. Look for labels such as “240V” or “30A” on the outlet.
Installing a 240 Volt Outlet
Installing a 240 Volt Outlet requires careful planning and adherence to electrical codes. Here are the steps to install a 240 Volt Outlet:
- Turn Off Power: Before beginning, turn off the power to the circuit at the main electrical panel.
- Run the Cable: Run a 10⁄3 or 8⁄3 cable from the electrical panel to the location of the new outlet. This cable should have two hot wires, a neutral wire, and a ground wire.
- Install the Outlet Box: Mount the outlet box to the wall or stud. Ensure it is securely fastened and level.

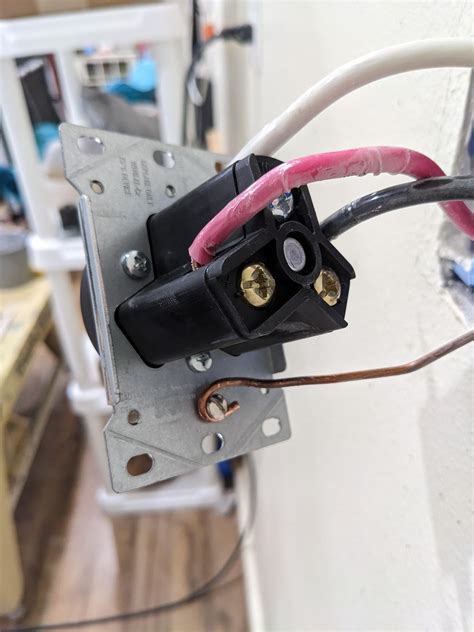

- Wire the Outlet: Connect the wires to the outlet according to the manufacturer’s instructions. Typically, the black and red wires are connected to the hot terminals, the white wire to the neutral terminal, and the bare or green wire to the ground terminal.

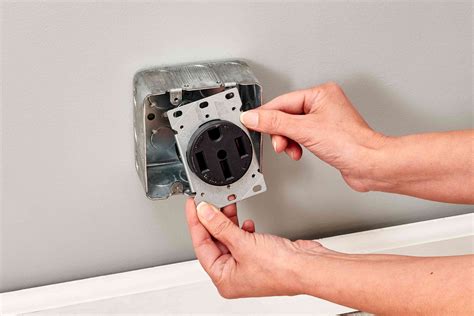

- Secure the Outlet: Attach the outlet to the box and secure it with screws.
- Test the Outlet: Turn the power back on and test the outlet with a voltage tester to ensure it is functioning correctly.
🛠️ Note: Always follow local electrical codes and regulations when installing a 240 Volt Outlet. If you are not comfortable with electrical work, it is best to hire a licensed electrician.
Safety Precautions
Working with 240 Volt Outlets involves handling high voltages, which can be dangerous if not done correctly. Here are some safety precautions to keep in mind:
- Turn Off Power: Always turn off the power at the main electrical panel before working on any electrical components.
- Use Proper Tools: Use insulated tools designed for electrical work to minimize the risk of shock.
- Wear Protective Gear: Wear safety glasses and gloves to protect yourself from electrical hazards.
- Follow Codes and Regulations: Ensure that all installations comply with local electrical codes and regulations.
Common Applications of 240 Volt Outlets
240 Volt Outlets are essential for a variety of high-power appliances and equipment. Some common applications include:
- Electric Dryers: These appliances require a dedicated 240 Volt Outlet to operate efficiently.
- Electric Ranges: Similar to dryers, electric ranges need a 240 Volt Outlet to function properly.
- Air Conditioners: Large air conditioning units often require a 240 Volt Outlet to handle the high power demand.
- Electric Vehicle Charging Stations: These stations use 240 Volt Outlets to charge electric vehicles quickly and efficiently.
- Welding Machines: High-power welding machines often require a 240 Volt Outlet to operate.
Troubleshooting 240 Volt Outlets
If you encounter issues with a 240 Volt Outlet, there are several steps you can take to troubleshoot the problem:
- Check the Circuit Breaker: Ensure that the circuit breaker for the outlet is not tripped. If it is, reset it and see if the outlet works.
- Inspect the Outlet: Look for any visible damage or loose connections. Tighten any loose wires and replace the outlet if necessary.

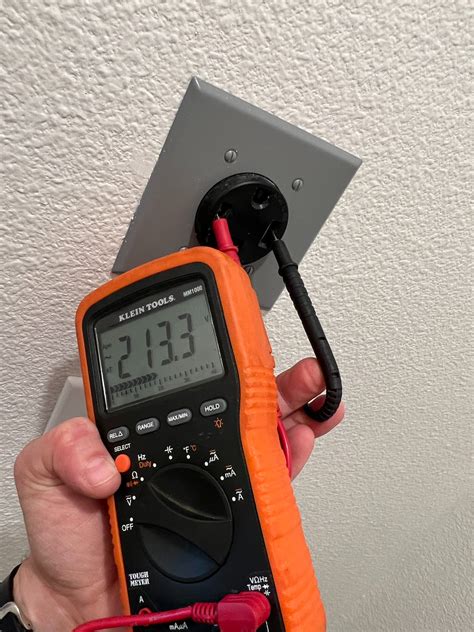

- Test the Outlet: Use a voltage tester to check if the outlet is receiving power. If not, there may be an issue with the wiring or the circuit breaker.
- Check the Appliance: Ensure that the appliance you are trying to use is compatible with the outlet and is functioning correctly.
🛠️ Note: If you are unsure about any aspect of troubleshooting a 240 Volt Outlet, it is best to consult a licensed electrician.
Upgrading to a 240 Volt Outlet
If you need to upgrade to a 240 Volt Outlet, there are several factors to consider. Here are the steps to upgrade:
- Assess Your Needs: Determine the power requirements of the appliance you plan to use. Ensure that a 240 Volt Outlet is necessary.
- Check Your Electrical Panel: Ensure that your electrical panel has the capacity to handle the additional load. You may need to upgrade your panel or add a subpanel.
- Run New Wiring: Install new wiring from the electrical panel to the location of the new outlet. Use the appropriate gauge wire for the amp rating of the outlet.
- Install the Outlet: Follow the installation steps outlined earlier to install the new 240 Volt Outlet.
- Test the Outlet: Once installed, test the outlet to ensure it is functioning correctly.
🛠️ Note: Upgrading to a 240 Volt Outlet may require a permit and inspection by local authorities. Always follow local regulations and codes.
Comparing 240 Volt Outlets to 120 Volt Outlets
Understanding the differences between 240 Volt Outlets and 120 Volt outlets is essential for choosing the right outlet for your needs. Here is a comparison:
| Feature | 240 Volt Outlet | 120 Volt Outlet |
|---|---|---|
| Voltage | 240 Volts | 120 Volts |
| Common Applications | Electric dryers, ranges, air conditioners, welding machines | Lights, small appliances, electronics |
| Wiring | Requires two hot wires, a neutral wire, and a ground wire | Requires one hot wire, a neutral wire, and a ground wire |
| Safety | Higher risk due to higher voltage | Lower risk due to lower voltage |
Future Trends in 240 Volt Outlets
The demand for 240 Volt Outlets is expected to grow as more high-power appliances and electric vehicles enter the market. Some future trends to watch for include:
- Smart Outlets: 240 Volt Outlets with smart features that allow for remote control and monitoring.
- Solar Integration: Outlets designed to integrate with solar power systems for more efficient energy use.
- Enhanced Safety Features: Outlets with advanced safety features such as arc fault protection and ground fault protection.
As technology advances, 240 Volt Outlets will continue to evolve, offering more features and improved safety for users.
In conclusion, understanding 240 Volt Outlets is crucial for anyone dealing with high-power electrical appliances. From identifying the different types of outlets to installing and troubleshooting them, this guide has covered the essential aspects of 240 Volt Outlets. Whether you are a homeowner or an electrician, knowing how to work with these outlets safely and effectively is invaluable. Always prioritize safety and follow local electrical codes and regulations to ensure a successful and safe installation.
