Electrical systems are the backbone of modern homes and businesses, ensuring that power is distributed efficiently and safely. One critical component of these systems is the 200 Amp Breaker Panel. This panel is designed to handle high electrical loads, making it ideal for large homes, commercial buildings, and industrial facilities. Understanding the intricacies of a 200 Amp Breaker Panel is essential for anyone involved in electrical work, whether you're a professional electrician or a DIY enthusiast.
What is a 200 Amp Breaker Panel?
A 200 Amp Breaker Panel is an electrical distribution panel that can handle up to 200 amperes of electrical current. This type of panel is typically used in larger homes and commercial buildings where the electrical demand is high. The panel contains multiple circuit breakers, each protecting a specific circuit in the building. These breakers trip when they detect an overload or short circuit, preventing electrical fires and other hazards.

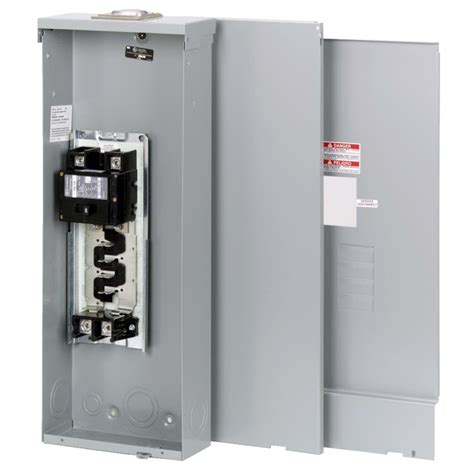

Components of a 200 Amp Breaker Panel
A 200 Amp Breaker Panel consists of several key components:
- Main Breaker: This is the primary circuit breaker that controls the entire panel. It can be turned off to cut power to the entire building.
- Circuit Breakers: These are individual breakers that protect specific circuits. They come in various sizes, typically ranging from 15 to 30 amperes.
- Bus Bars: These are metal strips that distribute power from the main breaker to the individual circuit breakers.
- Neutral Bar: This is where the neutral wires from each circuit are connected.
- Ground Bar: This is where the ground wires from each circuit are connected to ensure safety.
Benefits of a 200 Amp Breaker Panel
There are several advantages to using a 200 Amp Breaker Panel:
- High Capacity: A 200 Amp Breaker Panel can handle a significant amount of electrical current, making it suitable for large homes and commercial buildings.
- Safety: The panel includes multiple circuit breakers that protect individual circuits, reducing the risk of electrical fires and other hazards.
- Flexibility: The panel can be easily expanded by adding more circuit breakers, allowing for future electrical needs.
- Efficiency: A 200 Amp Breaker Panel ensures that power is distributed efficiently, reducing the risk of power outages and ensuring that all electrical devices function properly.
Installation of a 200 Amp Breaker Panel
Installing a 200 Amp Breaker Panel is a complex task that should be performed by a licensed electrician. However, understanding the basic steps can be helpful:
- Turn Off Power: Before beginning any electrical work, turn off the power to the building at the main service panel.
- Remove Old Panel: If replacing an existing panel, carefully remove the old panel and disconnect all wires.
- Install New Panel: Mount the new 200 Amp Breaker Panel in the desired location, ensuring it is securely fastened.
- Connect Wires: Connect the main power wires to the panel, following the manufacturer's instructions. This typically involves connecting the hot, neutral, and ground wires.
- Install Circuit Breakers: Install the individual circuit breakers in the panel, ensuring they are properly connected to the bus bars.
- Test the Panel: Once all connections are made, turn on the power and test each circuit breaker to ensure they are functioning correctly.
🛠️ Note: Always follow local electrical codes and regulations when installing a 200 Amp Breaker Panel. Improper installation can lead to serious electrical hazards.
Maintenance of a 200 Amp Breaker Panel
Regular maintenance of a 200 Amp Breaker Panel is essential to ensure its longevity and safety. Here are some key maintenance tasks:
- Inspect Breakers: Regularly inspect the circuit breakers for any signs of wear or damage. Replace any breakers that are not functioning properly.
- Check Connections: Ensure that all wire connections are tight and secure. Loose connections can cause overheating and electrical fires.
- Clean the Panel: Keep the panel clean and free of dust and debris. This helps to prevent overheating and ensures proper ventilation.
- Test the Panel: Periodically test the panel by tripping each circuit breaker and resetting it. This ensures that the breakers are functioning correctly.
Common Issues with a 200 Amp Breaker Panel
Despite their reliability, 200 Amp Breaker Panels can encounter issues. Some common problems include:
- Overloaded Circuits: If too many devices are connected to a single circuit, it can cause the breaker to trip frequently.
- Short Circuits: A short circuit occurs when a hot wire comes into contact with a neutral or ground wire, causing a spark and potentially a fire.
- Faulty Breakers: Over time, circuit breakers can become faulty and fail to trip when needed. This can lead to overheating and electrical fires.
- Corrosion: Moisture and humidity can cause corrosion in the panel, leading to poor connections and electrical hazards.
If you encounter any of these issues, it is important to address them promptly to ensure the safety of your electrical system.
Upgrading to a 200 Amp Breaker Panel
If your current electrical panel is not sufficient for your needs, upgrading to a 200 Amp Breaker Panel can provide several benefits. Here are some signs that you may need an upgrade:
- Frequent Tripping: If your circuit breakers trip frequently, it may be a sign that your panel is overloaded.
- Old Panel: Older panels may not be able to handle the electrical demands of modern appliances and devices.
- Expansion Plans: If you plan to add new electrical devices or expand your living space, a 200 Amp Breaker Panel can provide the necessary capacity.
- Safety Concerns: Older panels may not meet current safety standards, making an upgrade necessary for safety reasons.
When upgrading to a 200 Amp Breaker Panel, it is important to hire a licensed electrician to ensure the work is done correctly and safely.
Cost Considerations
The cost of installing a 200 Amp Breaker Panel can vary depending on several factors, including the size of the panel, the complexity of the installation, and local labor costs. Here is a breakdown of the typical costs involved:
| Item | Cost Range |
|---|---|
| Panel | $200 - $500 |
| Circuit Breakers | $50 - $200 |
| Labor | $500 - $2,000 |
| Permits | $50 - $200 |
| Total | $800 - $2,900 |
It is important to get multiple quotes from licensed electricians to ensure you are getting a fair price. Additionally, consider the long-term benefits of a 200 Amp Breaker Panel, such as increased safety and efficiency, when evaluating the cost.
💡 Note: The cost of upgrading to a 200 Amp Breaker Panel can vary significantly based on your location and the specific requirements of your electrical system. Always get a detailed estimate from a licensed electrician.
Safety Tips for Working with a 200 Amp Breaker Panel
Working with a 200 Amp Breaker Panel can be dangerous if proper safety precautions are not taken. Here are some important safety tips:
- Turn Off Power: Always turn off the power to the panel before performing any work. Use a non-contact voltage tester to ensure the power is off.
- Wear Protective Gear: Wear appropriate protective gear, including insulated gloves and safety glasses, to protect yourself from electrical hazards.
- Follow Instructions: Always follow the manufacturer's instructions when installing or maintaining the panel. Improper installation can lead to serious electrical hazards.
- Avoid Water: Keep the panel dry and free of moisture. Water and electricity do not mix, and moisture can cause short circuits and electrical fires.
- Hire a Professional: If you are not experienced with electrical work, it is best to hire a licensed electrician to perform any work on the panel.
By following these safety tips, you can ensure that your work with a 200 Amp Breaker Panel is safe and effective.
In conclusion, a 200 Amp Breaker Panel is a crucial component of modern electrical systems, providing high capacity, safety, and flexibility. Understanding the components, benefits, installation, maintenance, and safety considerations of a 200 Amp Breaker Panel is essential for anyone involved in electrical work. Whether you are upgrading an existing panel or installing a new one, it is important to follow proper procedures and safety guidelines to ensure the longevity and safety of your electrical system. Regular maintenance and prompt addressing of any issues can help prevent electrical hazards and ensure that your 200 Amp Breaker Panel continues to function effectively for years to come.
