When it comes to automotive electrical systems, the 2 Gauge Battery Cable is a critical component that ensures the reliable transfer of power from the battery to various electrical components. Understanding the importance, types, and proper installation of a 2 Gauge Battery Cable can significantly enhance the performance and safety of your vehicle. This comprehensive guide will delve into the intricacies of 2 Gauge Battery Cables, providing you with the knowledge needed to make informed decisions and perform installations with confidence.
Understanding 2 Gauge Battery Cables

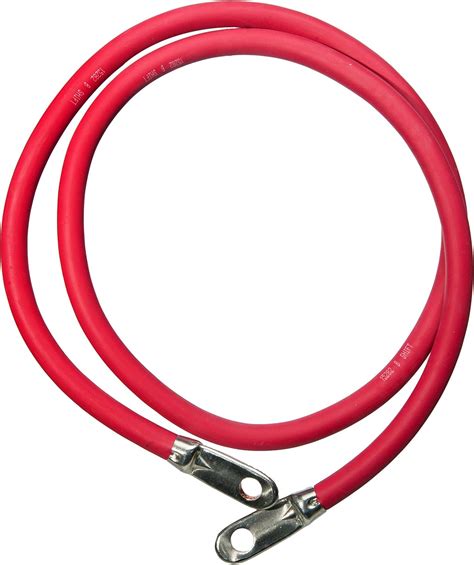

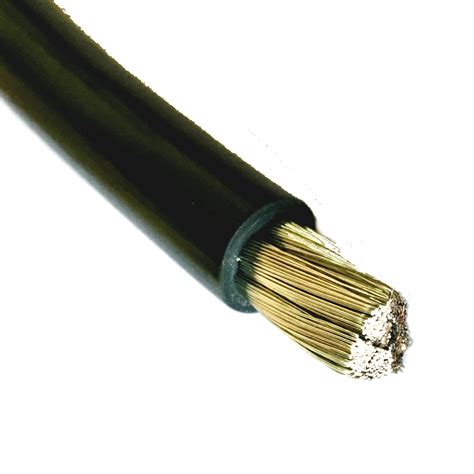

A 2 Gauge Battery Cable is a thick, insulated wire designed to handle high currents, typically used in automotive applications. The term "2 Gauge" refers to the American Wire Gauge (AWG) system, which measures the diameter of the wire. A 2 Gauge wire has a diameter of approximately 0.284 inches and can carry a significant amount of current, making it ideal for battery connections.
The primary function of a 2 Gauge Battery Cable is to connect the battery to the starter motor, alternator, and other high-current components. This ensures that the electrical system operates efficiently, providing the necessary power for starting the engine and running various accessories.
Types of 2 Gauge Battery Cables
2 Gauge Battery Cables come in various types, each suited for different applications and environments. The most common types include:
- Copper Clad Aluminum (CCA): These cables are made with an aluminum core wrapped in a thin layer of copper. They are lighter and more cost-effective than pure copper cables but have lower conductivity.

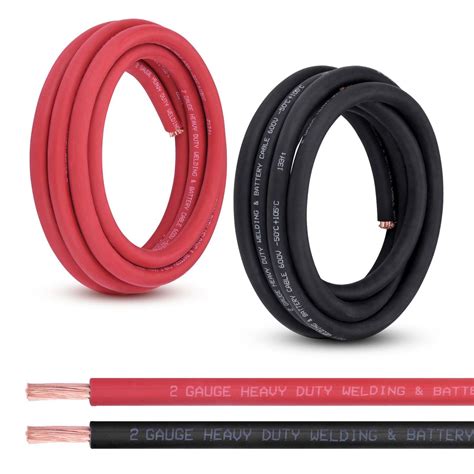

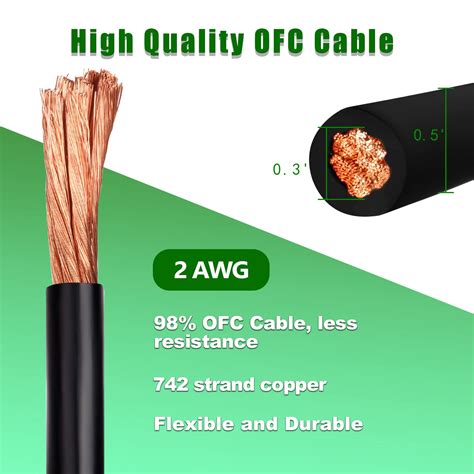

- Pure Copper: These cables are made entirely of copper, offering superior conductivity and durability. They are ideal for high-performance applications where reliability is crucial.
- Silicon Insulated: These cables feature a silicon insulation layer that provides excellent heat resistance and flexibility. They are commonly used in high-temperature environments.
- PVC Insulated: These cables have a polyvinyl chloride (PVC) insulation layer that offers good electrical insulation and durability. They are suitable for general automotive use.
Importance of Proper Installation
Proper installation of a 2 Gauge Battery Cable is essential for ensuring the safety and reliability of your vehicle's electrical system. Incorrect installation can lead to poor performance, overheating, and even electrical fires. Here are some key steps to follow for a successful installation:
Preparation
Before beginning the installation, gather all necessary tools and materials. This includes:
- 2 Gauge Battery Cable
- Crimping tool
- Wire strippers
- Safety glasses
- Gloves
- Battery terminal cleaner
Ensure that the vehicle is parked on a flat surface and the engine is turned off. Disconnect the negative terminal of the battery to prevent any electrical shorts.
Measuring and Cutting
Measure the length of the cable needed to connect the battery to the starter motor or alternator. Cut the cable to the appropriate length using a wire cutter. Ensure that the cut is clean and straight to avoid any fraying.
Stripping the Wire
Strip about 1 inch of insulation from both ends of the cable using wire strippers. Be careful not to nick the copper strands underneath. The exposed copper will be used to connect the cable to the battery terminals and other components.

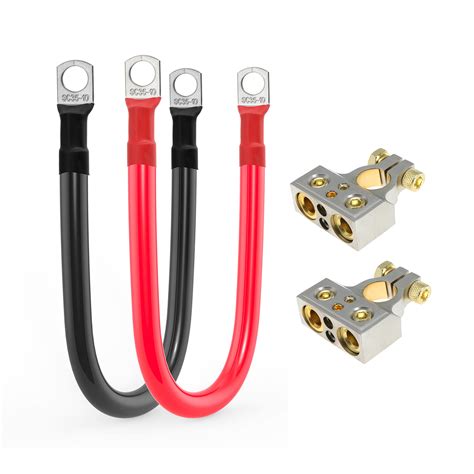

Crimping the Terminals

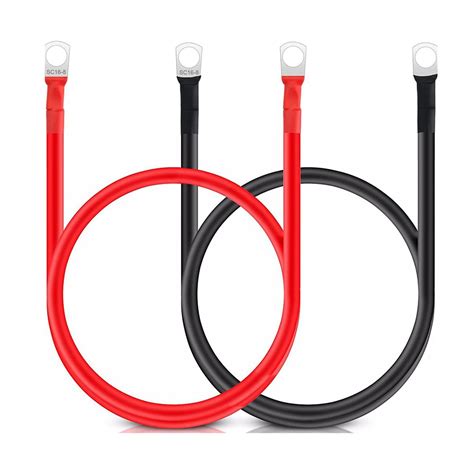

Attach the appropriate terminals to the stripped ends of the cable. Use a crimping tool to secure the terminals firmly. Ensure that the connection is tight and free of any loose strands.
🔧 Note: Always use high-quality terminals and crimping tools to ensure a secure and reliable connection.
Connecting the Cable
Connect one end of the cable to the positive terminal of the battery. Ensure that the connection is tight and secure. Repeat the process for the negative terminal, making sure to connect it to the appropriate ground point on the vehicle's chassis.
Securing the Cable
Use cable ties or clamps to secure the cable along its route, ensuring that it is not exposed to any moving parts or sharp edges. This will prevent damage to the cable and ensure a safe and reliable connection.
Testing the Connection
Reconnect the negative terminal of the battery and start the engine to test the connection. Ensure that the electrical system is functioning correctly and that there are no signs of overheating or electrical shorts.
⚠️ Note: Always double-check your connections and ensure that the cable is properly secured before starting the engine.
Maintenance and Troubleshooting
Regular maintenance of your 2 Gauge Battery Cable is essential for ensuring its longevity and reliability. Here are some tips for maintaining and troubleshooting your battery cable:
Maintenance Tips
- Inspect the cable regularly for any signs of wear, corrosion, or damage.
- Clean the battery terminals and cable ends with a battery terminal cleaner to remove any corrosion.
- Ensure that the cable is securely fastened and not exposed to any moving parts or sharp edges.
- Check the connections periodically to ensure they are tight and free of any loose strands.
Troubleshooting Common Issues
If you encounter any issues with your 2 Gauge Battery Cable, here are some common problems and their solutions:
| Problem | Solution |
|---|---|
| Poor Engine Starting | Check the connections for any loose or corroded terminals. Clean and tighten as necessary. |
| Overheating | Inspect the cable for any signs of damage or overheating. Replace the cable if necessary. |
| Electrical Shorts | Check for any exposed wires or damaged insulation. Repair or replace the cable as needed. |
| Intermittent Power Loss | Inspect the cable for any loose connections or damaged terminals. Secure and repair as necessary. |
By following these maintenance and troubleshooting tips, you can ensure that your 2 Gauge Battery Cable remains in optimal condition, providing reliable power to your vehicle's electrical system.
In conclusion, the 2 Gauge Battery Cable is a vital component in any automotive electrical system. Understanding its importance, types, and proper installation techniques can significantly enhance the performance and safety of your vehicle. Regular maintenance and troubleshooting will ensure that your battery cable remains reliable and efficient, providing the power needed for your vehicle’s electrical components. By following the guidelines outlined in this comprehensive guide, you can confidently install and maintain your 2 Gauge Battery Cable, ensuring a smooth and reliable driving experience.
