When it comes to setting up a high-quality audio system, the choice of wiring can significantly impact the overall performance. One of the most commonly used types of wiring for speakers is 16 AWG speaker wire. This wire is favored for its balance of conductivity and flexibility, making it an excellent choice for both home audio enthusiasts and professional installers. In this post, we will delve into the specifics of 16 AWG speaker wire, its applications, benefits, and how to properly install it.
Understanding AWG and Speaker Wire
Before diving into the specifics of 16 AWG speaker wire, it's essential to understand what AWG stands for. AWG, or American Wire Gauge, is a standardized system used to denote the diameter of round, solid, non-ferrous, electrically conducting wire. The lower the AWG number, the thicker the wire. For example, 16 AWG is thicker than 18 AWG but thinner than 14 AWG.
Speaker wire is typically used to connect speakers to an amplifier or receiver. The gauge of the wire affects its resistance and, consequently, the quality of the sound transmitted. Thicker wires generally offer lower resistance, which can result in better sound quality, especially over longer distances.
Benefits of Using 16 AWG Speaker Wire
There are several reasons why 16 AWG speaker wire is a popular choice among audio enthusiasts:
- Low Resistance: 16 AWG speaker wire has a lower resistance compared to thinner wires, which means it can handle more power without significant signal loss. This is particularly important for high-power audio systems.
- Flexibility: While thicker wires are more rigid, 16 AWG speaker wire offers a good balance between conductivity and flexibility, making it easier to route through walls and around obstacles.
- Durability: The thicker gauge of 16 AWG speaker wire makes it more durable and less prone to damage from bending or twisting.
- Cost-Effective: Compared to thicker wires like 14 AWG or 12 AWG, 16 AWG speaker wire is more affordable, making it a cost-effective choice for many audio setups.
Applications of 16 AWG Speaker Wire
16 AWG speaker wire is versatile and can be used in a variety of applications:
- Home Audio Systems: Ideal for connecting speakers to amplifiers or receivers in home theater setups.
- Car Audio Systems: Suitable for wiring speakers in vehicles, providing a good balance of power handling and flexibility.
- Professional Audio Installations: Used in studios and live sound setups where reliable and high-quality connections are essential.
- Outdoor Speakers: Can be used for outdoor audio systems, thanks to its durability and resistance to environmental factors.
Installing 16 AWG Speaker Wire
Installing 16 AWG speaker wire is a straightforward process, but it requires careful planning and execution to ensure optimal performance. Here are the steps to follow:
Materials Needed
- 16 AWG speaker wire
- Wire strippers
- Crimp connectors or banana plugs
- Crimping tool
- Screwdriver
- Tape measure
Step-by-Step Installation
1. Measure the Distance: Use a tape measure to determine the length of wire needed to connect your speakers to the amplifier or receiver. It's a good idea to add a few extra inches to account for any bends or turns.
2. Cut the Wire: Cut the 16 AWG speaker wire to the measured length using wire cutters.
3. Strip the Wire: Use wire strippers to remove about ½ inch of insulation from both ends of the wire. Be careful not to nick the conductors.
4. Attach Connectors: If you are using crimp connectors or banana plugs, attach them to the stripped ends of the wire. Use a crimping tool to ensure a secure connection.
5. Connect to Speakers: Connect one end of the wire to the positive (+) terminal of the speaker and the other end to the negative (-) terminal. Ensure the connections are secure and tight.
6. Connect to Amplifier: Connect the other end of the wire to the corresponding terminals on the amplifier or receiver. Again, ensure the connections are secure.
7. Test the System: Turn on the amplifier or receiver and test the speakers to ensure they are working correctly.
🔧 Note: Always double-check your connections to ensure they are secure and properly polarized. Loose or incorrect connections can lead to poor sound quality or even damage to your equipment.
Common Mistakes to Avoid
When installing 16 AWG speaker wire, there are a few common mistakes to avoid:
- Incorrect Wire Gauge: Using a wire gauge that is too thin can result in signal loss and poor sound quality. Always use the appropriate gauge for your specific application.
- Loose Connections: Loose connections can cause intermittent sound issues and potential damage to your equipment. Ensure all connections are tight and secure.
- Incorrect Polarity: Connecting the positive and negative terminals incorrectly can result in poor sound quality or no sound at all. Always double-check the polarity of your connections.
- Excessive Bending: Bending the wire too sharply can damage the conductors and affect the sound quality. Try to keep bends as gradual as possible.
Maintaining Your 16 AWG Speaker Wire
To ensure the longevity and performance of your 16 AWG speaker wire, follow these maintenance tips:
- Regular Inspections: Periodically inspect the wire for any signs of damage, such as fraying or corrosion. Replace any damaged sections promptly.
- Avoid Exposure to Heat: Keep the wire away from heat sources, as excessive heat can degrade the insulation and conductors.
- Protect from Moisture: If the wire is exposed to moisture, ensure it is properly insulated to prevent corrosion.
- Secure Connections: Regularly check the connections to ensure they remain tight and secure. Loose connections can lead to poor sound quality and potential damage.
By following these maintenance tips, you can extend the lifespan of your 16 AWG speaker wire and ensure optimal performance for your audio system.
In addition to the above, it's important to understand the specifications of your audio equipment. Different speakers and amplifiers have varying power handling capabilities and impedance ratings. Matching the wire gauge to these specifications can help you achieve the best possible sound quality.
For example, if you have high-power speakers with a low impedance rating, using 16 AWG speaker wire can help minimize signal loss and ensure that the speakers receive the full power output from the amplifier. Conversely, if you have low-power speakers with a high impedance rating, a thinner wire gauge might be sufficient.
Understanding the specifications of your equipment and choosing the appropriate wire gauge can make a significant difference in the overall performance of your audio system. Always refer to the manufacturer's guidelines for the best results.
When it comes to wiring your audio system, it's essential to consider the layout and placement of your speakers and amplifier. Proper planning can help you avoid common issues such as signal interference and poor sound quality.
For instance, if you are setting up a home theater system, you might want to place your speakers in specific locations to achieve the best surround sound experience. In this case, you would need to measure the distances accurately and ensure that the wire runs are as direct as possible to minimize signal loss.
Similarly, if you are installing an outdoor audio system, you might need to consider factors such as weather resistance and the potential for interference from other electronic devices. Using 16 AWG speaker wire with proper insulation can help protect the wire from environmental factors and ensure reliable performance.
In summary, 16 AWG speaker wire is a versatile and reliable choice for a wide range of audio applications. Its low resistance, flexibility, and durability make it an excellent option for both home and professional audio setups. By following the installation and maintenance tips outlined in this post, you can ensure optimal performance and longevity for your audio system.
When selecting 16 AWG speaker wire, it's also important to consider the type of insulation and jacket material. Different materials offer varying levels of protection and flexibility. For example, PVC (Polyvinyl Chloride) insulation is commonly used for its durability and resistance to heat and chemicals. However, for outdoor applications, you might want to consider wire with a more robust jacket material, such as polyethylene or rubber, to provide better protection against environmental factors.

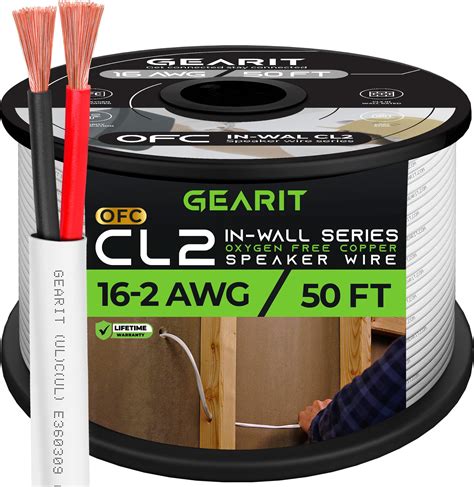

Additionally, some 16 AWG speaker wire comes with additional features, such as oxygen-free copper (OFC) conductors, which can provide better conductivity and sound quality. While these features might come at a higher cost, they can be worth the investment for audiophiles seeking the best possible performance.
When installing 16 AWG speaker wire**, it's crucial to follow best practices to ensure a clean and professional installation. This includes using high-quality connectors and ensuring that all connections are secure and properly polarized. Loose or incorrect connections can lead to poor sound quality and potential damage to your equipment.
For example, when using banana plugs, ensure that they are fully inserted into the connectors and that the wire is securely crimped. Similarly, when using spade connectors, ensure that the wire is properly stripped and that the connector is tightly secured to the terminal.
In addition to proper installation, it's essential to consider the overall layout and organization of your wiring. Keeping your wires neatly organized and labeled can help you troubleshoot any issues that may arise and make future maintenance easier. Using cable ties or clips to secure the wires and labeling each wire with its corresponding speaker or amplifier can be helpful in this regard.
Finally, it's important to test your audio system thoroughly after installation to ensure that everything is working correctly. Listen for any signs of distortion, interference, or poor sound quality, and address any issues promptly. Regular testing and maintenance can help you identify and resolve potential problems before they become more significant issues.
In conclusion, 16 AWG speaker wire is a reliable and versatile choice for a wide range of audio applications. Its low resistance, flexibility, and durability make it an excellent option for both home and professional audio setups. By following the installation and maintenance tips outlined in this post, you can ensure optimal performance and longevity for your audio system. Whether you are setting up a home theater, car audio system, or professional audio installation, 16 AWG speaker wire can help you achieve the best possible sound quality.
