Understanding the intricacies of electrical wiring is crucial for anyone involved in home improvement or electrical work. One of the most common wiring configurations is the 14 3 wire setup, which is widely used in residential and commercial settings. This type of wiring is essential for three-way and four-way switch configurations, allowing for flexible control of lighting from multiple locations. This blog post will delve into the specifics of 14 3 wire, its applications, and how to properly install and troubleshoot it.
What is 14 3 Wire?
The 14 3 wire refers to a type of electrical cable that contains three insulated conductors and a bare copper ground wire. The three insulated conductors are typically color-coded as black, red, and white. The black and red wires are hot wires, while the white wire is the neutral wire. The bare copper wire serves as the ground wire, providing a safe path for electrical current in case of a short circuit.
Components of 14 3 Wire
The 14 3 wire cable is composed of the following components:
- Black Wire: This is one of the hot wires and is used to carry the electrical current from the power source to the switch or device.
- Red Wire: This is the second hot wire and is often used in three-way and four-way switch configurations to provide power to the switch from a different location.
- White Wire: This is the neutral wire and completes the circuit by returning the electrical current to the power source.
- Bare Copper Wire: This is the ground wire and provides a safe path for electrical current in case of a short circuit, helping to prevent electrical shocks and fires.
Applications of 14 3 Wire
The 14 3 wire is commonly used in various electrical applications, including:
- Three-Way Switches: These switches allow you to control a single light fixture from two different locations. The 14 3 wire is essential for connecting the two switches and the light fixture.
- Four-Way Switches: These switches allow you to control a single light fixture from three or more locations. The 14 3 wire is used to connect the switches in a series, enabling multiple control points.
- Lighting Circuits: The 14 3 wire is often used in lighting circuits to provide power to multiple light fixtures from a single power source.
- Outlets and Switches: In some cases, the 14 3 wire is used to provide power to outlets and switches in a circuit, allowing for flexible wiring configurations.
Installing 14 3 Wire
Installing 14 3 wire requires careful planning and adherence to electrical codes. Here are the steps to properly install 14 3 wire for a three-way switch configuration:
- Turn Off Power: Before beginning any electrical work, turn off the power to the circuit at the main electrical panel.
- Run the Wire: Run the 14 3 wire from the power source to the first switch location. Then, run another 14 3 wire from the first switch to the second switch location.
- Connect the Wires: At the first switch location, connect the black wire to the common terminal of the switch and the red wire to one of the traveler terminals. Connect the white wire to the white wire from the power source and cap it with a wire nut. Connect the bare copper wire to the ground terminal of the switch and the ground wire from the power source.
- Connect the Second Switch: At the second switch location, connect the black wire to the common terminal of the switch and the red wire to the other traveler terminal. Connect the white wire to the white wire from the first switch and cap it with a wire nut. Connect the bare copper wire to the ground terminal of the switch and the ground wire from the first switch.
- Connect the Light Fixture: Run a 14 2 wire from the second switch to the light fixture. Connect the black wire to the hot terminal of the light fixture and the white wire to the neutral terminal. Connect the bare copper wire to the ground terminal of the light fixture.
- Test the Circuit: Turn the power back on and test the switches to ensure they are working correctly.
🔧 Note: Always follow local electrical codes and regulations when installing electrical wiring. If you are unsure about any aspect of the installation, consult a licensed electrician.
Troubleshooting 14 3 Wire
If you encounter issues with your 14 3 wire installation, here are some common troubleshooting steps:
- Check Connections: Ensure that all wire connections are secure and properly tightened. Loose connections can cause intermittent power issues.
- Verify Wire Colors: Double-check that the wire colors are correctly connected to the appropriate terminals on the switches and light fixtures.
- Test for Continuity: Use a multimeter to test for continuity between the wires. This can help identify any breaks or shorts in the wiring.
- Inspect for Damage: Look for any signs of damage to the wires, such as frayed insulation or exposed conductors. Replace any damaged wires as needed.
- Check the Circuit Breaker: Ensure that the circuit breaker for the circuit is not tripped. If it is, reset it and see if the issue persists.
🛠️ Note: If you are unable to resolve the issue, it is best to consult a licensed electrician to avoid potential hazards.
Safety Precautions
Working with electrical wiring can be dangerous if proper safety precautions are not followed. Here are some important safety tips to keep in mind:
- Turn Off Power: Always turn off the power to the circuit at the main electrical panel before beginning any electrical work.
- Use Proper Tools: Use insulated tools designed for electrical work to minimize the risk of electrical shock.
- Wear Protective Gear: Wear safety glasses and gloves to protect yourself from potential hazards.
- Follow Electrical Codes: Adhere to local electrical codes and regulations to ensure a safe and compliant installation.
- Avoid Overloading Circuits: Do not overload circuits with too many devices or appliances, as this can cause overheating and potential fires.
⚠️ Note: Electrical work should only be performed by individuals with the necessary knowledge and experience. If you are unsure about any aspect of the work, consult a licensed electrician.
Common Mistakes to Avoid
When working with 14 3 wire, there are several common mistakes that can lead to issues. Here are some mistakes to avoid:
- Incorrect Wire Connections: Ensure that the wires are connected to the correct terminals on the switches and light fixtures. Incorrect connections can cause the switches to malfunction.
- Improper Wire Stripping: Strip the insulation from the wires carefully to avoid damaging the conductors. Over-stripping can lead to loose connections and potential shorts.
- Ignoring Ground Wires: Always connect the ground wires to the ground terminals on the switches and light fixtures. Grounding is essential for safety and proper circuit operation.
- Using Damaged Wires: Inspect the wires for any signs of damage before installation. Replace any damaged wires to ensure a safe and reliable connection.
- Not Testing the Circuit: After completing the installation, test the circuit to ensure that the switches and light fixtures are working correctly. This can help identify any issues early on.
🛑 Note: Avoid shortcuts and ensure that all steps are followed carefully to prevent potential hazards and ensure a safe installation.
Understanding Three-Way and Four-Way Switches
Three-way and four-way switches are commonly used in conjunction with 14 3 wire to provide flexible control of lighting from multiple locations. Here’s a brief overview of how these switches work:
Three-Way Switches
A three-way switch allows you to control a single light fixture from two different locations. The 14 3 wire is used to connect the two switches and the light fixture. The switches have three terminals: a common terminal and two traveler terminals. The common terminal is connected to the hot wire from the power source, while the traveler terminals are connected to the traveler wires that run between the two switches.
Four-Way Switches
A four-way switch allows you to control a single light fixture from three or more locations. The 14 3 wire is used to connect the switches in a series, enabling multiple control points. Four-way switches have four terminals: two pairs of traveler terminals. The traveler wires from the three-way switches are connected to the traveler terminals on the four-way switch, allowing for flexible control of the light fixture.
Wiring Diagrams

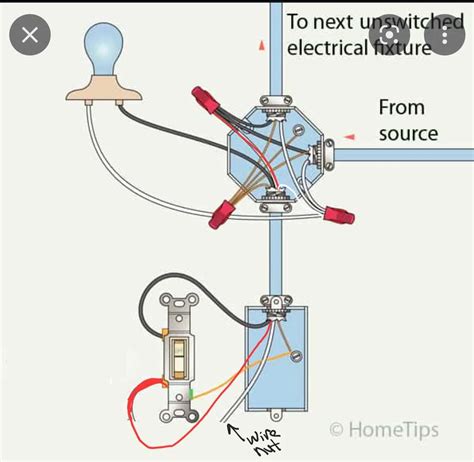

Understanding wiring diagrams is crucial for properly installing 14 3 wire and switches. Here are some common wiring diagrams for three-way and four-way switch configurations:
Three-Way Switch Wiring Diagram
| Wire Color | Connection |
|---|---|
| Black | Common terminal of the first switch |
| Red | Traveler terminal of the first switch |
| White | Neutral wire from the power source |
| Bare Copper | Ground terminal of the first switch |
| Black | Common terminal of the second switch |
| Red | Traveler terminal of the second switch |
| White | Neutral wire from the first switch |
| Bare Copper | Ground terminal of the second switch |
Four-Way Switch Wiring Diagram
| Wire Color | Connection |
|---|---|
| Black | Traveler terminal of the first three-way switch |
| Red | Traveler terminal of the first three-way switch |
| Black | Traveler terminal of the four-way switch |
| Red | Traveler terminal of the four-way switch |
| Black | Traveler terminal of the second three-way switch |
| Red | Traveler terminal of the second three-way switch |
| White | Neutral wire from the power source |
| Bare Copper | Ground terminal of the switches |
📝 Note: Always refer to the manufacturer's instructions and local electrical codes when installing switches and wiring.
Conclusion
Understanding the 14 3 wire and its applications is essential for anyone involved in electrical work. This type of wiring is crucial for three-way and four-way switch configurations, allowing for flexible control of lighting from multiple locations. By following the proper installation and troubleshooting steps, you can ensure a safe and reliable electrical system. Always prioritize safety and adhere to local electrical codes to avoid potential hazards. With the right knowledge and tools, you can successfully install and maintain 14 3 wire in your electrical projects.
