Electrical wiring is a critical aspect of any construction or renovation project. One of the most commonly used types of electrical wiring is 12 3 Romex. This type of wiring is essential for both residential and commercial applications, providing a reliable and safe means of electrical distribution. Understanding the specifications, applications, and installation procedures of 12 3 Romex is crucial for ensuring the safety and efficiency of your electrical system.
Understanding 12 3 Romex

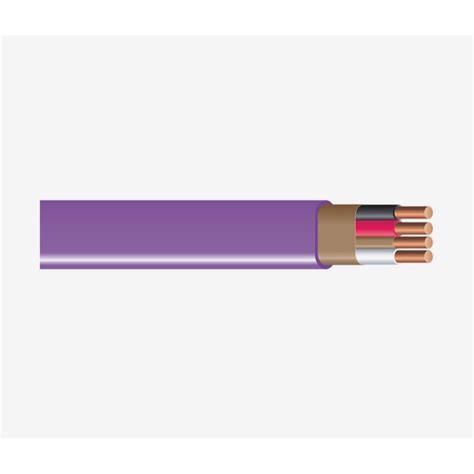

12 3 Romex is a type of non-metallic sheathed cable (NM cable) that consists of three insulated conductors and a bare ground wire. The "12" in 12 3 Romex refers to the American Wire Gauge (AWG) size of the conductors, which is 12 gauge. The "3" indicates that there are three insulated conductors plus a ground wire, making it a total of four wires. This configuration is commonly used for 240-volt circuits, such as those powering large appliances like electric ranges, dryers, and air conditioners.

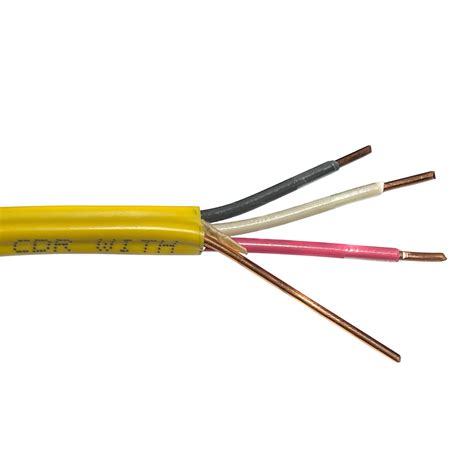

Components of 12 3 Romex
12 3 Romex typically includes the following components:
- Three Insulated Conductors: These are usually black, red, and white, each with a 12 AWG size.
- Ground Wire: This is a bare copper wire that provides a safe path for electrical current in case of a short circuit.
- Non-Metallic Sheathing: The outer jacket is made of a non-metallic material, typically PVC, which protects the conductors from physical damage and environmental factors.
Applications of 12 3 Romex
12 3 Romex is versatile and can be used in various applications, including:
- Residential Wiring: Commonly used for wiring circuits in homes, such as those for kitchen appliances, laundry rooms, and garages.
- Commercial Wiring: Suitable for powering equipment and machinery in commercial settings.
- Outdoor Wiring: Can be used for outdoor applications with proper protection and weatherproofing.
Installation Guidelines for 12 3 Romex
Installing 12 3 Romex requires careful planning and adherence to electrical codes and safety standards. Here are the key steps involved:
Planning and Preparation
Before beginning the installation, it is essential to:
- Determine the circuit requirements and load calculations.
- Obtain the necessary permits and ensure compliance with local electrical codes.
- Gather all required tools and materials, including 12 3 Romex, conduit, junction boxes, and electrical fittings.
Running the Cable
To run the 12 3 Romex cable, follow these steps:
- Measure and cut the cable to the required length.

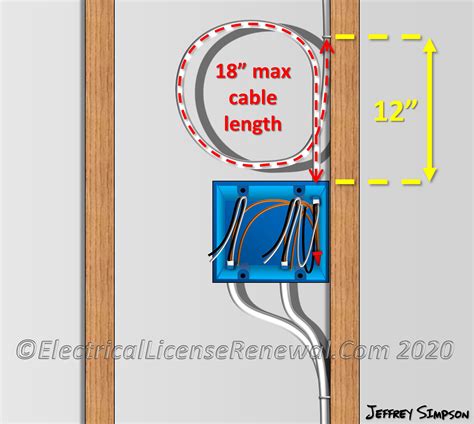

- Use cable staples or clips to secure the cable to the studs or joists at intervals not exceeding 1.5 feet.
- Ensure the cable is not damaged during installation and is protected from sharp edges and nails.

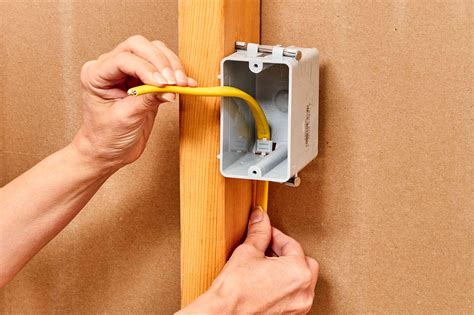

Connecting the Cable

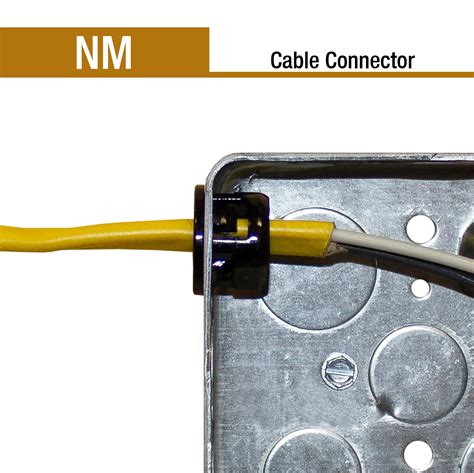

To connect the 12 3 Romex cable to electrical devices or junction boxes, follow these steps:

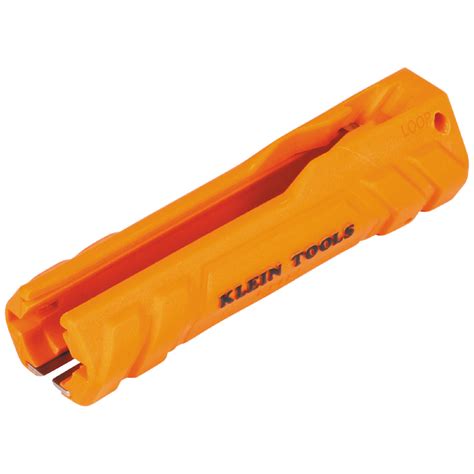

- Strip the outer sheathing of the cable to expose the insulated conductors and ground wire.
- Strip the insulation from the ends of the conductors to expose the bare wire.
- Connect the conductors to the appropriate terminals on the device or junction box using wire nuts or terminal screws.
- Ensure the ground wire is connected to the grounding terminal or ground bus.
🔧 Note: Always turn off the power at the circuit breaker before working on any electrical wiring to prevent the risk of electric shock.
Testing the Circuit
After completing the installation, it is crucial to test the circuit to ensure it is functioning correctly:
- Turn on the power at the circuit breaker.
- Use a voltage tester or multimeter to verify that the circuit is live and that all connections are secure.
- Check for any signs of overheating or short circuits.
🔧 Note: If any issues are detected during testing, immediately turn off the power and inspect the wiring for any faults or loose connections.
Safety Considerations
Working with electrical wiring, including 12 3 Romex, involves inherent risks. Here are some safety considerations to keep in mind:
- Use Proper Personal Protective Equipment (PPE): Wear insulated gloves, safety glasses, and other protective gear to minimize the risk of injury.
- Follow Electrical Codes: Adhere to local and national electrical codes, such as the National Electrical Code (NEC), to ensure safe and compliant installations.
- Avoid Overloading Circuits: Ensure that the circuit is not overloaded by exceeding the ampacity rating of the 12 3 Romex cable.
- Proper Grounding: Always connect the ground wire to a proper grounding system to provide a safe path for electrical current in case of a fault.
Common Mistakes to Avoid
When working with 12 3 Romex, it is essential to avoid common mistakes that can compromise the safety and efficiency of the electrical system. Some of these mistakes include:
- Improper Stripping: Stripping too much insulation from the conductors can lead to short circuits or poor connections.
- Incorrect Wire Nuts: Using the wrong size or type of wire nuts can result in loose connections and potential fire hazards.
- Overcrowded Junction Boxes: Filling a junction box with too many wires can cause overheating and increase the risk of electrical fires.
- Inadequate Support: Failing to secure the cable properly can lead to damage and potential hazards.
🔧 Note: Regularly inspect your electrical wiring for any signs of wear, damage, or loose connections to ensure ongoing safety and reliability.
Maintenance and Troubleshooting
Maintaining your electrical system and troubleshooting any issues promptly is crucial for ensuring its longevity and safety. Here are some tips for maintaining and troubleshooting 12 3 Romex wiring:
- Regular Inspections: Conduct regular inspections of your electrical wiring to check for any signs of damage, corrosion, or loose connections.
- Testing Equipment: Use a multimeter or voltage tester to check the continuity and voltage of the circuit.
- Replacing Damaged Cable: If you detect any damage to the 12 3 Romex cable, replace it immediately to prevent potential hazards.
- Professional Assistance: If you encounter complex issues or are unsure about any aspect of the wiring, consult a licensed electrician for professional assistance.
🔧 Note: Always prioritize safety when working with electrical wiring. If you are not confident in your abilities, seek the help of a qualified professional.
Conclusion
12 3 Romex is a versatile and reliable type of electrical wiring that is essential for various residential and commercial applications. Understanding its components, applications, and installation procedures is crucial for ensuring the safety and efficiency of your electrical system. By following proper installation guidelines, adhering to safety considerations, and conducting regular maintenance, you can ensure that your 12 3 Romex wiring remains in optimal condition. Always prioritize safety and seek professional assistance when needed to maintain a safe and reliable electrical system.
