When it comes to electrical wiring, choosing the right type and gauge of cable is crucial for ensuring safety and efficiency. One of the most commonly used cables in residential and light commercial applications is 12/2 Romex 250 Feet. This cable is a versatile and reliable choice for a variety of wiring needs, from lighting circuits to power outlets. In this post, we will delve into the specifics of 12/2 Romex 250 Feet, its applications, installation tips, and safety considerations.
Understanding 12/2 Romex 250 Feet
12/2 Romex 250 Feet refers to a type of non-metallic sheathed cable (NM-B) that contains two insulated conductors and a bare copper ground wire. The "12" indicates the gauge of the wire, which is 12 AWG (American Wire Gauge). The "2" signifies that there are two insulated conductors, typically black and white, which are used for the hot and neutral wires, respectively. The ground wire is usually bare or green.
This cable is designed to handle up to 20 amps of current, making it suitable for a wide range of applications. The 250-foot length provides ample cable for most residential and light commercial projects, reducing the need for multiple splices and connections.
Applications of 12/2 Romex 250 Feet
12/2 Romex 250 Feet is a versatile cable that can be used in various electrical wiring projects. Some of the most common applications include:
- Lighting Circuits: Ideal for wiring lighting fixtures in homes, offices, and commercial spaces.
- Power Outlets: Suitable for powering standard 120-volt outlets in residential and light commercial settings.
- Appliance Wiring: Can be used to wire small appliances and devices that require up to 20 amps of current.
- Renovations and Remodeling: Perfect for wiring new additions, renovations, and remodeling projects.
Installation Tips for 12/2 Romex 250 Feet
Proper installation of 12/2 Romex 250 Feet is essential for ensuring safety and compliance with electrical codes. Here are some key steps and tips for installing this cable:
Preparation
Before beginning the installation, gather all necessary tools and materials. This includes:
- 12/2 Romex 250 Feet cable
- Wire strippers
- Cable clamps
- Electrical tape
- Wire nuts
- Safety glasses
- Gloves
Ensure that the power is turned off at the circuit breaker before starting any electrical work.
Running the Cable
Run the 12/2 Romex 250 Feet cable through the walls, ceilings, or floors, depending on your project. Use cable clamps to secure the cable at regular intervals to prevent sagging and ensure proper support.
When running the cable through studs or joists, use a drill to create holes that are slightly larger than the cable diameter. This will make it easier to pull the cable through and reduce the risk of damaging the insulation.
Connecting the Cable
At the connection points, strip about ½ inch of insulation from the ends of the black and white wires using wire strippers. Twist the exposed copper strands together to create a solid connection.
Connect the black wire to the hot terminal and the white wire to the neutral terminal on the electrical device or outlet. Use wire nuts to secure the connections and wrap electrical tape around the wire nuts for added insulation.
Connect the bare or green ground wire to the ground terminal on the device or outlet. Ensure that the ground wire is securely fastened and properly insulated.
🔧 Note: Always follow local electrical codes and regulations when installing electrical wiring. If you are unsure about any aspect of the installation, consult a licensed electrician.
Safety Considerations
Working with electrical wiring can be dangerous if proper safety precautions are not taken. Here are some important safety considerations to keep in mind when using 12/2 Romex 250 Feet:
- Turn Off Power: Always turn off the power at the circuit breaker before beginning any electrical work.
- Use Proper Tools: Use insulated tools and wear safety glasses and gloves to protect yourself from electrical hazards.
- Avoid Overloading: Do not overload the circuit by connecting too many devices or appliances to a single outlet.
- Proper Grounding: Ensure that all electrical devices and outlets are properly grounded to prevent electrical shocks.
- Inspect Cable: Regularly inspect the cable for any signs of damage, such as frayed insulation or exposed wires. Replace any damaged cable immediately.
Common Mistakes to Avoid
When working with 12/2 Romex 250 Feet, it's important to avoid common mistakes that can compromise safety and functionality. Here are some pitfalls to watch out for:
- Incorrect Wire Gauge: Using the wrong wire gauge can lead to overheating and potential fires. Always use the correct gauge for your application.
- Improper Connections: Loose or improperly secured connections can cause arcing and sparking, leading to electrical hazards.
- Overloading Circuits: Connecting too many devices to a single circuit can overload it, causing tripped breakers or even fires.
- Ignoring Grounding: Proper grounding is crucial for safety. Always ensure that the ground wire is securely connected.
🛑 Note: If you encounter any issues or are unsure about any aspect of the installation, it is best to consult a licensed electrician to ensure safety and compliance with electrical codes.
Comparing 12/2 Romex with Other Cable Types
While 12/2 Romex 250 Feet is a popular choice for many electrical projects, it's important to understand how it compares to other cable types. Here is a comparison table to help you make an informed decision:
| Cable Type | Gauge | Conductors | Amperage Rating | Common Applications |
|---|---|---|---|---|
| 12/2 Romex | 12 AWG | 2 insulated + 1 ground | 20 amps | Lighting, outlets, small appliances |

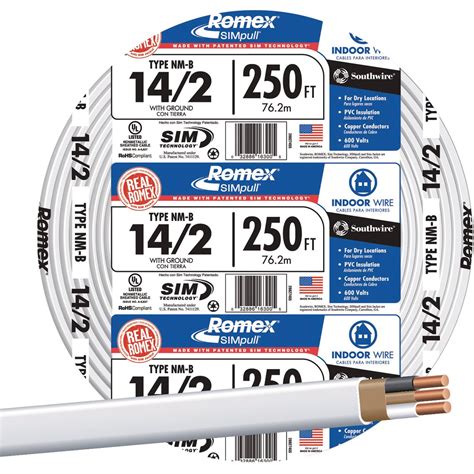

| 14/2 Romex | 14 AWG | 2 insulated + 1 ground | 15 amps | Lighting, outlets, small appliances |

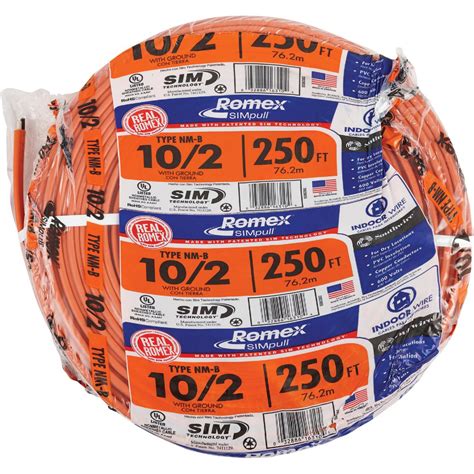

| 10/2 Romex | 10 AWG | 2 insulated + 1 ground | 30 amps | Heavy-duty appliances, HVAC systems |
| 12/3 Romex | 12 AWG | 3 insulated + 1 ground | 20 amps | Three-way switches, multi-wire branch circuits |
Each type of cable has its own advantages and is suited for different applications. Choosing the right cable depends on the specific requirements of your project.
Conclusion
12⁄2 Romex 250 Feet is a reliable and versatile cable that is widely used in residential and light commercial electrical wiring projects. Its 12 AWG gauge and 20-amp rating make it suitable for a variety of applications, from lighting circuits to power outlets. Proper installation and safety considerations are crucial for ensuring the longevity and safety of your electrical system. By following the guidelines and tips outlined in this post, you can confidently use 12⁄2 Romex 250 Feet for your wiring needs, ensuring a safe and efficient electrical setup.
