Electrical safety is paramount in any residential or commercial setting. One of the critical components in ensuring electrical safety is the proper use and understanding of circuit breakers. Among the various types of circuit breakers, the 100 Amp Breaker is particularly significant for its role in protecting high-power circuits. This blog post will delve into the intricacies of the 100 Amp Breaker, its applications, installation guidelines, and maintenance tips to ensure optimal performance and safety.
Understanding the 100 Amp Breaker

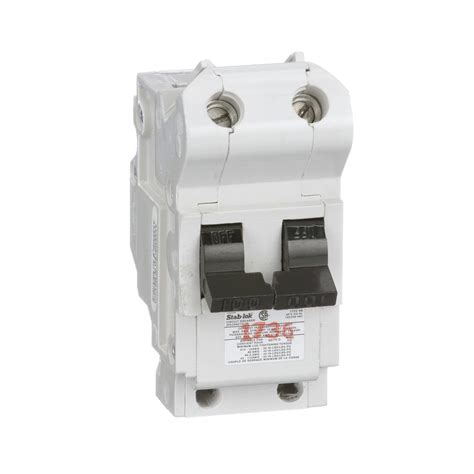

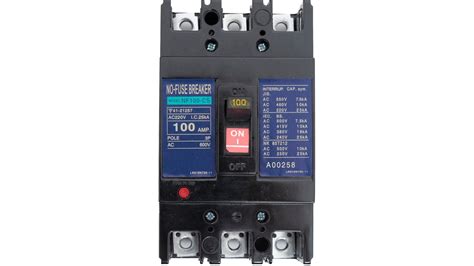

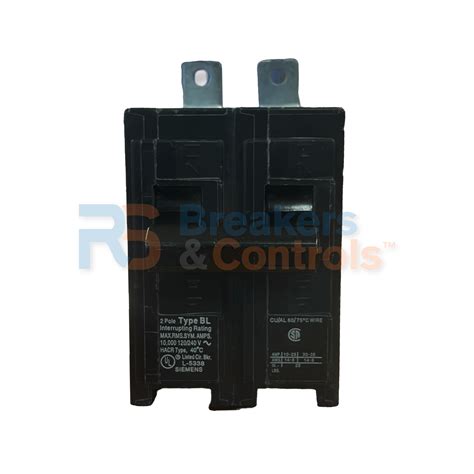

A 100 Amp Breaker is a type of circuit breaker designed to handle up to 100 amperes of electrical current. It is commonly used in residential and commercial settings to protect electrical circuits from overloads and short circuits. The primary function of a 100 Amp Breaker is to interrupt the electrical flow when the current exceeds the rated capacity, thereby preventing electrical fires and other hazards.
Applications of the 100 Amp Breaker
The 100 Amp Breaker is versatile and can be used in various applications. Some of the most common uses include:

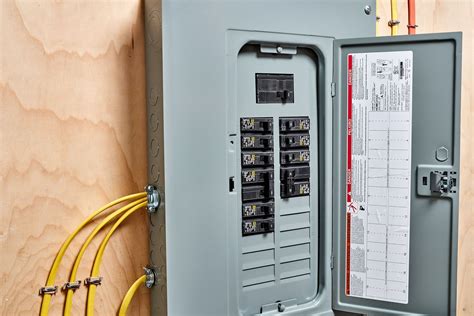

- Main Service Panel: Often used as the main breaker in residential and commercial electrical panels to protect the entire electrical system.
- Sub-Panels: Utilized in sub-panels to distribute power to specific areas or circuits within a building.
- High-Power Appliances: Protects circuits that power high-demand appliances such as electric ranges, air conditioners, and large machinery.
- Industrial Equipment: Used in industrial settings to safeguard heavy-duty equipment and machinery.
Installation Guidelines for the 100 Amp Breaker
Installing a 100 Amp Breaker requires careful planning and adherence to electrical codes. Here are the steps to ensure a safe and effective installation:
Preparation
Before beginning the installation, gather the necessary tools and materials:
- 100 Amp Breaker: Ensure it is compatible with your electrical panel.
- Wire Strippers: For stripping the insulation from wires.
- Screwdrivers: Both flathead and Phillips.
- Wire Nuts: For connecting wires.
- Electrical Tape: For securing connections.
Safety Precautions
Always prioritize safety when working with electrical components:
- Turn off the main power supply to the electrical panel.
- Use a non-contact voltage tester to ensure the circuit is dead.
- Wear appropriate personal protective equipment (PPE), including insulated gloves and safety glasses.
Installation Steps
Follow these steps to install the 100 Amp Breaker:
- Turn Off Power: Ensure the main power supply is turned off.
- Remove the Panel Cover: Carefully remove the cover of the electrical panel to access the circuit breakers.
- Identify the Slot: Determine the appropriate slot for the 100 Amp Breaker. It should be in a position that allows for easy access and proper wiring.
- Install the Breaker: Insert the 100 Amp Breaker into the designated slot. Ensure it is fully seated and secure.
- Connect the Wires: Strip the insulation from the wires and connect them to the appropriate terminals on the breaker. Use wire nuts to secure the connections and wrap with electrical tape for added safety.
- Test the Breaker: Turn the main power supply back on and test the 100 Amp Breaker to ensure it is functioning correctly.
- Replace the Panel Cover: Once the installation is complete, replace the panel cover and secure it in place.
🔧 Note: Always follow local electrical codes and regulations when installing a 100 Amp Breaker. If you are unsure about any aspect of the installation, consult a licensed electrician.
Maintenance Tips for the 100 Amp Breaker
Regular maintenance is essential to ensure the longevity and reliability of your 100 Amp Breaker. Here are some tips to keep your breaker in optimal condition:
- Inspect Regularly: Periodically inspect the breaker for any signs of wear, damage, or corrosion.
- Test the Breaker: Use a circuit tester to ensure the breaker is functioning correctly. Test it by simulating an overload to see if it trips as expected.
- Clean the Panel: Keep the electrical panel clean and free of debris. Dust and dirt can accumulate and affect the performance of the breaker.
- Check Connections: Ensure all wire connections are secure and free of corrosion. Loose or corroded connections can lead to overheating and potential fires.
- Replace When Necessary: If the breaker shows signs of significant wear or damage, replace it promptly to avoid electrical hazards.
Common Issues with the 100 Amp Breaker
Despite their reliability, 100 Amp Breakers can encounter issues over time. Here are some common problems and their potential solutions:
Frequent Tripping
If your 100 Amp Breaker trips frequently, it could be due to:
- Overloaded Circuit: Too many devices or appliances are drawing power from the circuit.
- Short Circuit: A short circuit in the wiring can cause the breaker to trip.
- Faulty Appliance: A malfunctioning appliance can draw excessive current, causing the breaker to trip.
To resolve frequent tripping, identify the cause and address it accordingly. This may involve redistributing the load, repairing the wiring, or replacing the faulty appliance.
Breaker Won't Reset
If the 100 Amp Breaker won't reset, it could indicate a more serious issue:
- Overheating: The breaker may be overheating due to a short circuit or overloaded circuit.
- Faulty Breaker: The breaker itself may be defective and need replacement.
To address this issue, turn off the main power supply, inspect the breaker and wiring for any signs of damage, and replace the breaker if necessary.
Burning Smell
A burning smell coming from the electrical panel is a serious indicator of a problem:
- Overheating: The breaker or wiring may be overheating, which can cause a burning smell.
- Short Circuit: A short circuit can generate heat and cause a burning smell.
If you detect a burning smell, immediately turn off the main power supply and contact a licensed electrician to inspect the panel and wiring.
⚠️ Note: Never ignore warning signs such as frequent tripping, a breaker that won't reset, or a burning smell. These issues can indicate serious electrical hazards and should be addressed promptly by a professional.
Conclusion
The 100 Amp Breaker is a crucial component in ensuring electrical safety and reliability. Understanding its applications, proper installation, and maintenance can help prevent electrical hazards and prolong the lifespan of your electrical system. By following the guidelines and tips outlined in this post, you can ensure that your 100 Amp Breaker operates efficiently and safely, providing peace of mind and protection for your electrical circuits.
