10/3 Mc Cable

In the realm of electrical wiring and cable management, the 10/3 MC cable stands out as a versatile and reliable choice for various applications. This type of cable is widely used in residential, commercial, and industrial settings due to its robust construction and efficient performance. Understanding the specifications, applications, and installation guidelines of the 10/3 MC cable is crucial for electricians and DIY enthusiasts alike.

Table of Contents

Understanding the 10/3 MC Cable

The 10/3 MC cable is a type of metal-clad cable that consists of three insulated conductors and a bare ground wire. The "10" in the designation refers to the American Wire Gauge (AWG) size of the conductors, which is 10 AWG. The "3" indicates that there are three insulated conductors, typically used for phase and neutral wires in electrical circuits. The "MC" stands for metal-clad, signifying that the cable is protected by a flexible metal armor.

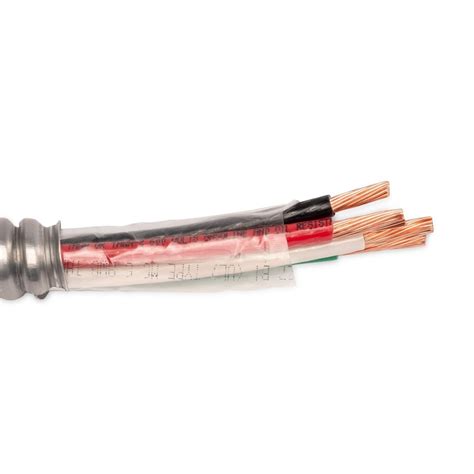

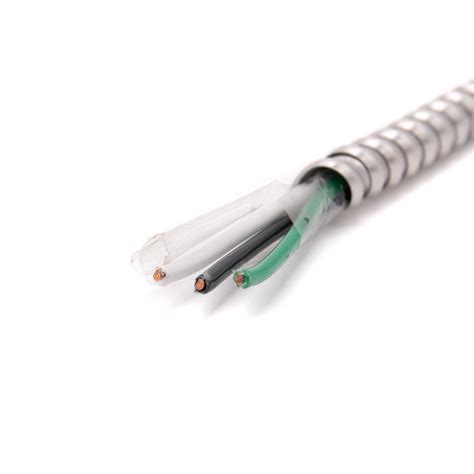

Components of the 10/3 MC Cable

The 10/3 MC cable is composed of several key components:

Conductors: Three insulated conductors, each with a 10 AWG size, and a bare ground wire.
Insulation: The conductors are insulated with a durable material, typically PVC or XLP, to prevent electrical shorts and ensure safety.
Metal Armor: The cable is enclosed in a flexible metal armor, usually made of aluminum or steel, which provides mechanical protection and grounding.
Ground Wire: A bare copper or aluminum wire that runs alongside the insulated conductors, providing a path for fault currents to return to the source.

Applications of the 10/3 MC Cable

The 10/3 MC cable is suitable for a wide range of applications, including:

Residential Wiring: Used in homes for branch circuits, such as lighting and outlet circuits.
Commercial Wiring: Ideal for office buildings, retail spaces, and other commercial settings where reliable power distribution is essential.
Industrial Wiring: Suitable for factories, warehouses, and other industrial environments where durability and protection against mechanical damage are crucial.
Outdoor Use: Can be used in outdoor applications with appropriate weatherproofing and conduit protection.

Installation Guidelines for the 10/3 MC Cable

Proper installation of the 10/3 MC cable is essential to ensure safety and compliance with electrical codes. Here are the key steps and considerations:

Preparation

Before beginning the installation, gather the necessary tools and materials:

10/3 MC cable
Cable connectors and fittings
Wire strippers
Cable cutters
Screwdrivers
Cable ties or straps
Electrical tape

Routing the Cable

Plan the route for the 10/3 MC cable, ensuring it follows the shortest and safest path to the destination. Avoid sharp bends and ensure the cable is not exposed to excessive heat or mechanical stress.

Connecting the Cable

Follow these steps to connect the 10/3 MC cable to electrical devices or junction boxes:

Cut the cable to the required length using cable cutters.
Strip the outer jacket of the cable to expose the insulated conductors and the ground wire.
Strip the insulation from the ends of the conductors and the ground wire, exposing about ½ inch of bare wire.
Connect the conductors to the appropriate terminals on the electrical device or junction box, ensuring proper polarity.
Connect the ground wire to the grounding terminal or grounding bus.
Secure the cable with cable ties or straps to prevent movement and ensure a neat installation.
Use electrical tape to insulate any exposed connections and prevent short circuits.

🔧 Note: Always follow local electrical codes and regulations when installing the 10/3 MC cable. Ensure that all connections are secure and properly insulated to prevent electrical hazards.

Safety Considerations

When working with the 10/3 MC cable, it is essential to prioritize safety. Here are some key safety considerations:

Turn Off Power: Always turn off the power at the circuit breaker before working on any electrical wiring.
Use Proper Tools: Use insulated tools designed for electrical work to minimize the risk of electric shock.
Avoid Overloading: Do not overload the circuit by connecting too many devices to the 10/3 MC cable.
Proper Grounding: Ensure that the ground wire is properly connected to prevent electrical faults and shocks.
Inspect for Damage: Regularly inspect the cable for any signs of damage, such as cuts, cracks, or exposed wires, and replace it if necessary.

Common Mistakes to Avoid

To ensure a safe and efficient installation, avoid these common mistakes when working with the 10/3 MC cable:

Incorrect Wire Gauge: Using the wrong wire gauge can lead to overheating and potential fires. Always use the correct 10 AWG conductors.
Improper Connections: Loose or improperly connected wires can cause arcing and electrical faults. Ensure all connections are secure and properly insulated.
Ignoring Grounding: Failing to connect the ground wire can result in electrical shocks and equipment damage. Always ground the cable properly.
Excessive Bending: Sharp bends can damage the cable and compromise its integrity. Route the cable carefully to avoid excessive bending.
Inadequate Support: Insufficient support can cause the cable to sag or move, leading to potential hazards. Use cable ties or straps to secure the cable along its route.

Maintenance and Troubleshooting

Regular maintenance and prompt troubleshooting are essential to ensure the longevity and reliability of the 10/3 MC cable. Here are some tips for maintaining and troubleshooting the cable:

Maintenance Tips

To keep the 10/3 MC cable in good condition, follow these maintenance tips:

Regular Inspections: Inspect the cable periodically for any signs of wear, damage, or corrosion.
Cleanliness: Keep the cable and its connections clean and free of debris to prevent electrical faults.
Proper Storage: Store any unused cable in a cool, dry place away from direct sunlight and heat sources.
Avoid Mechanical Stress: Protect the cable from mechanical stress, such as sharp objects or heavy equipment, to prevent damage.

Troubleshooting Common Issues

If you encounter issues with the 10/3 MC cable, follow these troubleshooting steps:

No Power: Check the circuit breaker and ensure it is not tripped. Inspect the cable for any breaks or loose connections.
Intermittent Power: Look for any damaged or corroded connections. Tighten or replace any loose or damaged connectors.
Overheating: Ensure the cable is not overloaded and that all connections are secure. Check for any signs of overheating, such as discoloration or melting.
Ground Faults: Inspect the ground wire for any breaks or loose connections. Ensure the ground wire is properly connected to the grounding terminal.

🛠️ Note: If you are unsure about any aspect of the installation, maintenance, or troubleshooting of the 10/3 MC cable, consult a licensed electrician to ensure safety and compliance with electrical codes.

Comparing 10/3 MC Cable with Other Cable Types

When choosing the right cable for your electrical needs, it's essential to compare the 10/3 MC cable with other cable types. Here is a comparison of the 10/3 MC cable with some commonly used cable types:

Cable Type	Conductors	Insulation	Protection	Applications
10/3 MC Cable	Three 10 AWG conductors + ground	PVC or XLP	Flexible metal armor	Residential, commercial, industrial wiring
10/2 NM-B Cable	Two 10 AWG conductors + ground	PVC	Non-metallic sheath	Residential wiring
10/3 SE Cable	Three 10 AWG conductors + ground	PVC or XLP	Service entrance cable	Service entrance wiring
10/3 UF-B Cable	Three 10 AWG conductors + ground	PVC	Underground feeder cable	Outdoor and underground wiring

The 10/3 MC cable offers robust protection and flexibility, making it suitable for a wide range of applications. However, the choice of cable depends on the specific requirements of your project, including the environment, load, and installation conditions.

In summary, the ¹⁰⁄₃ MC cable is a versatile and reliable choice for electrical wiring in various settings. Its robust construction, efficient performance, and ease of installation make it a popular choice among electricians and DIY enthusiasts. By understanding the specifications, applications, and installation guidelines of the ¹⁰⁄₃ MC cable, you can ensure a safe and efficient electrical system. Regular maintenance and prompt troubleshooting are essential to keep the cable in good condition and prevent potential hazards. Always prioritize safety and follow local electrical codes when working with the ¹⁰⁄₃ MC cable.
